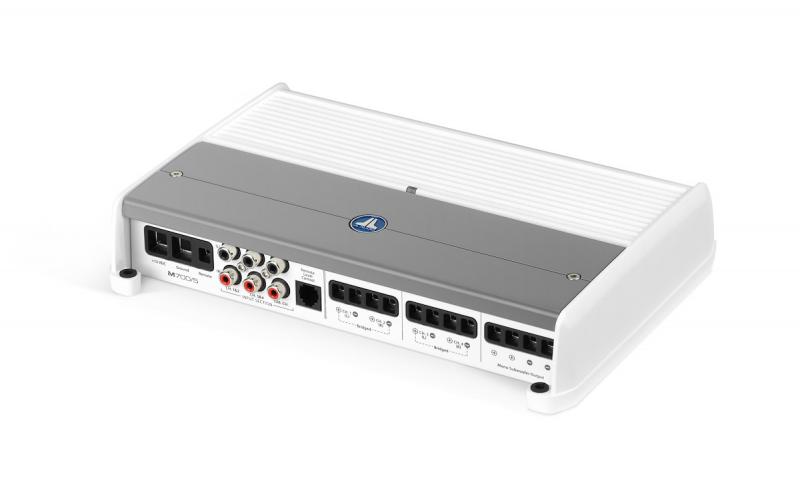

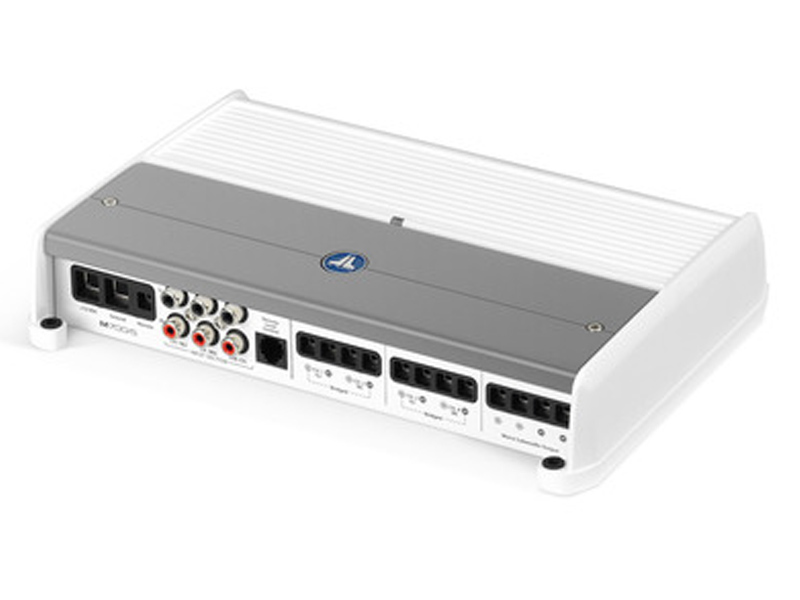

JL AUDIO M700/5

JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5


JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5
JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5
JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5
JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5
JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5
JL Audio 5 Ch. Class D Marine System Amplifier, 700 W - M700/5
Black Friday Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price $1,149.95 CAD
Availability
Schedule Delivery
Literature

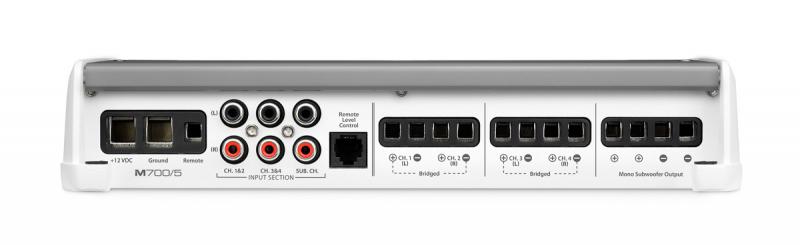

5-Channel Class D Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

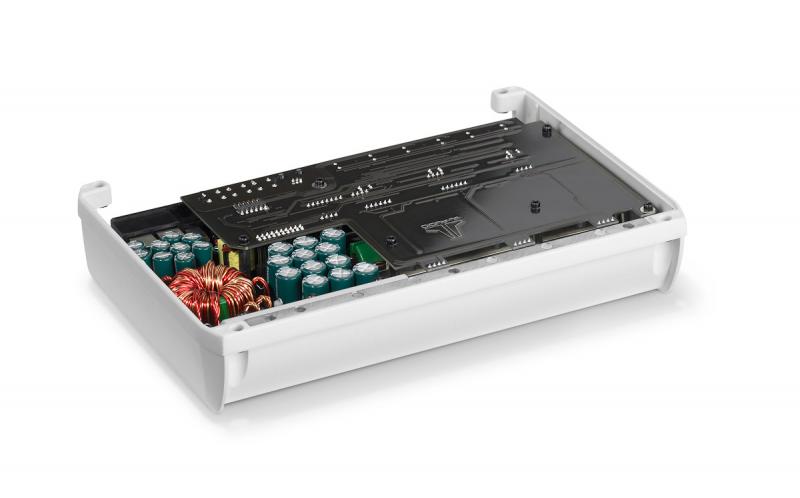

The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

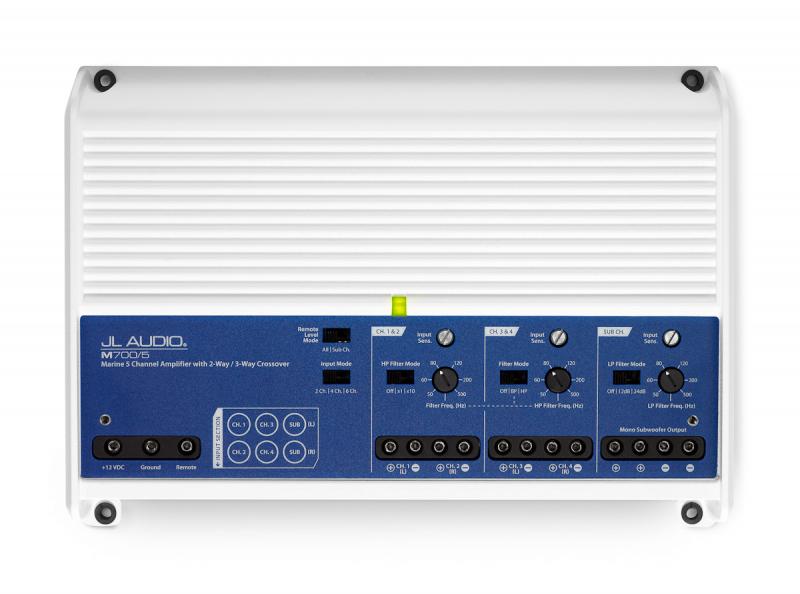

The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.

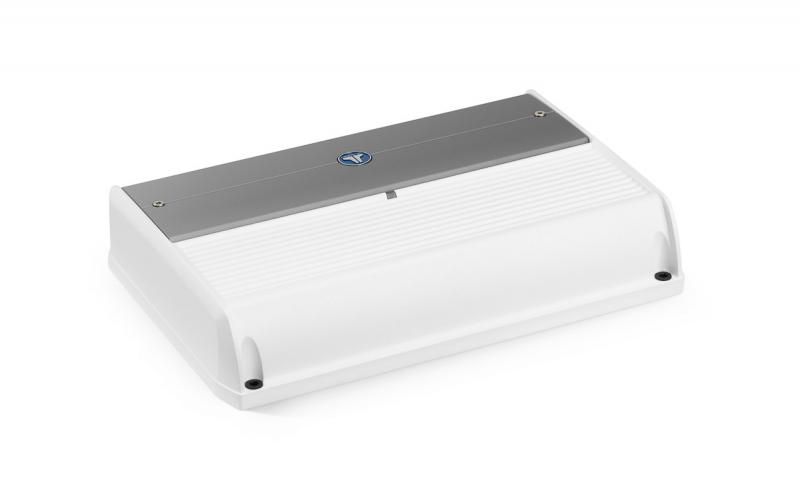

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Specification

Rated Continuous (RMS) Power @ 14.4 V

  • Main Channels @ 4 Ω : 75 W RMS x 4
  • Main Channels @ 2 Ω : 100 W RMS x 4
  • Main Channels - Bridged @ 4Ω : 200 W RMS x 2
  • Subwoofer Channel @ 4 Ω : 180 W RMS x 1
  • Subwoofer Channel @ 3 Ω : 240 W RMS x 1
  • Subwoofer Channel @ 2 Ω : 300 W RMS x 1
  • Subwoofer Channel @ 1.5 Ω : N/A

Rated Continuous (RMS) Power @ 12.5 V

  • Main Channels @ 4 Ω : 60 W RMS x 4
  • Main Channels @ 2 Ω : 90 W RMS x 4
  • Main Channels - Bridged @ 4Ω : 180 W RMS x 2
  • Subwoofer Channel @ 4 Ω : 180 W RMS x 1
  • Subwoofer Channel @ 3 Ω : 240 W RMS x 1
  • Subwoofer Channel @ 2 Ω : 300 W RMS x 1
  • Subwoofer Channel @ 1.5 Ω : N/A

General Specifications

  • Frequency Response (Main Channels) : 12 Hz - 22 kHz (+0, -1dB)
  • Frequency Response (Subwoofer Channel) : 10 Hz - 1 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Main Channels) : >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W : >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω : >150 / 50 Hz
  • Damping Factor @ 2 Ω : >75 / 50 Hz
  • THD+N @ Rated Power (Main Channels) : <1% @ 2 Ω per Ch.
  • THD+N @ Rated Power (Subwoofer Channels) : <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs : 100 mV - 4 V RMS
  • Min.Copper Power / Ground Wire Gauge : 4 AWG wire
  • Fuse Rating : 60 A (AFS, AGU or MaxiFuse™)

Signal Processing

  • Filter Mode(s): Channels 1 & 2 (front) : High-Pass only
  • Filter Slope(s): Channels 1 & 2 (front) : 12 dB/octave
  • Filter Frequency Range: Channels 1 & 2 (front) : 50 Hz - 5 kHz
  • Filter Mode(s): Channels 3 & 4 (rear) : High-Pass or Bandpass
  • Filter Slope(s): Channels 3 & 4 (rear) : 12 dB/octave
  • Filter Frequency Range: Channels 3 & 4 : 50 Hz - 500 Hz
  • Filter Mode(s): Subwoofer Channel : Low-Pass only
  • Filter Slope(s): Subwoofer Channel : 12/24 dB/octave
  • Filter Frequency Range: Subwoofer Channel : 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometers : Yes
  • Filter Defeat Function : Yes
  • Infrasonic Filter: Subwoofer Channel : none
  • Remote Level Control : Optional (HD-RLC)
  • Remote Level Modes : Sub Ch. or All Channels
  • Channel Input Mode Switch : Yes (2/4/6 ch.)
  • Pass-Through Preamp Output : None
  • Source Channel Selection for PreOuts : N/A

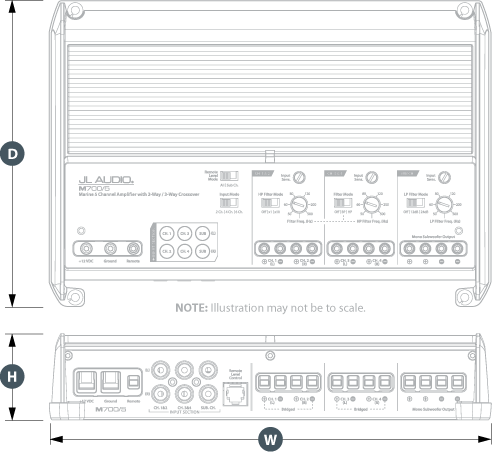

Physical Specifications

  • Height (H) : 2.05 in / 52 mm
  • Width (W) : 10.23 in / 260 mm
  • Depth (D) : 7.09 in / 180 mm
  • Net Weight : 6.15 lb / 2.79 kg
