JL AUDIO M800/8-24V

JL Audio 8 Ch. Class D Full-Range Marine Amplifier, 800 W - M800/8-24V

Authorized Dealer Price Match Guarantee

Price Match Guarantee

Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price

$1,489.95 CAD

QUOTE REQUEST

Availability
Schedule Delivery

M800/8-24V
Best Deal Promise

Literature

For 24V systems only:

8-Channel Class D Marine Full-Range Amplifier, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 28.8V

This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 watts to each of its eight channels into 2 ohms (28.8V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

Use it in one of many useful configurations:

The M800/8-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four, six, or all eight of the amplifier's channel levels from the driver's seat.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.

Specification

Rated Continuous (RMS) Power @ 28.8 V

@ 4 Ω : 75 W RMS x 8
@ 2 Ω : 100 W RMS x 8
Bridged @ 4Ω : 200 W RMS x 4

Rated Continuous (RMS) Power @ 25 V

@ 4 Ω : 60 W RMS x 8
@ 2 Ω : 90 W RMS x 8
Bridged @ 4Ω : 180 W RMS x 4

General Specifications

Frequency Response : 12 Hz - 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power : >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W : >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω : >150 / 50 Hz
Damping Factor @ 2 Ω : >75 / 50 Hz
THD+N @ Rated Power : <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs : Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge : 4 AWG wire
Fuse Rating : 40 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s) : Low-Pass or High-Pass
Filter Slope(s) : 12 dB/octave
Filter Frequency Range : 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers : Yes
Filter Defeat Function : Yes
Remote Level Control : Optional (HD-RLC)
Remote Level Modes : 2 or 4 or All Channels
Channel Input Mode Switch : Yes (2/4/6/8 ch.)
Pass-Through Preamp Output : None
Source Channel Selection for PreOuts : N/A

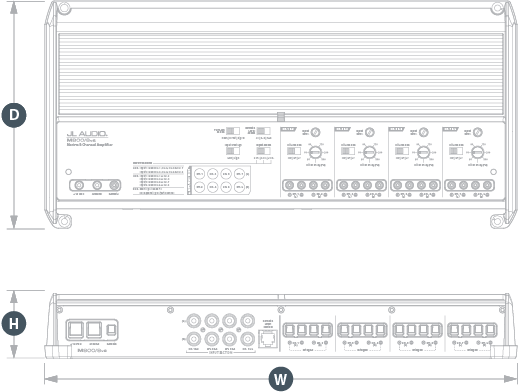

Physical Specifications

Height (H) : 2.05 in / 52 mm
Width (W) : 14.73 in / 374 mm
Depth (D) : 7.09 in / 180 mm
