| Price | $679.99 |
| Savings | $110.00 |
| Our Price |
$569.99 CAD
Sale Ends : April 30, 2025 On Sale
|
The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.
Overview
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
Technologies
Class BD
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

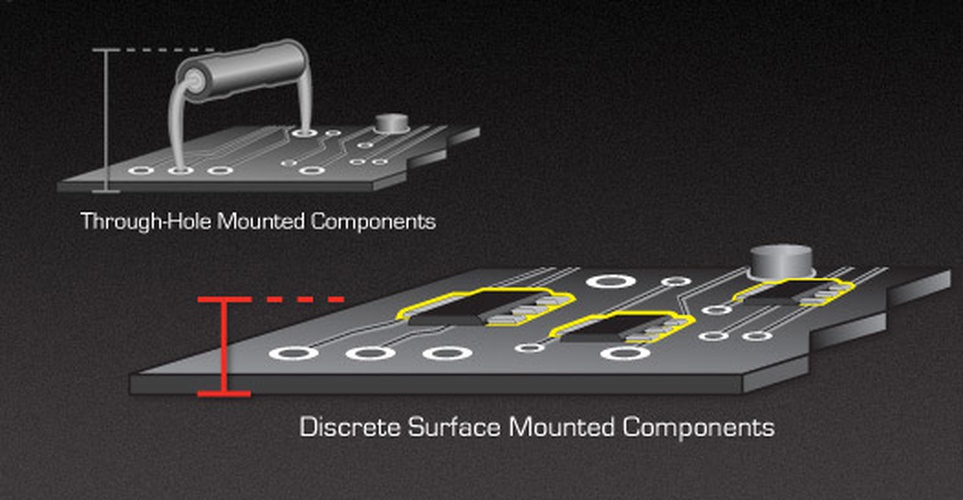

DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.

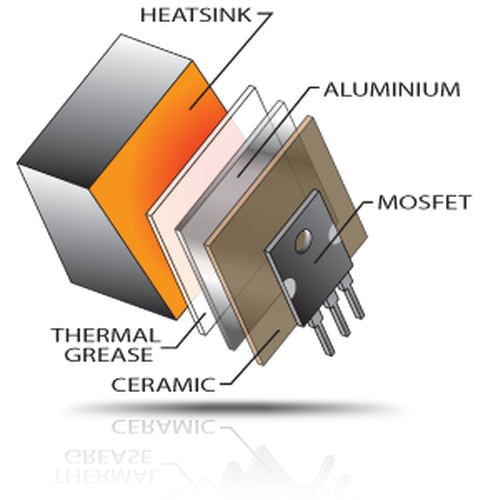

MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
| Specifications | |
|---|---|
| Number of Channels | 1 |
| Total Power (Sum of Rated Power) | 500 Watts |
| Rated Power (RMS Continuous Power) | 150 Watts x 1 @ 4-Ohm 300 Watts x 1 @ 2-Ohm 500 Watts x 1 @ 1-Ohm |
| Dynamic Power (PVC/PowerCube®) | 224 Watts x 1 @ 4-Ohm 410 Watts x 1 @ 2-Ohm 787 Watts x 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency Response | 20Hz to 250Hz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Circuit Topology Class | Class BD |
| Efficiency (average) | 86% @ 4-Ohm |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% 1-Ohm: <1.0% |
| Signal Input | Hi/Low level: 1 RCA pair |
| Signal Output | Low level: 1 RCA pair |
| Tone Controls | Punch EQ2 Bass: 0dB to +18dB @ 45Hz |
| Crossover Controls | Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth Infrasonic Filter (IF): 28Hz @ 12dB/Octave All-Pass (AP): No |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Power Wire Gauge | 4 AWG |
| Power Input Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Cooling | Convection |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse (not included) | 80 A |
| Average Current Draw (13.8V Music) | 35 A |
| Max. Current Draw (13.8V Sinewave) | 70 A |
| Suggested Alternator | 75 A |
| Dimensions (H x W x D) | 2.38 x 7.76 x 11.03 (in) 6.05 x 19.71 x 28.02 (cm) |
| Shipping Weight | 10.8 Lbs. (4.89 Kg.) |
