| Price | $669.99 |
| Savings | $130.00 |
| Our Price |
$539.99 CAD
Sale Ends : April 30, 2025 On Sale
|

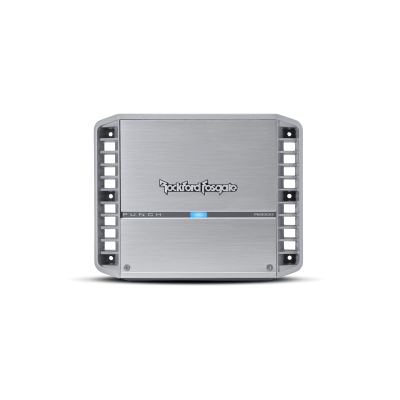

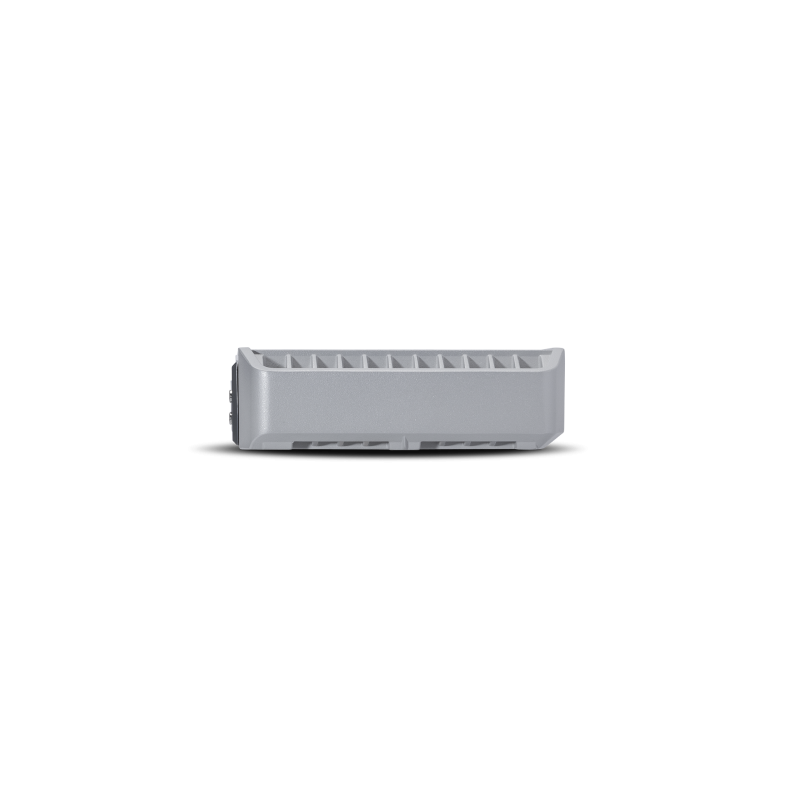

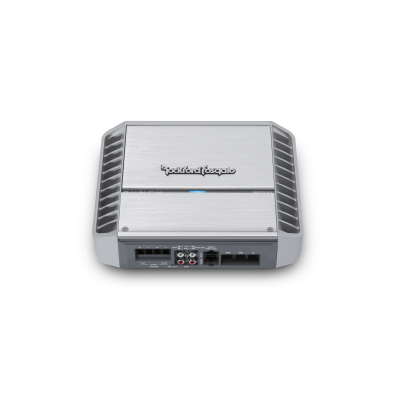

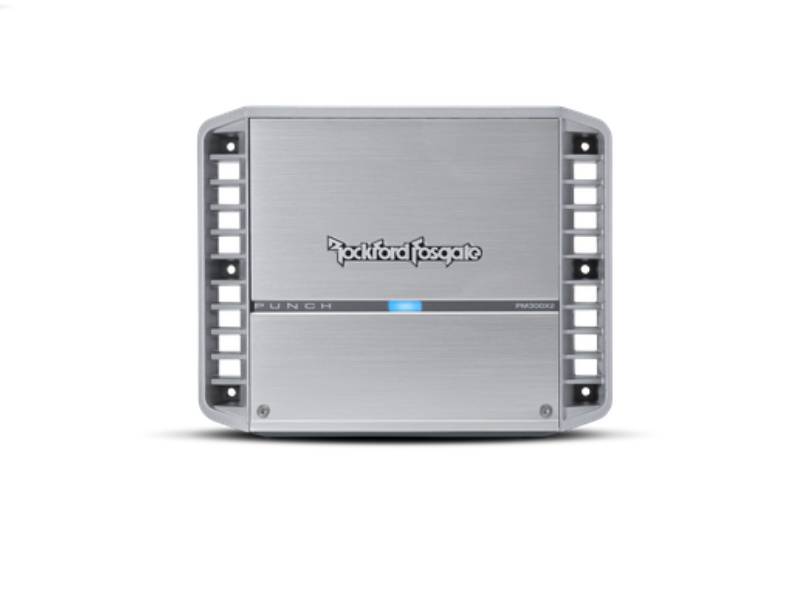

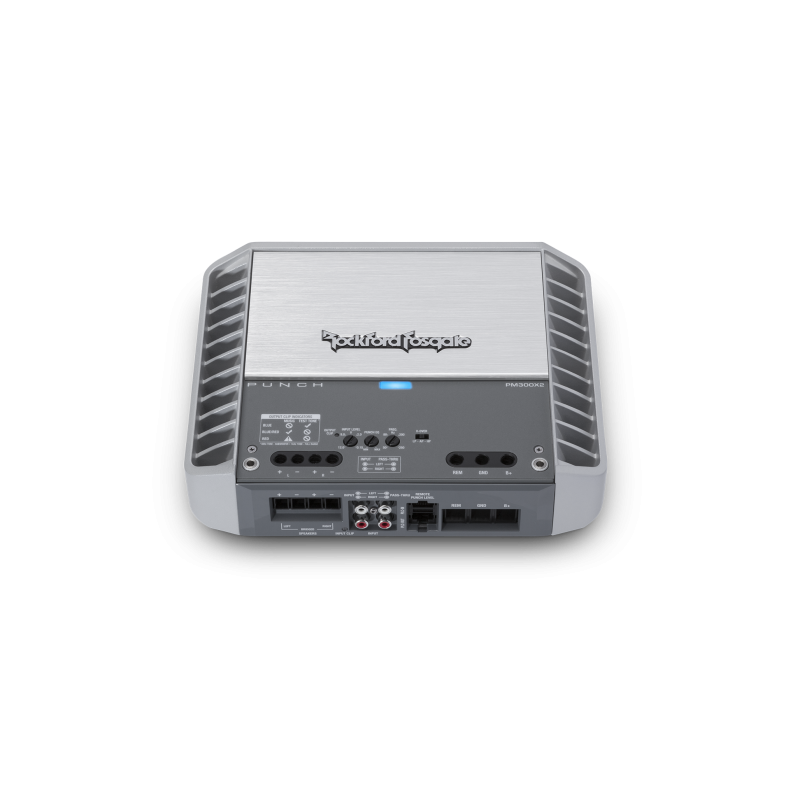

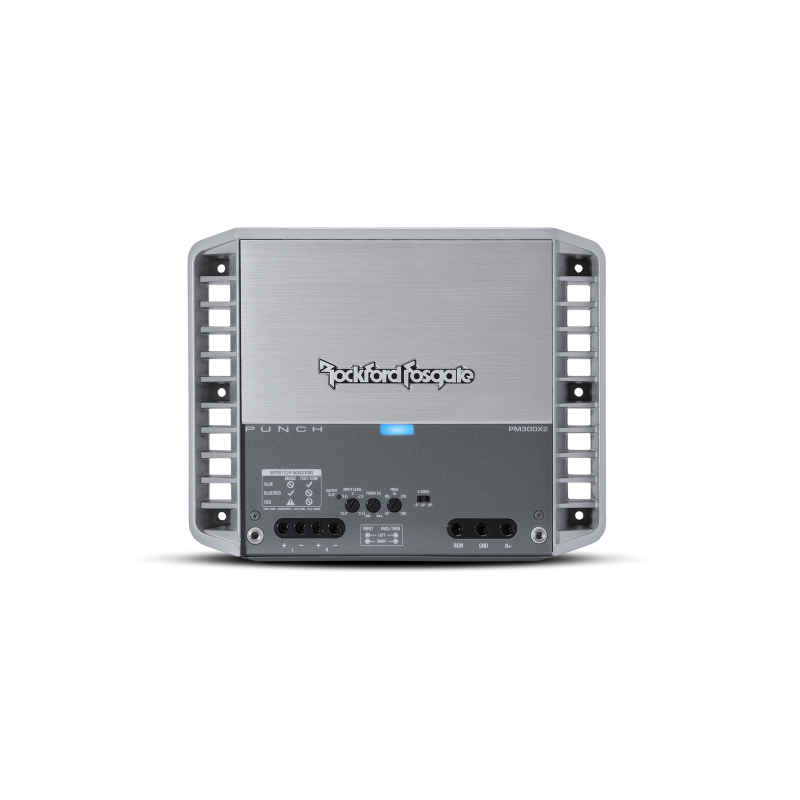

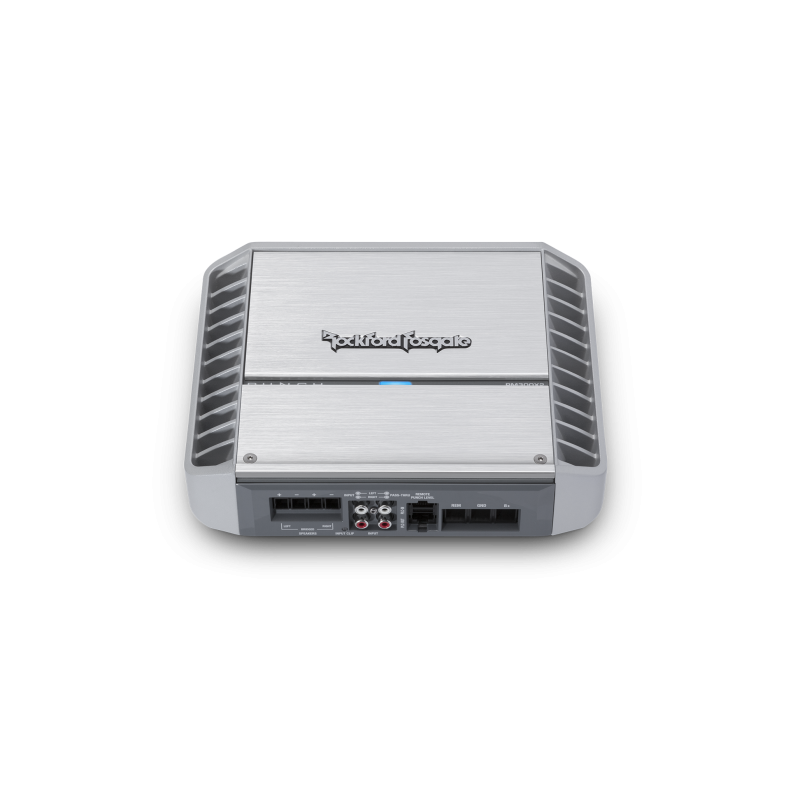

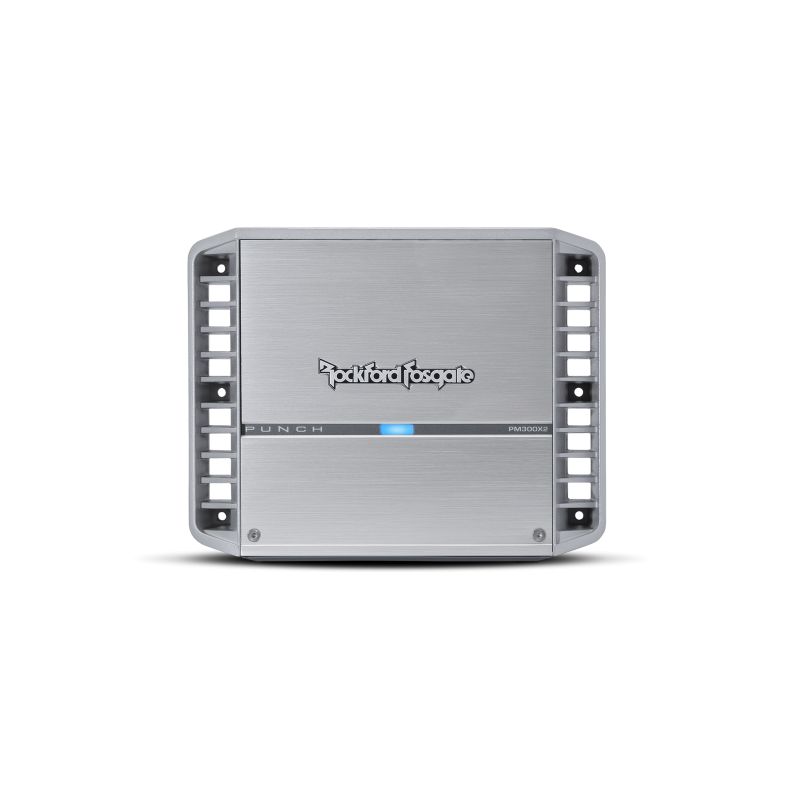

The PM300X2 is a 300 Watt 2-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.
Overview
The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.
Technologies
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Element Ready™ - Amps
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

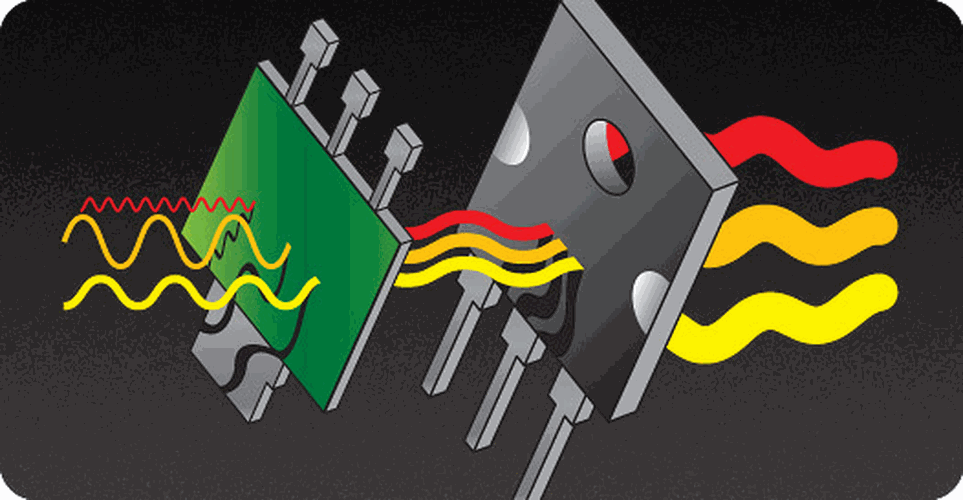

TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
DTM
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

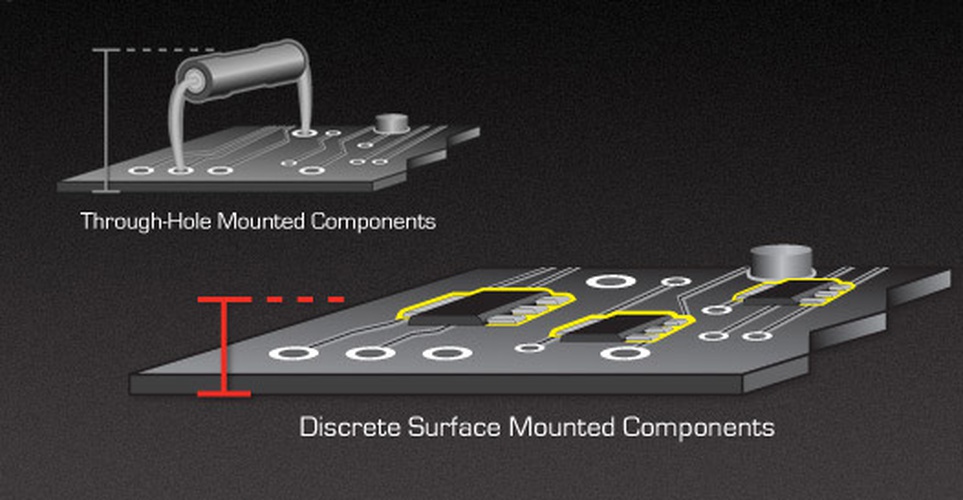

DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

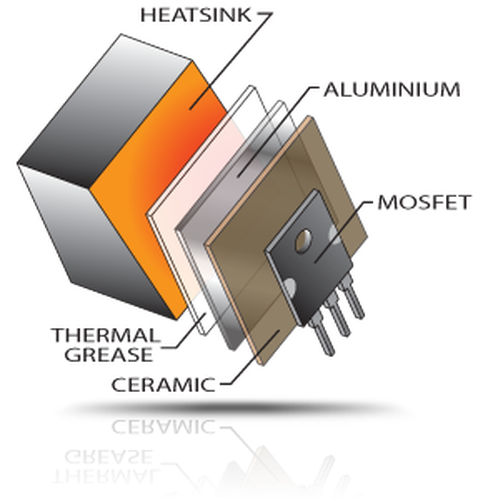

MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
| Specifications | |
|---|---|
| Recommended Fuse (not included) | 50 A |
| Operating Voltage | 9 - 16 VDC |
| Suggested Alternator | 75 A |
| Input Sensitivity | 150 mV - 12 V |
| Bridgeable | Yes |
| Crossover Controls | High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth All-Pass: Yes |
| Signal Input | Hi/Low Level: 1 RCA Pair |
| Signal Output | Low Level: 1 RCA Pair |
| Power Input Connector | Captive C-Clamp |
| Speaker Output Connector | Captive C-Clamp |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Cooling | Convection |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Dimensions (H x W x D) | 2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm) |
| Dynamic Power (PVC/PowerCube®) | 120 Watts x 2 @ 4-Ohms 0° Res 203 Watts x 2 @ 2-Ohms 0° Res |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Max. Current Draw (13.8V Sinewave) | 45 A |
| Rated Power (RMS Continuous Power) | 100 Watts x 2 @ 4-Ohm 150 Watts x 2 @ 2-Ohm 300 Watts x 1 @ 4-Ohm Bridged |
| Number of Channels | 2 |
| Total Power (Sum of Rated Power) | 300 Watts |
| Tone Controls | 0dB to +14dB @ 12.5kHz 0dB to +18dB @ 45Hz |
| Power Wire Gauge | 8 AWG to 4 AWG |
| Heat Sink Type | Die Cast Aluminum |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Circuit Topology Class | Class A/B |
| Frequency Response | 20Hz-20kHz |
| Shipping Weight | 9.5 Lbs. (4.3 Kg.) |
| Efficiency (average) | 69% @ 4-Ohm |
| Average Current Draw (13.8V Music) | 23 A |
