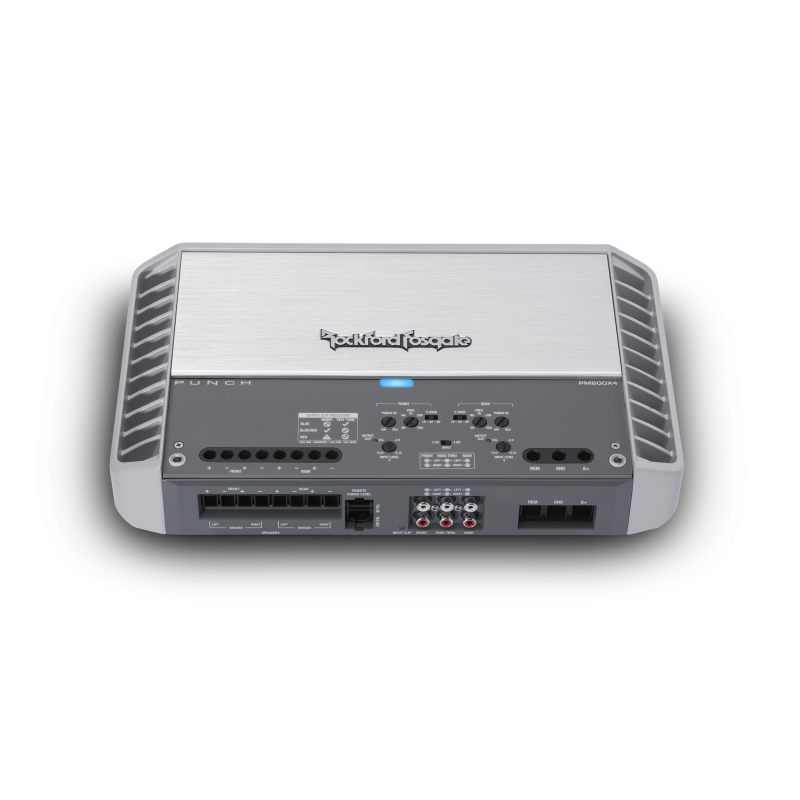

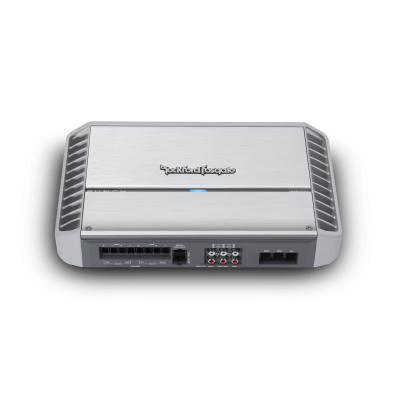

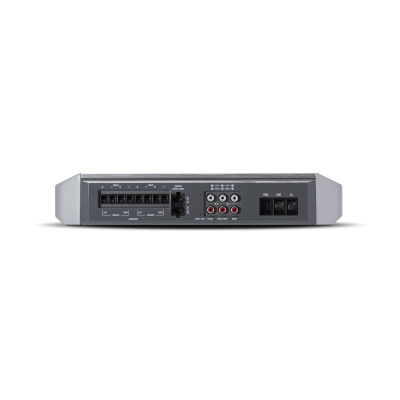

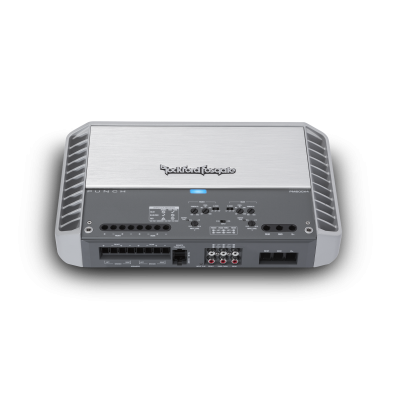

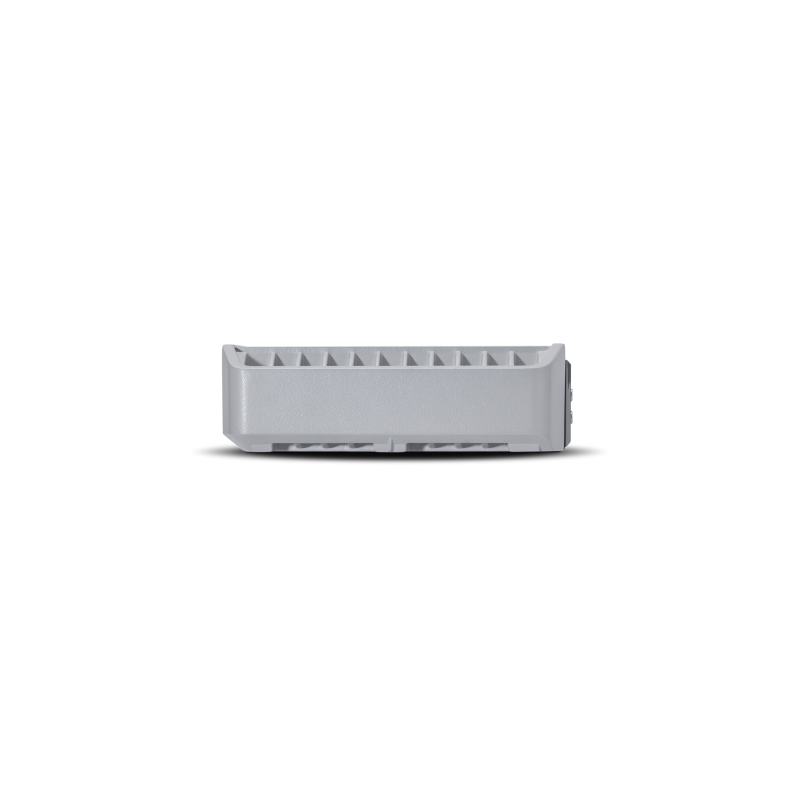

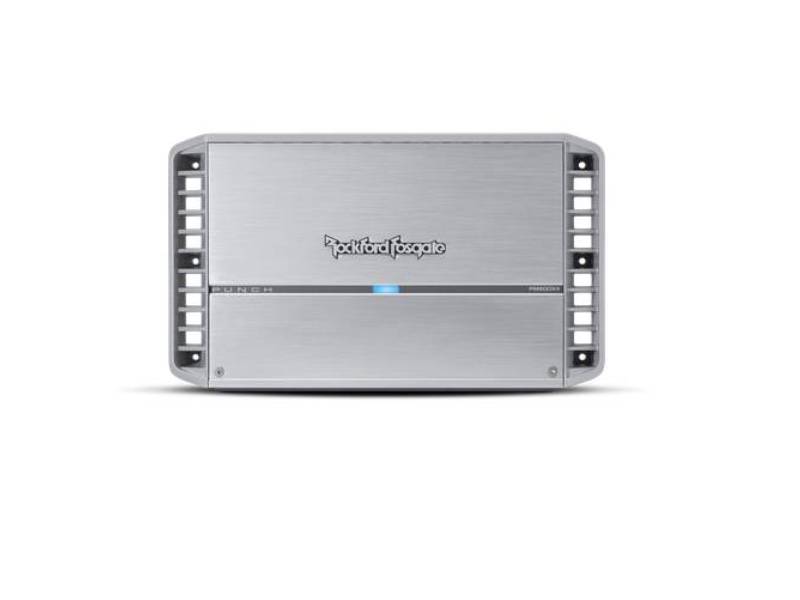

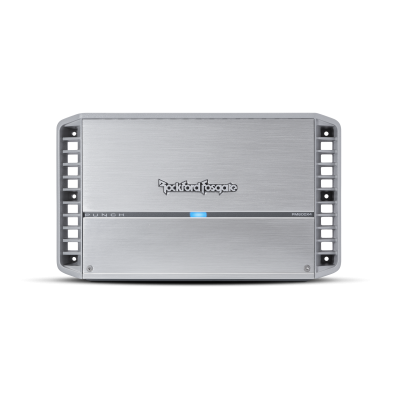

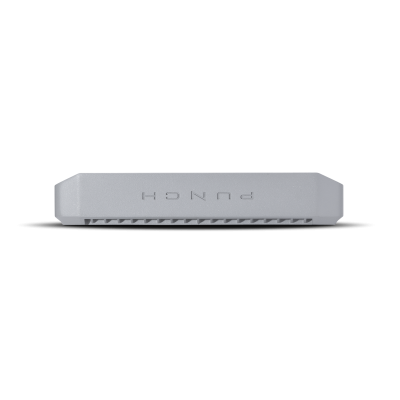

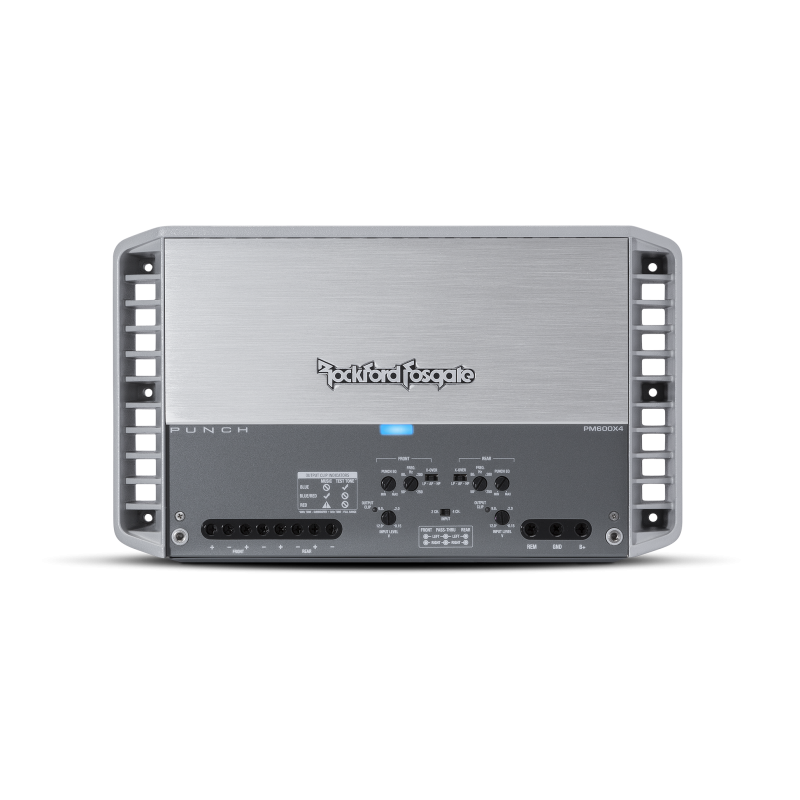

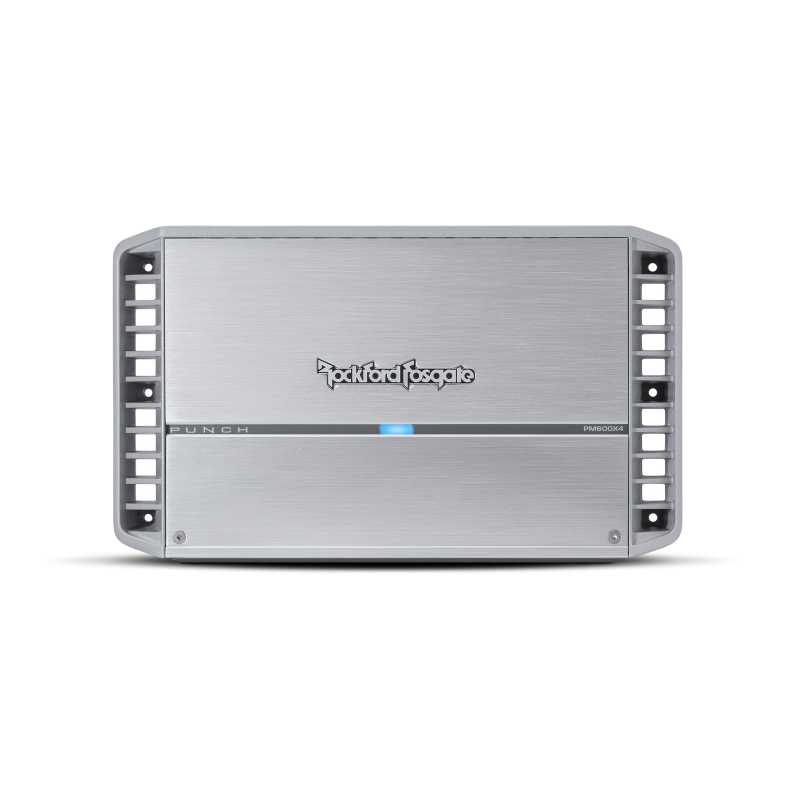

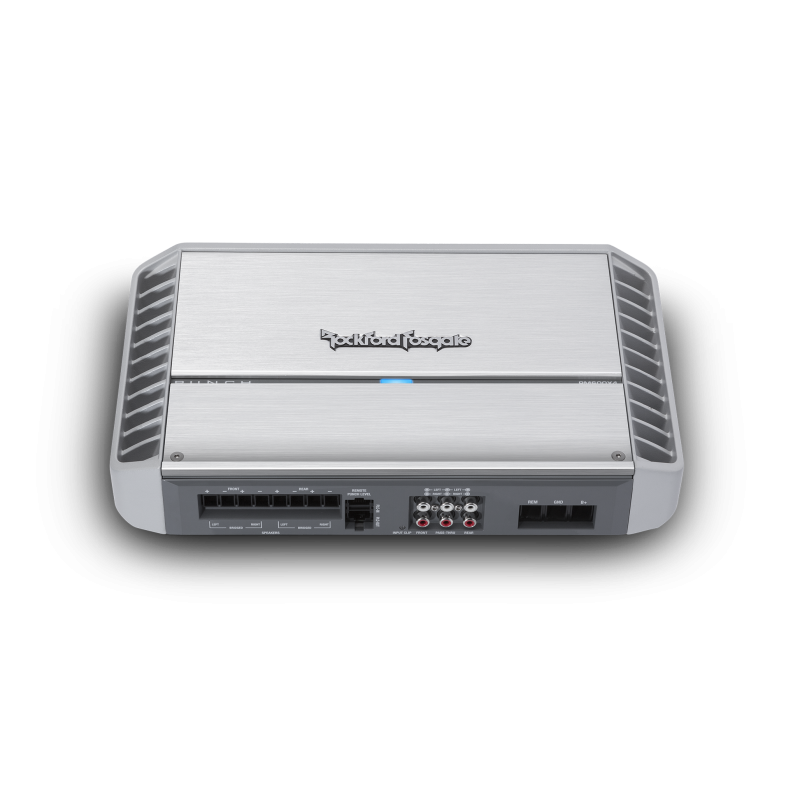

The PM600X4 is a 600 Watt 4-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.
Overview
The Punch PM600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.
Technologies
TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Element Ready™ - Amps
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
DTM
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.

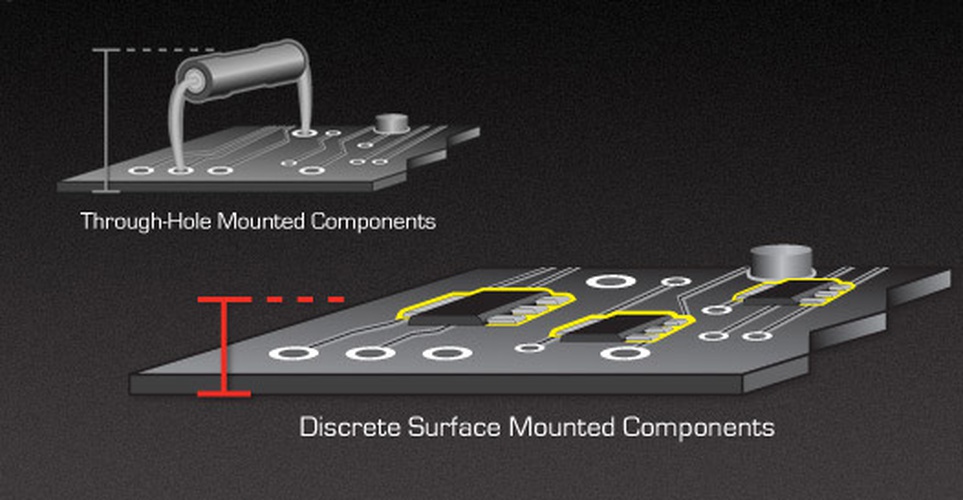

DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

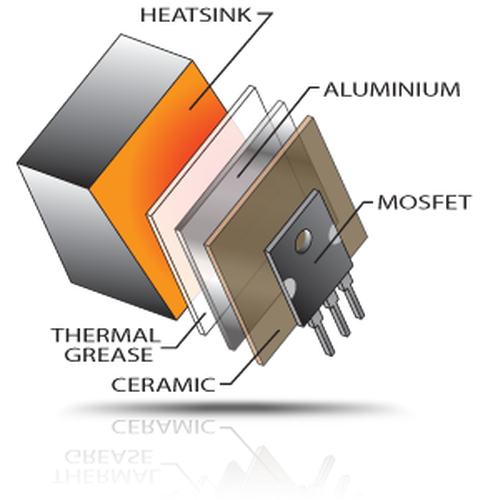

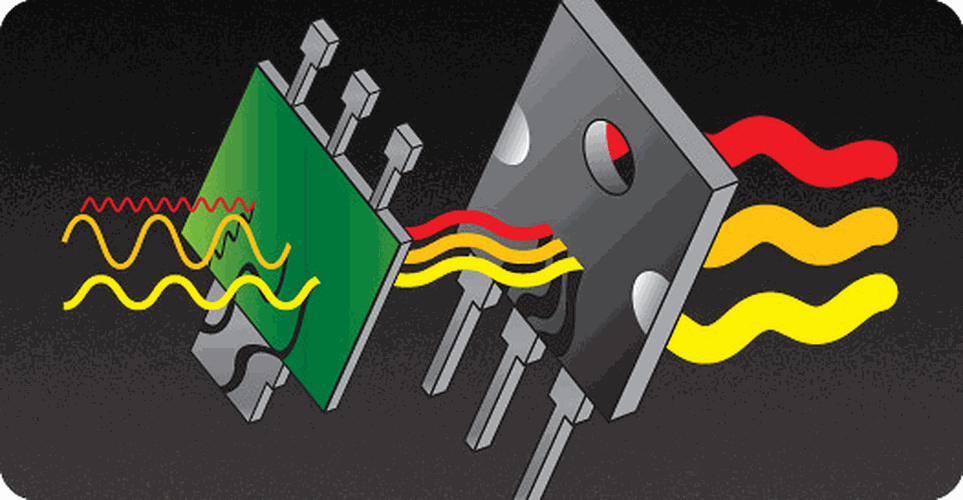

MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
| Specifications | |
|---|---|
| Input Sensitivity | 150 mV - 12 V |
| Recommended Fuse (not included) | 100 A |
| Average Current Draw (13.8V Music) | 45 A |
| Efficiency (average) | 68% @ 4-Ohm |
| Rated Power (RMS Continuous Power) | 75 Watts x 4 @ 4-Ohm 150 Watts x 4 @ 2-Ohm 300 Watts x 2 @ 4-Ohm Bridged |
| Dynamic Power (PVC/PowerCube®) | 129 Watts x 4 @ 4-Ohms 0° Res 211 Watts x 4 @ 2-Ohms 0° Res |
| Shipping Weight | 12.8 Lbs. (5.80 Kg.) |

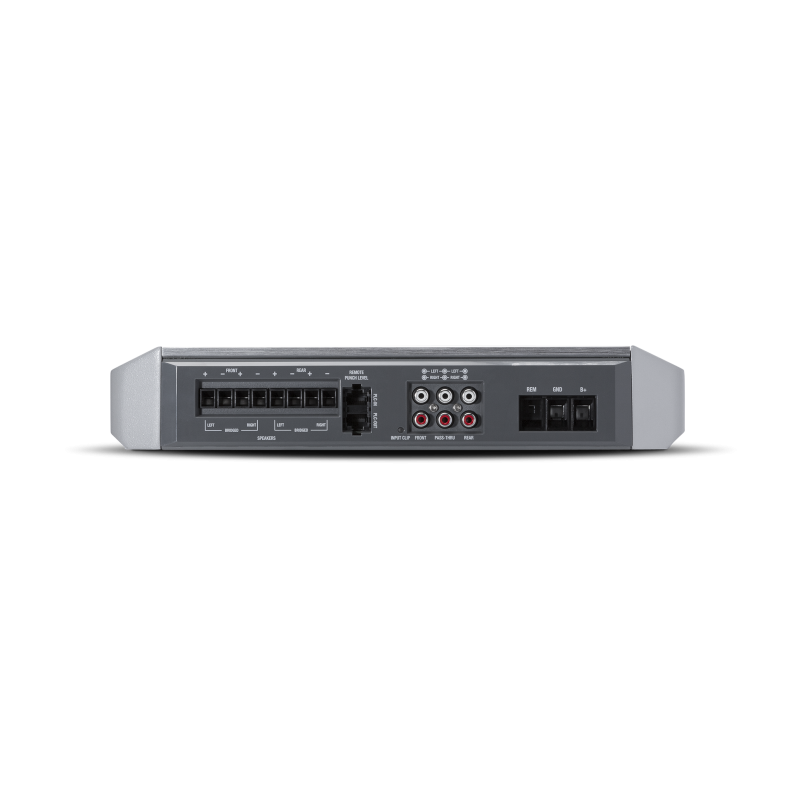

| Signal Input | Hi/Low level: 2 RCA pair |
| Suggested Alternator | 75 A |
| Number of Channels | 4 |
| Operating Voltage | 9 - 16 VDC |
| Max. Current Draw (13.8V Sinewave) | 90 A |
| Total Power (Sum of Rated Power) | 600 Watts |
| Total Harmonic Distortion (THD+Noise) | 4-Ohm: <1.0% 2-Ohm: <1.0% |
| Bridgeable | Yes |
| Crossover Controls | Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth All-Pass: Yes |
| Tone Controls | Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz Function depends upon LP/AP/HP switch position |
| Signal Output | Low level: 1 RCA pair |
| Power Wire Gauge | 4 AWG |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Speaker Output Connector | Captive C-Clamp |
| Power Input Connector | Captive C-Clamp |
| Heat Sink Type | Cast aluminum |
| Cooling | Convection |
| Remote Controls | Optional Punch Level Control (PLC2) Ready |
| Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
| Circuit Topology Class | Class A/B |
| Frequency Response | 20Hz to 20kHz +/- 1.0dB |
| Dimensions (H x W x D) | 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm) |
