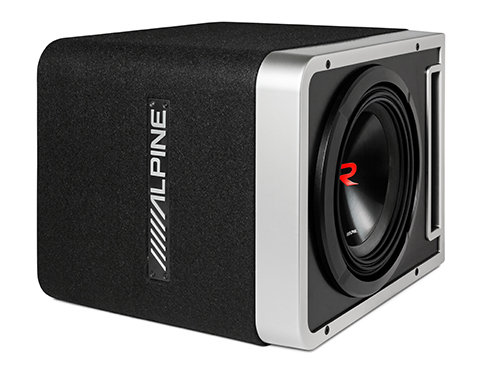

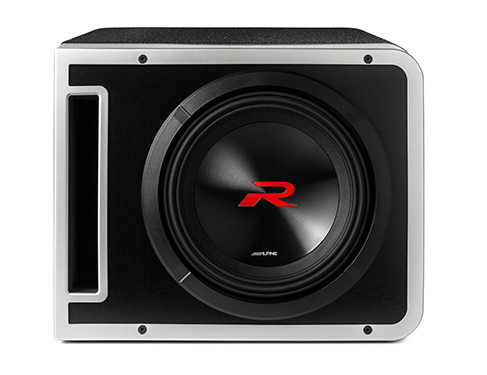

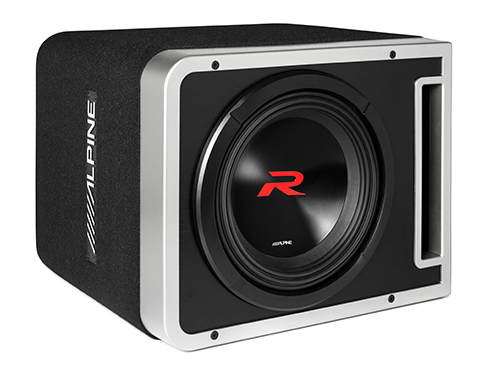

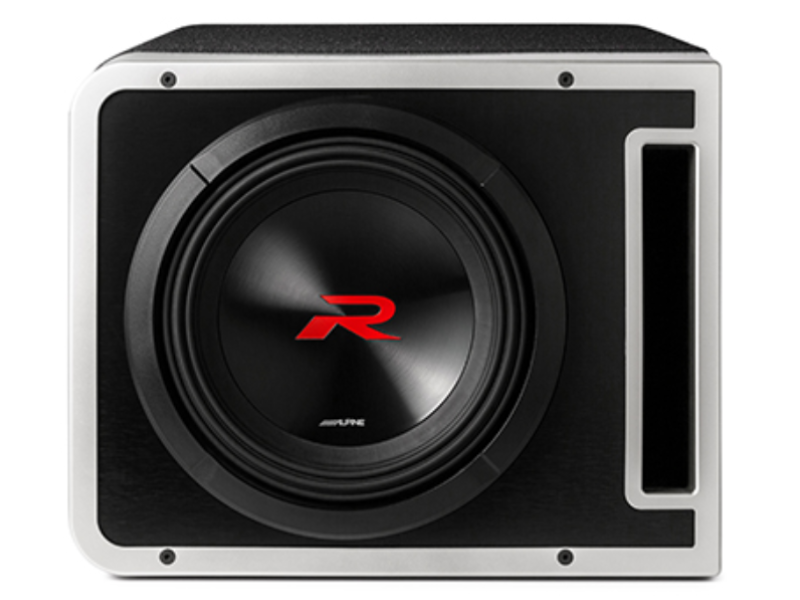

10" Alpine R-Series Halo Preloaded Subwoofer Enclosure with ProLink - R2-SB10V

Product Overview

Groundbreaking Alpine Halo design with next-generation R-Series Subwoofers for more accurate and authoritative bass.

Features

• Groundbreaking Alpine Halo Design
• ProLink ported enclosure design
• Polypropylene/Ceramic Composite Dust Cap
• Kevlar Reinforced Pulp Cone High-Performance subwoofers
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Large Double-Stacked Magnets
• CARB compliant 3/4-inch MDF construction
• Premium black carpet
• Silver Alpine embossed side logo badge
• Brushed aluminum finished metallic front baffle
• Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)

What's in the Box:

• Vented Cabinet with preloaded R2-W10D4 10" R-Series subwoofer
• Warranty Information
• Online product registration information

Tech Specs

Dimensions: 16" W x 12.6825" H x 14.5"

• 750W RMS
• 2250W Peak Power Handling
• Frequency Response: 26Hz-200Hz
• Sensitivity (1W/1m): 82.3dB
• Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with R-A75M)
• Voice Coil: 65mm 
• X-Max: 20mm
• Magnet Weight: 123oz
• 12 Gauge OFC Speaker Box Wire
• CTA-2031 Compliant

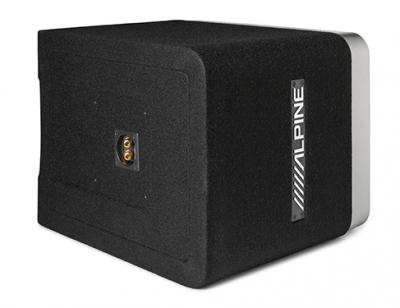

Unique ProLink Design

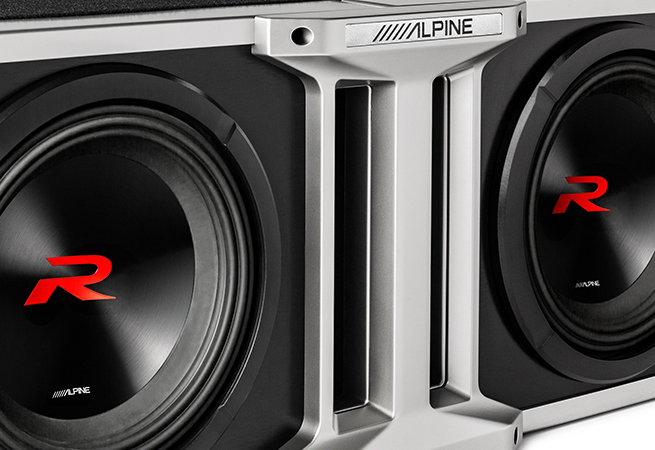

Alpine's unique ProLink technology was designed with the sound system builder in mind. ProLink allows more flexibility in both power and price to start with a single subwoofer enclosure and add an additional subwoofer using a Linking Kit (sold separately) to link two enclosures together to create a dual system when more bass is desired.

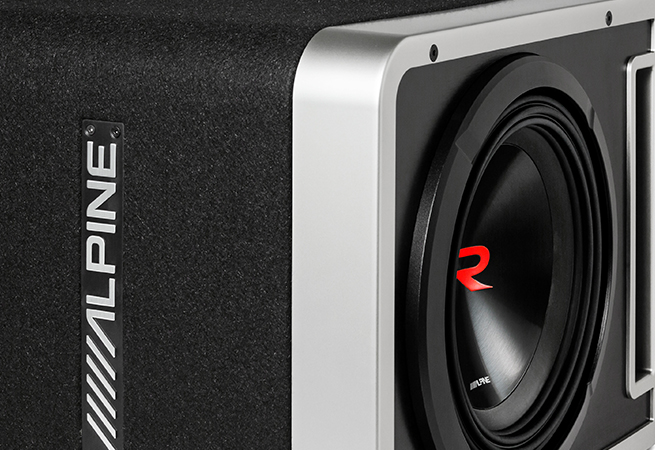

Alpine Halo Design

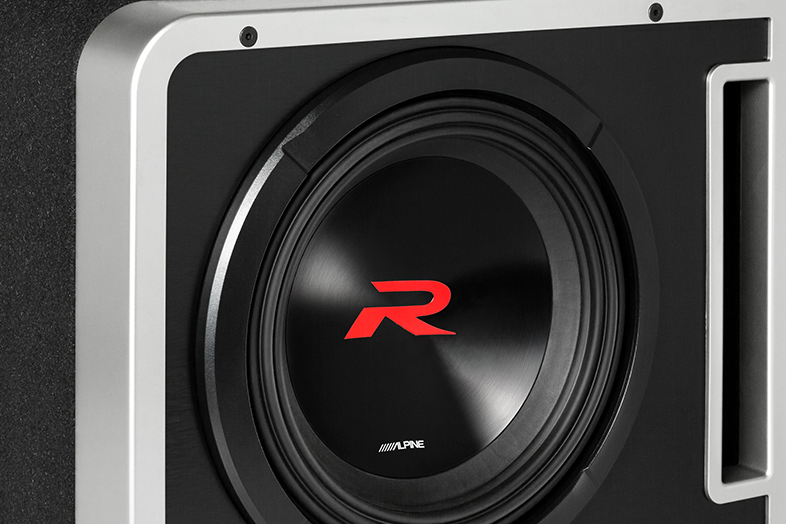

The enclosures share the premium, unmistakable design of the Alpine Halo Family. The enclosures pull design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front baffle for a matching system aesthetic. Built with sturdy, 3/4" MDF construction and covered in a premium black carpet, these enclosures give the impression of a custom look, without the custom work.

Deeper Bass Output

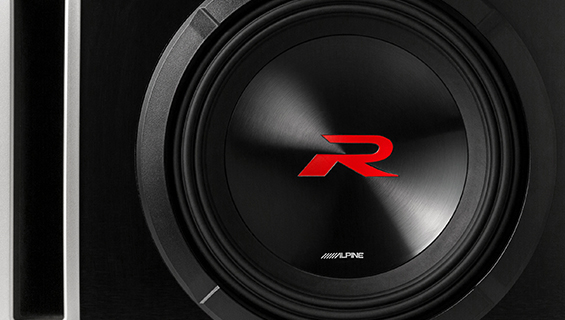

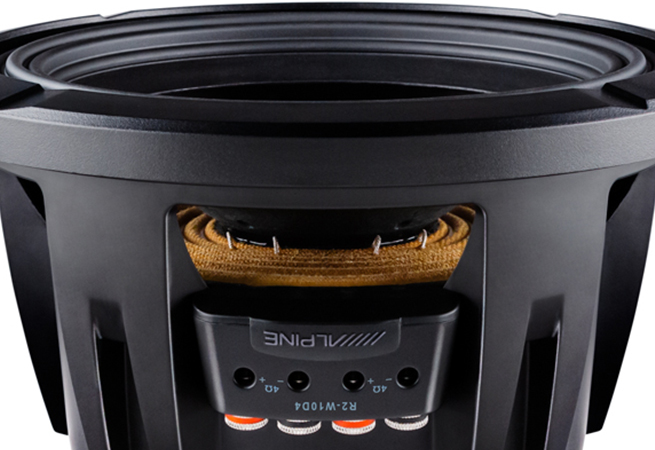

The enclosures come preloaded with the 2nd-Gen R-Series Subwoofers with larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.

Additional Reliability

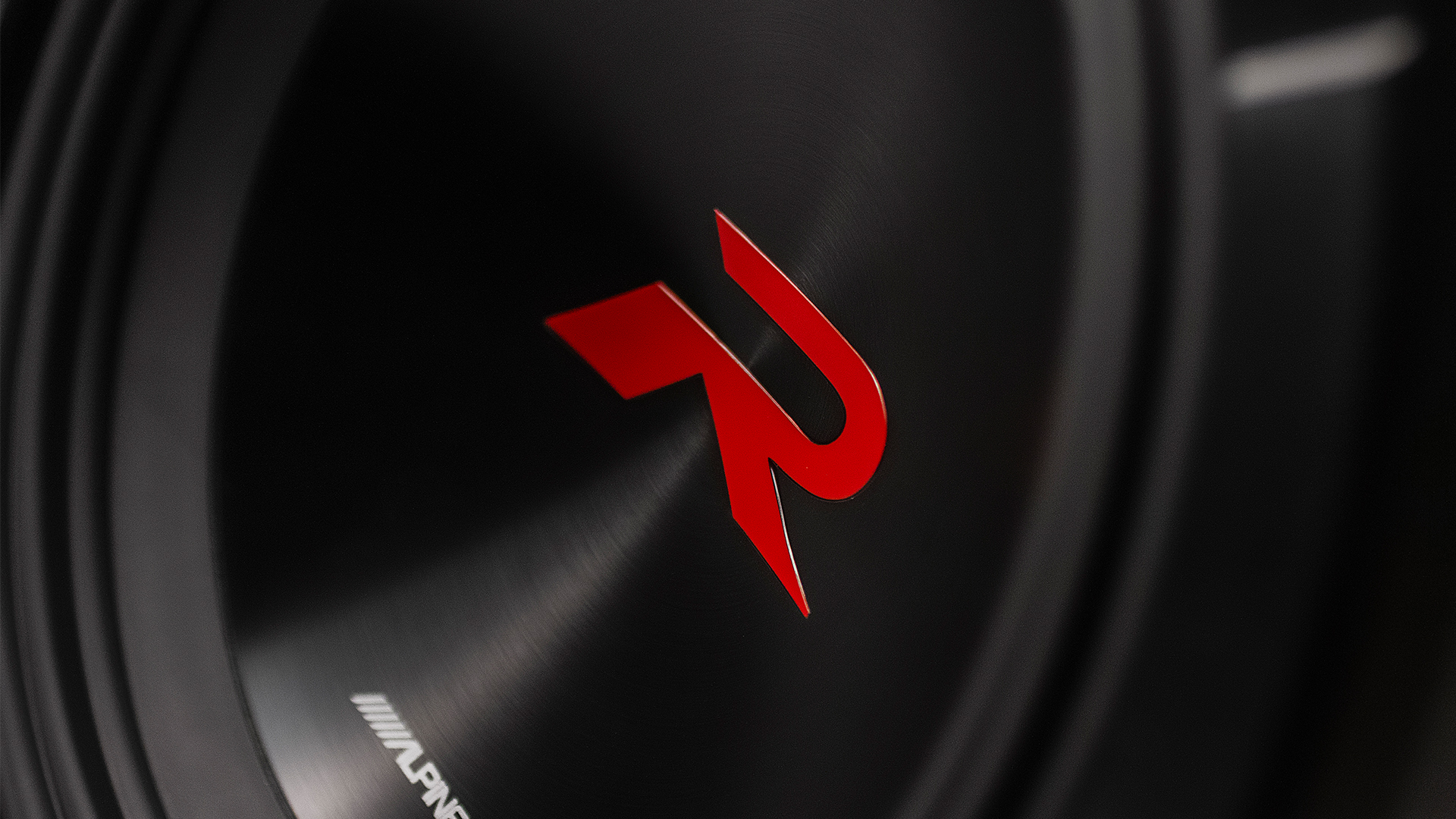

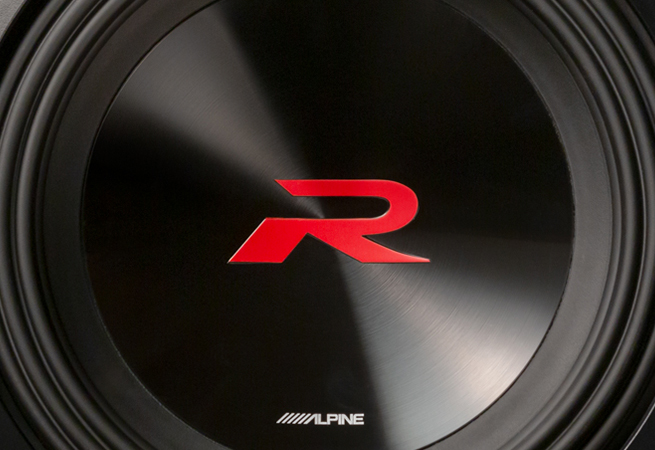

A new Polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has a higher heat reliability that ensures non-stop bass performance.

Increased Accuracy

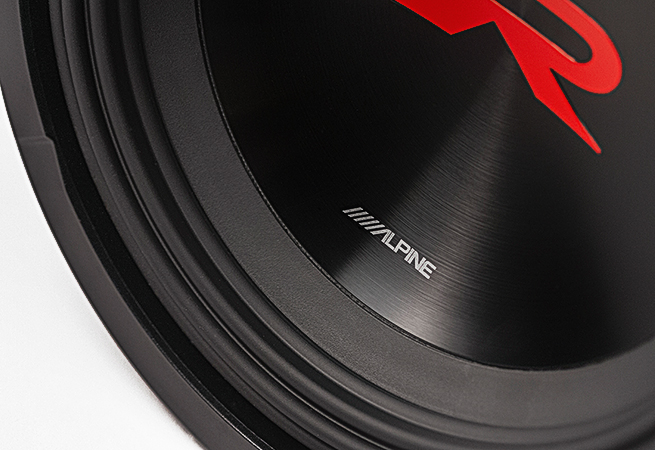

The 2nd-Gen R-Series Subwoofers contain Alpine's High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool, which also contributes to increased output from the subwoofers. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.

Optimized Sound Performance

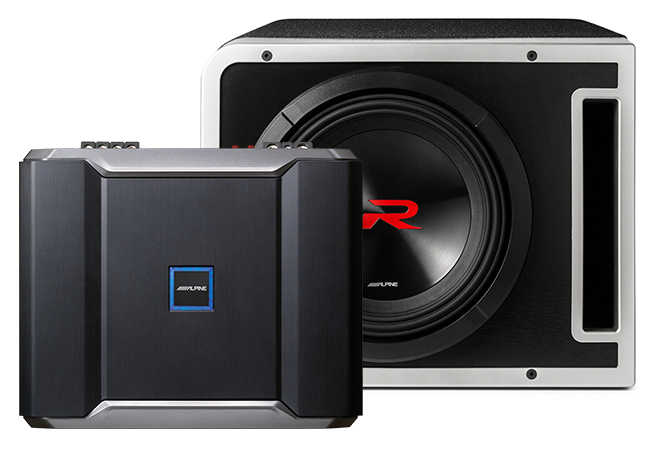

The ported enclosures feature an optimized vent and rounded internal port edges that maximize the output performance of the subwoofer, for deeper, reliable bass. Each enclosure is also wired for optimized performance with Alpine's R-Series R-A75M Mono Power Amplifier.
