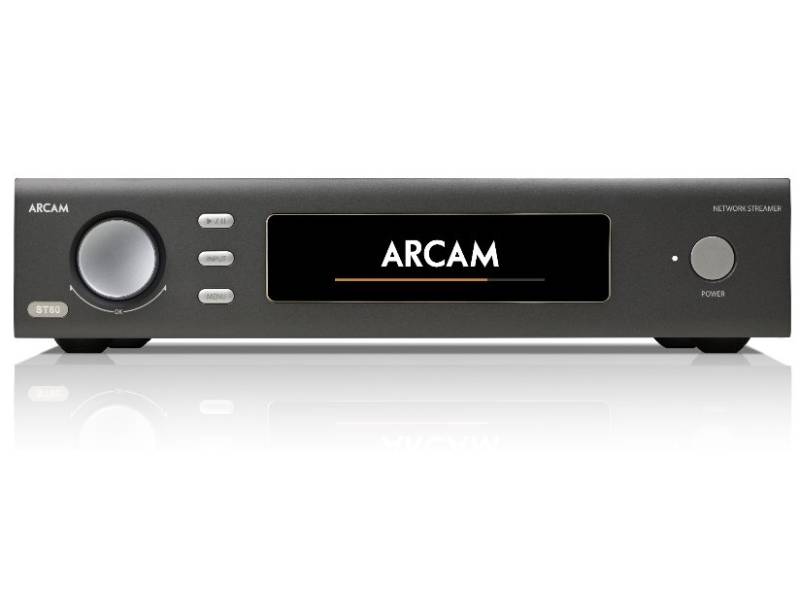

Arcam ARCST60AM

Arcam Wifi Network Streamer - ARCST60AM


Arcam Wifi Network Streamer - ARCST60AM
Boxing Day Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price $2,399.00 CAD
Buy Online
Availability
Schedule Delivery
Literature

  • 4 digital inputs
  • Balanced XLR and Single ended RCA analogue outputs
  • Optical and coaxial digital outputs
  • GoogleCast, Airplay2, uPnP Streamer
  • Roon Ready certified
  • MQA supported
  • 32-bit ESS9038Q2M Sabre DAC
  • Full I/P and RS232 control including Control4 and Crestron
  • Total harmonic distortion + noise = 0.0008%

Effortless Streaming, Quality Sound

The ST60 is a high-performance streaming source that enables streaming audio from all of the major services (Tidal, Qobuz,
Spotify, Napster, Deezer, etc) over Cast or Airplay2. It will also handle UPnP sources.

It is the perfect companion for the HDA range of stereo amplifiers and is also fully compatible with the MusicLife app.




Analogue Outputs
Digital to Analogue Conversion ESS9038 32-bit/192kHz Delta-Sigma DAC
Signal/Noise Ratio (Awtd) 118dB unbalanced, 122db balanced
Harmonic Distortion (1kHz) <0.0008%
Frequency response 10Hz – 20kHz ± 0.5dB
Output Level (Fixed) 2.2Vrms unbalanced, 4.5Vrms balanced
Output Impedance 47Ω unbalanced, 600Ω balanced
Minimum Recommended Load 5kΩ
RMS Jitter < 20 psec
Digital Inputs
SPDIF Receiver AKM4113
Digital Inputs - Supported sample rates
Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Digital Inputs - Supported sample rates
Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Digital Inputs
Bit depth 16-bit – 32-bit
Digital Interfaces
USB USB 2.0 High Speed (480Mbps)
Ethernet 10/100Mbps
Wireless 802.11b/g/n
General
Mains voltage 110–240V, 50–60Hz
Maximum power consumption 10W
Low power standby consumption 0.5W
Network standby consumption 2W
Dimensions W x H x D (including feet and control knob) 433x102x306mm
Weight (net) 5.5kg
Weight (gross) 7.9kg
Supplied accessories Mains leads
Remote control
2 x AAA batteries
User Manual
2 x WiFi Antenna
