| Our Price |
$249.00 CAD
Sale Ends : August 31, 2025 On Sale
|

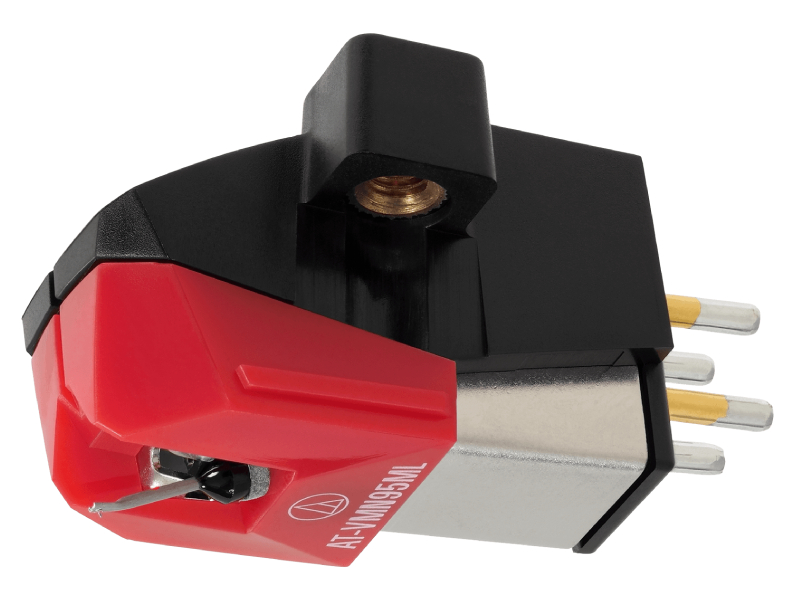

This VM95 Series cartridge with 2.2 x 0.12 mil Microlinear stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
| Specifications | |
|---|---|
| Mounting Feature | Half-inch mount |
| Model | AT-VM95ML |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver |
| Dimensions | 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D |
| Cartridge Weight | 6.1g |
| Mounting | Half-inch |
| Dynamic Compliance | 10 x 10 – 6 cm / dyne (100 Hz) |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Cantilever | Aluminum pipe |

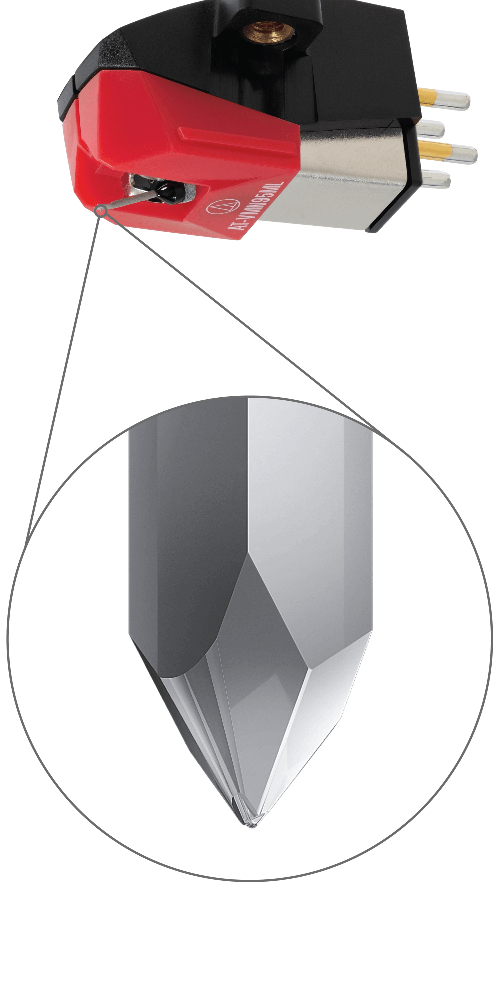

| Stylus Shape | 2.2 x 0.12 mil Microlinear |
| Output Channel Balance | 1.5 dB (1 kHz) |
| Output Voltage | 3.5 mV (1 kHz, 5 cm/sec.) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 ohms |
| Coil Impedance | 3.3 k ohms (1 kHz) |
| Recommended Load Impedance | 47,000 ohms |
| Stylus Construction | Nude square shank |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Vertical Tracking Angle | 23° |
| Channel Separation | 23 (dB at 1 kHz) |
| Frequency Response | 20-25,000 Hz |
| Recommended Load Capacitance | 100 to 200 pF |
| Replacement Stylus | AT-VMN95ML |
| Stylus Size | 2.2 x 0.12 mil |
| Type | VM Stereo Dual Magnet |
| Weight | 6.1 g (0.22 oz) |
| Wire Used for Coil | T.P. Copper |
