Authorized Dealer
Price Match Guarantee
| Our Price |
$129.00 CAD
Sale Ends : August 31, 2025 On Sale
|

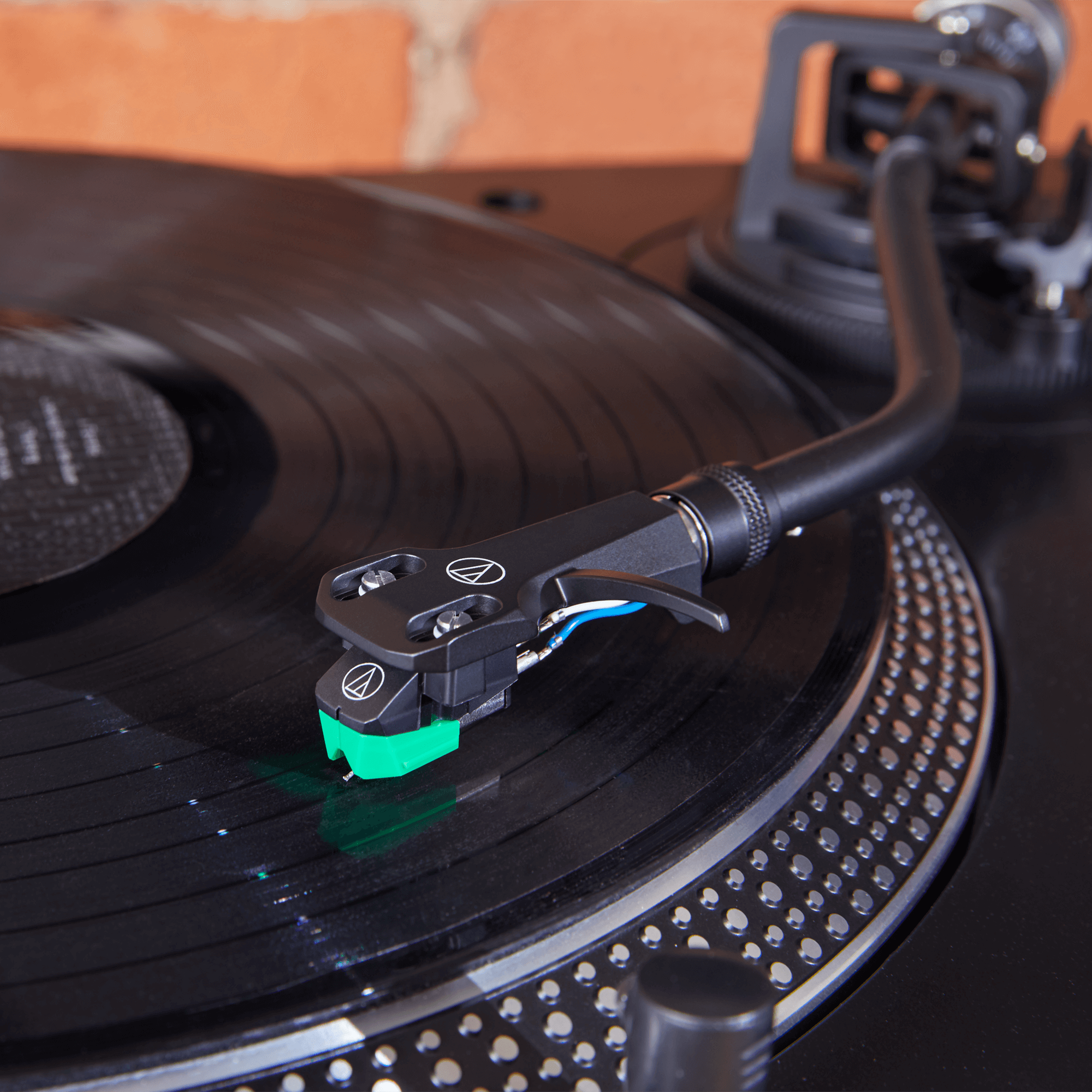

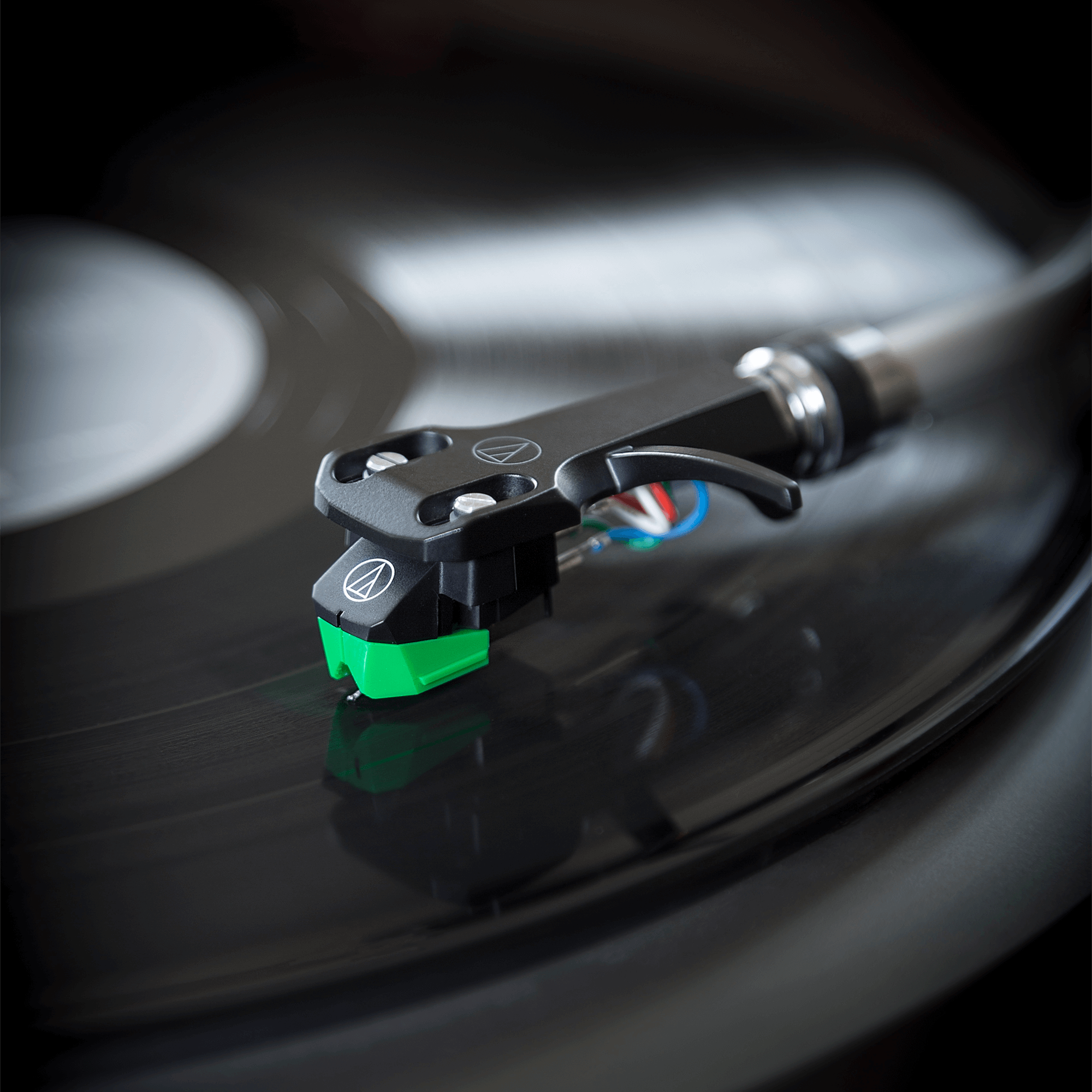

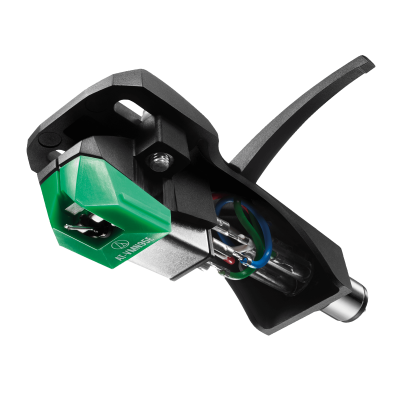

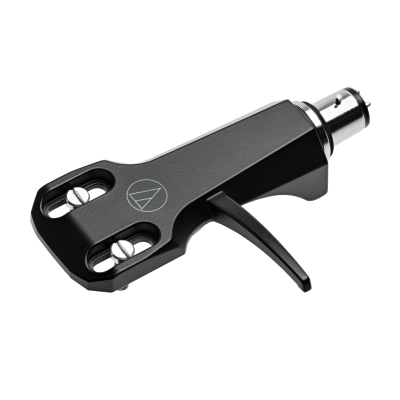

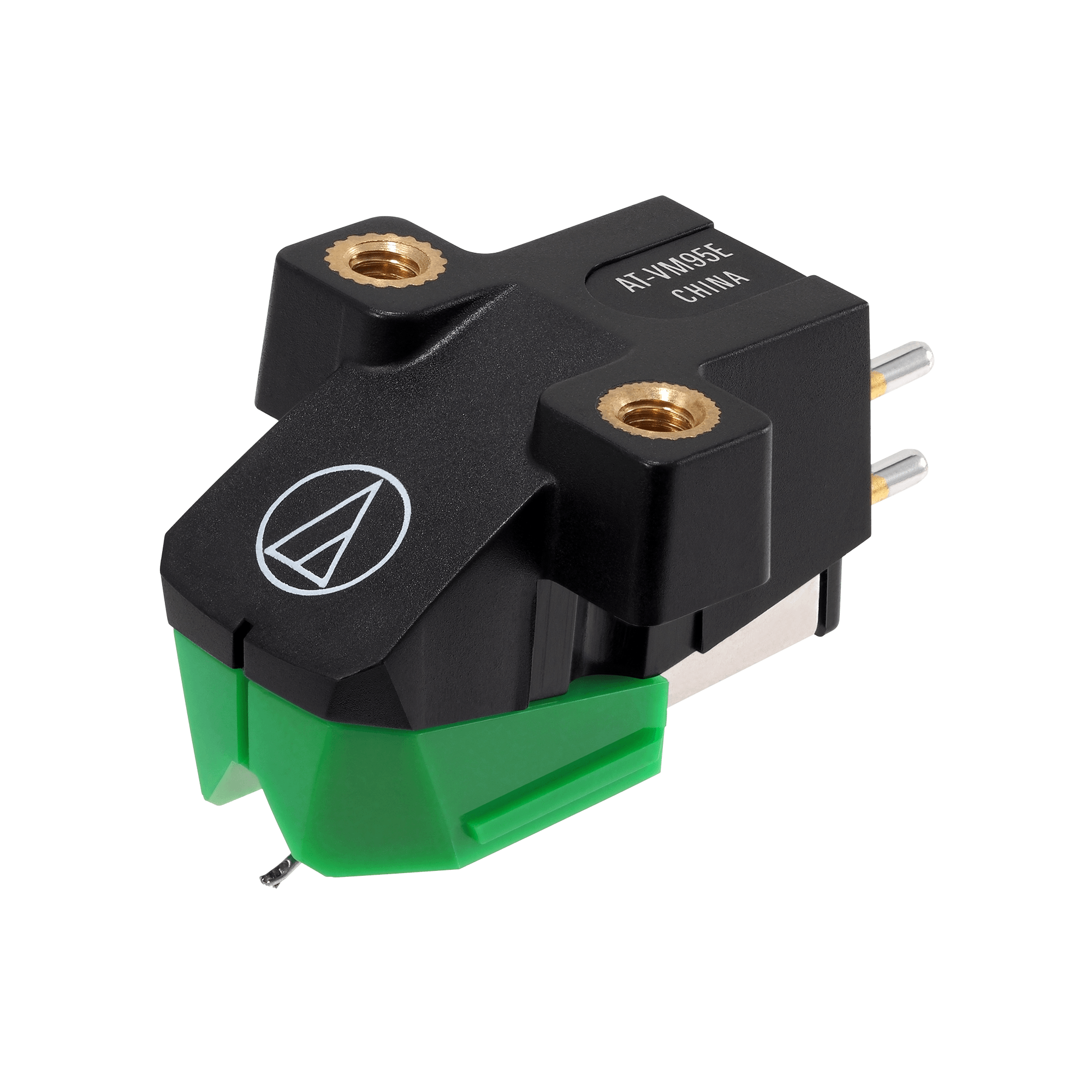

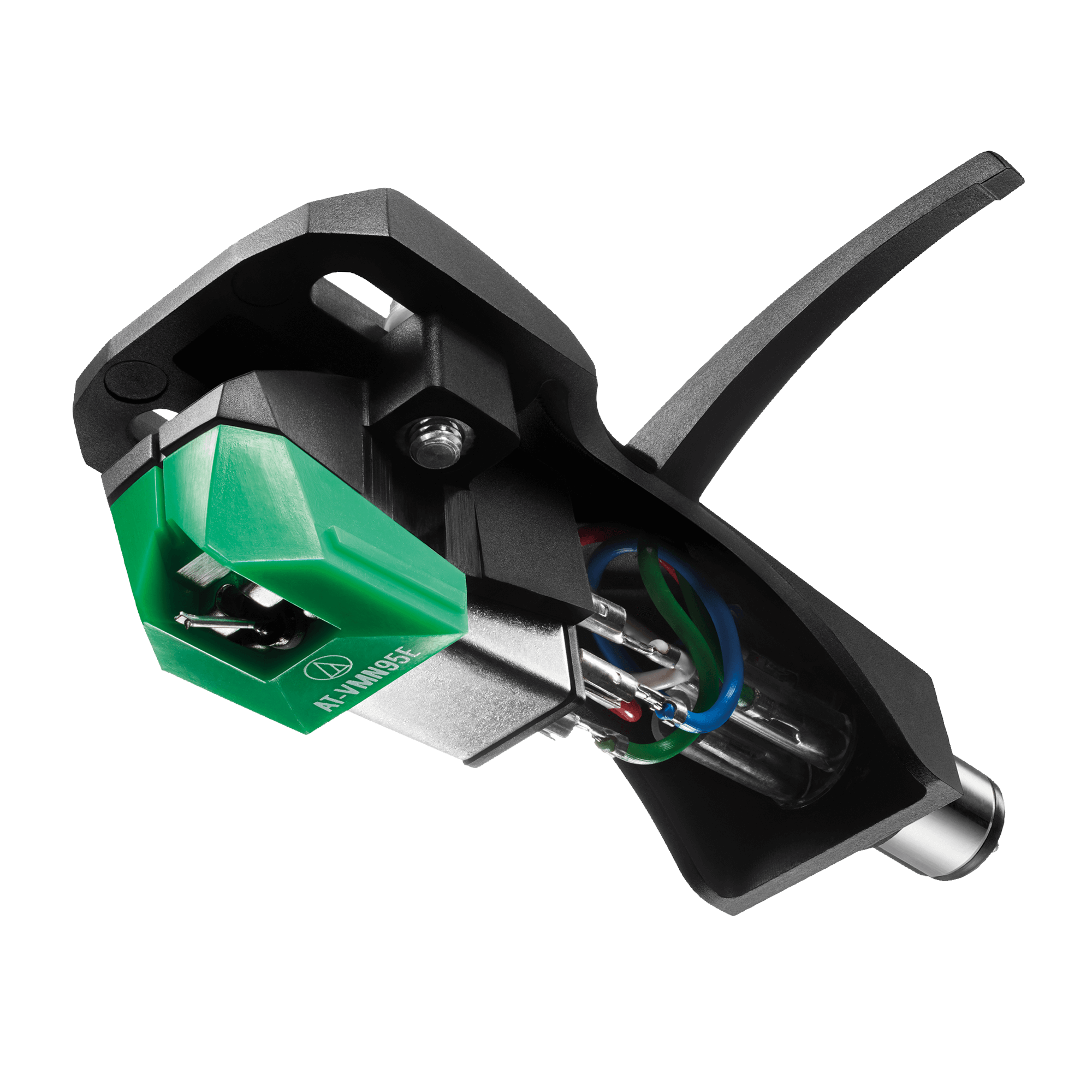

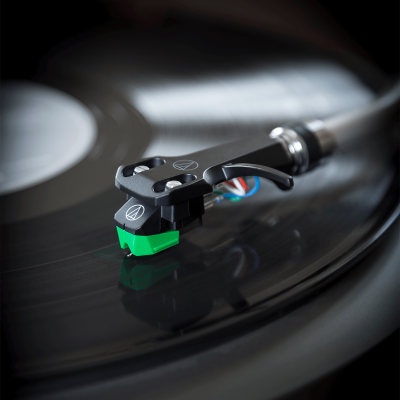

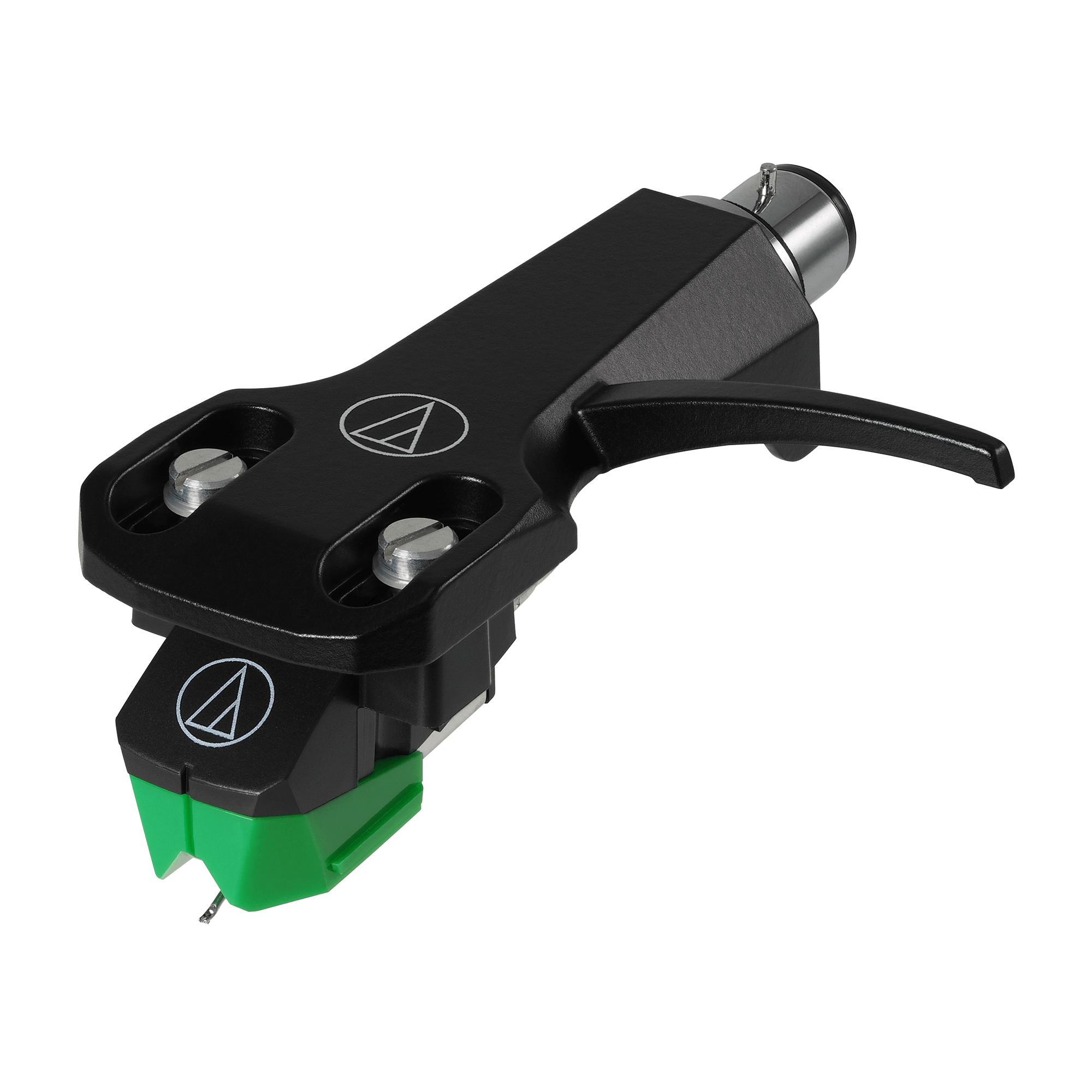

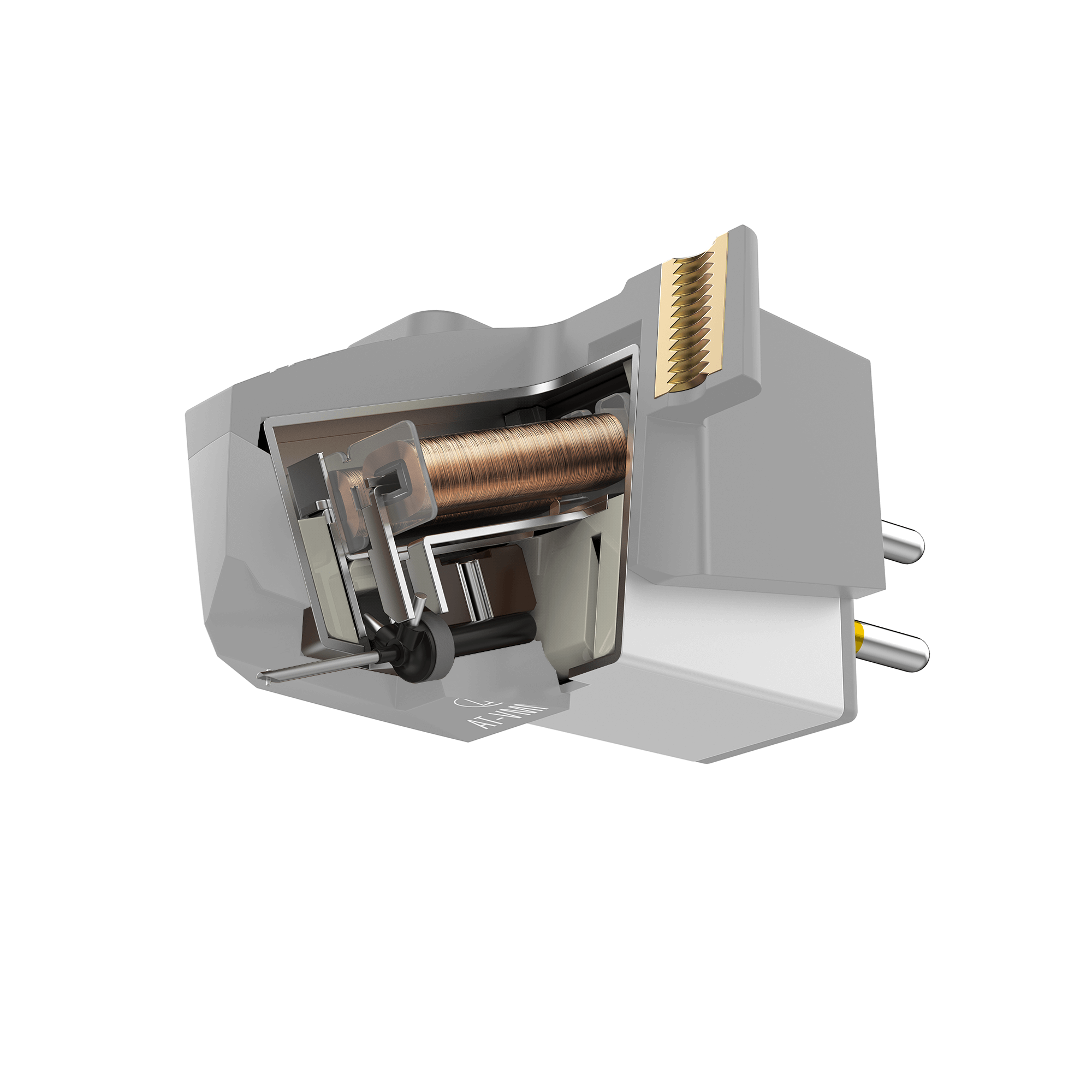

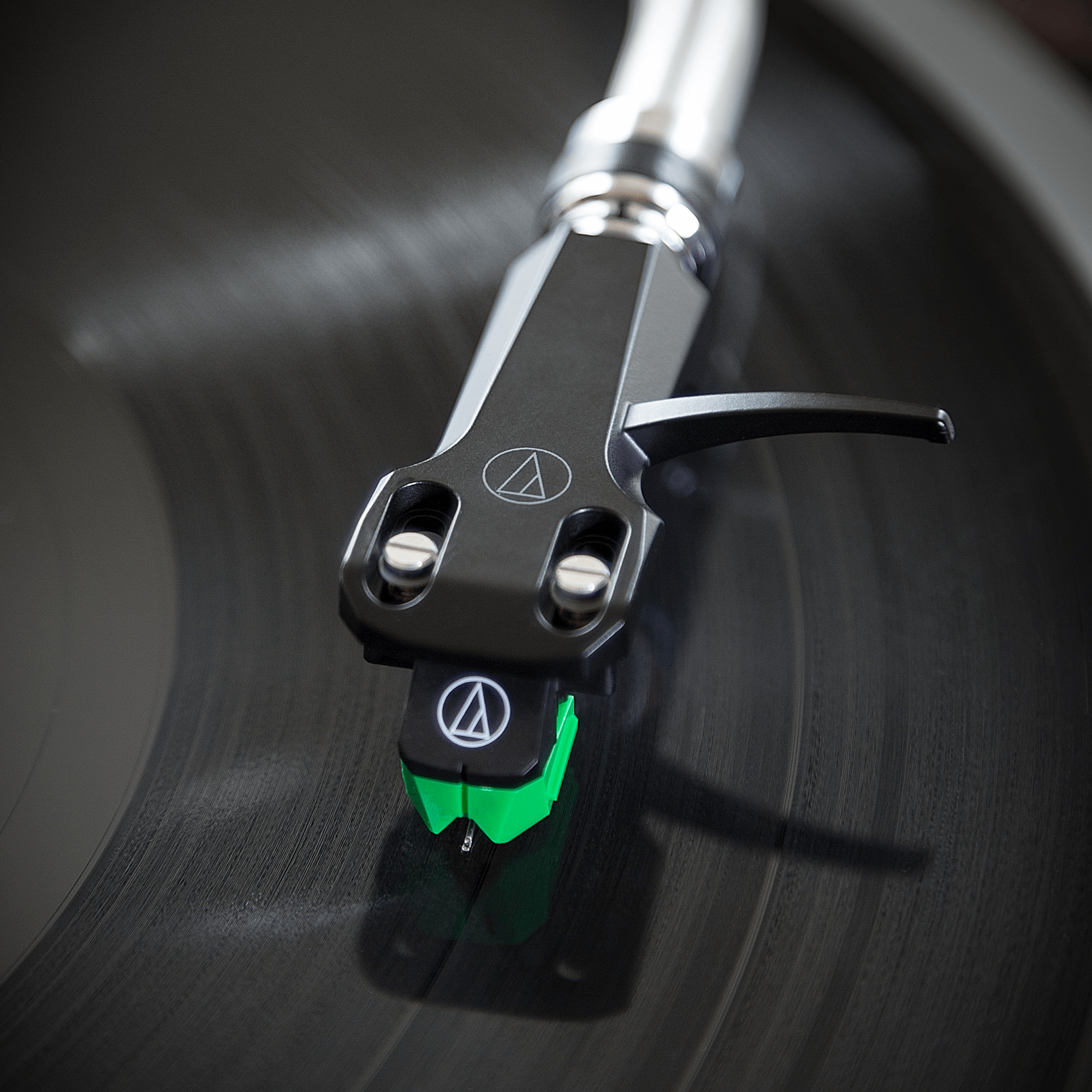

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.
| Specifications | |
|---|---|
| Wire Used for Coil | T.P. Copper |
| Weight | 15.5 g |
| Type | VM Stereo Dual Magnet |
| Stylus Size | 0.3 x 0.7 mil |
| Replacement Stylus | AT-VMN95E |
| Recommended Load Capacitance | 100-200 pF |
| Model | AT-VM95E/H |
| Dimensions | 21.2 × 21.4 × 62.4 ( H x W x D mm) |
| Mounting | 1/2” centres |
| Dynamic Compliance | 7 x 10 – 6 cm / dyne (100 Hz) |
| Static Compliance | 17 x 10 – 6 cm / dyne |
| Cantilever | Aluminium Pipe |
| Stylus Shape | Elliptical |
| Output Channel Balance | 2.0 dB (1 kHz) |
| Output Voltage | 4.0 mV (@ 1 kHz, 5 cm/sec) |
| Coil Inductance | 550 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Recommended Load Impedance | 47,000 Ω |
| Stylus Construction | Bonded Round Shank |
| Vertical Tracking Angle | 23° |
| Channel Separation | 20 dB (1 kHz) |
| Frequency Response | 20 - 22,000 Hz |
