| Our Price |
$169.00 CAD
Sale Ends : August 31, 2025 On Sale
|

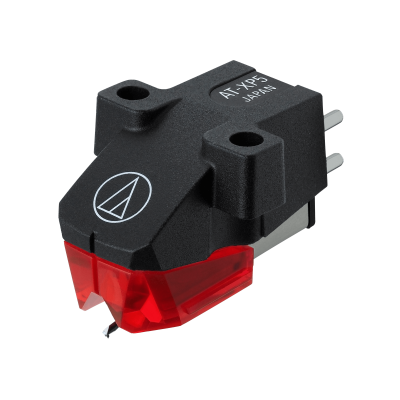

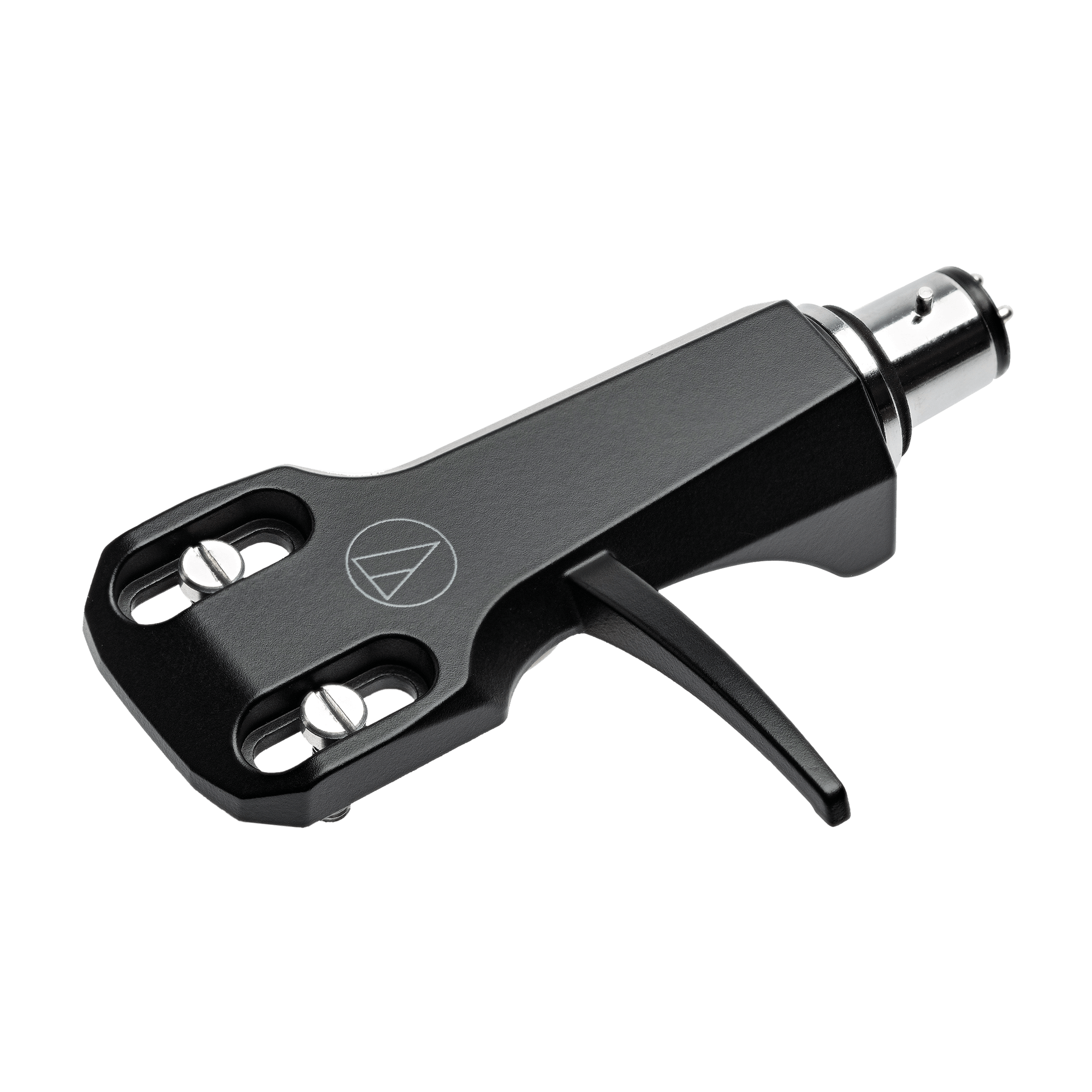

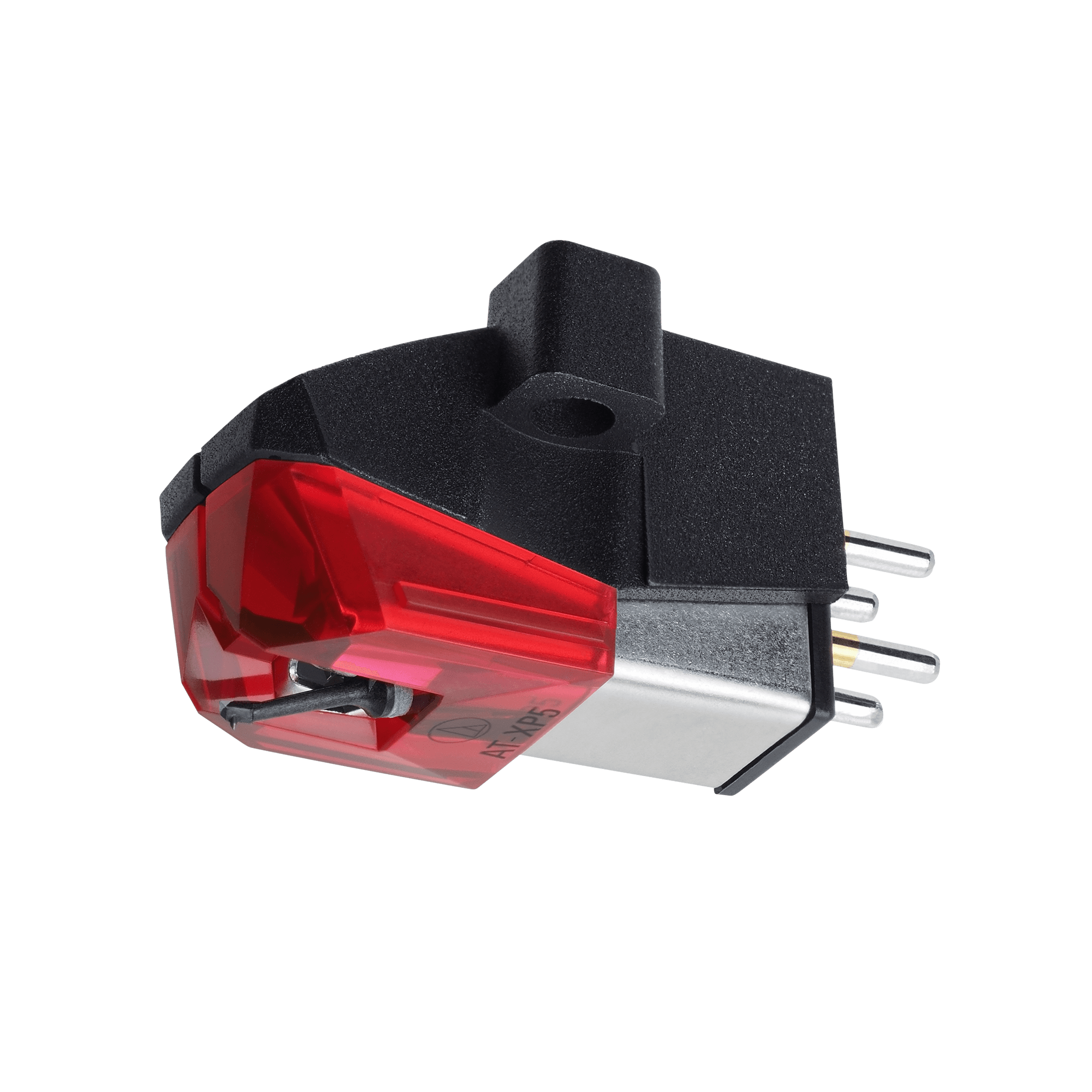

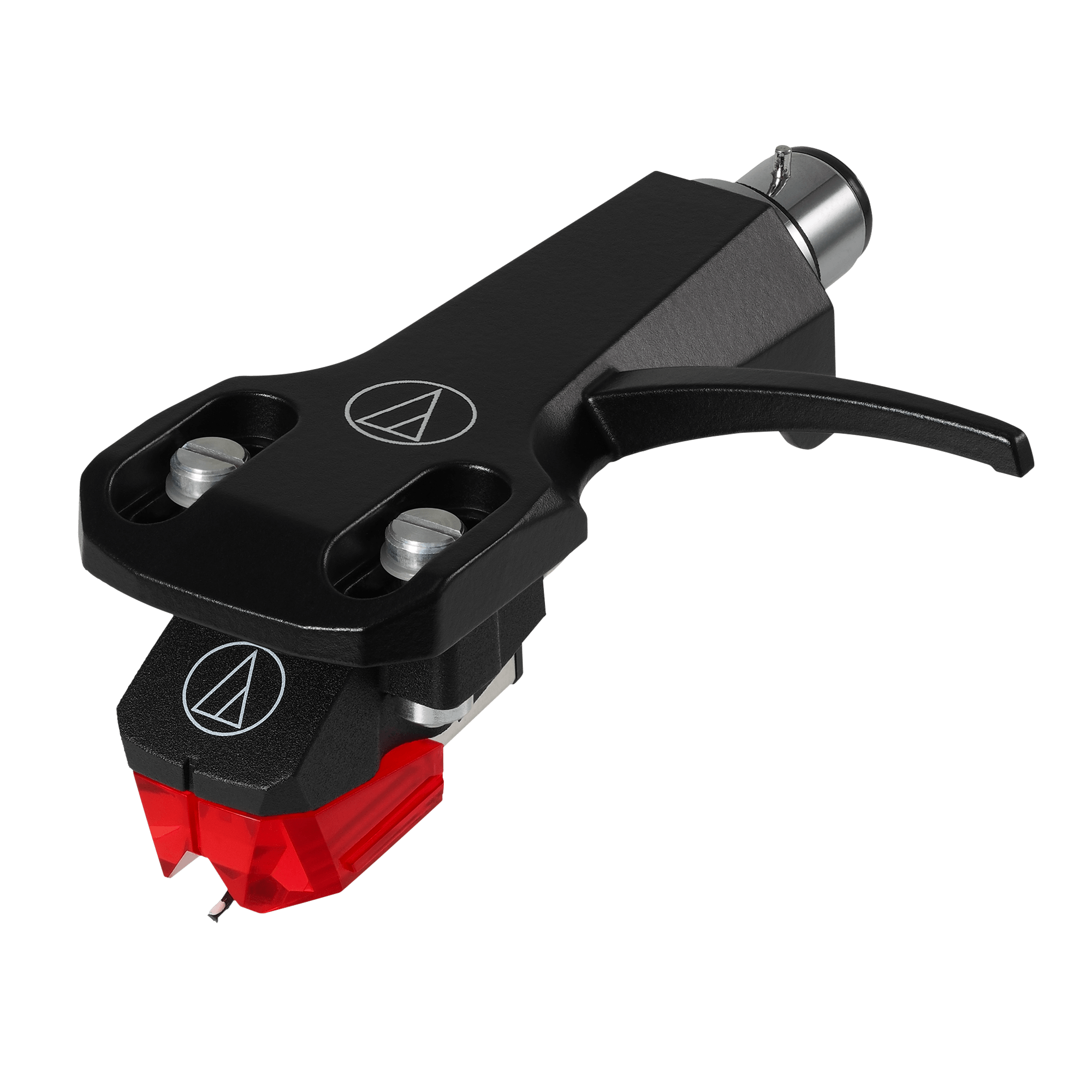

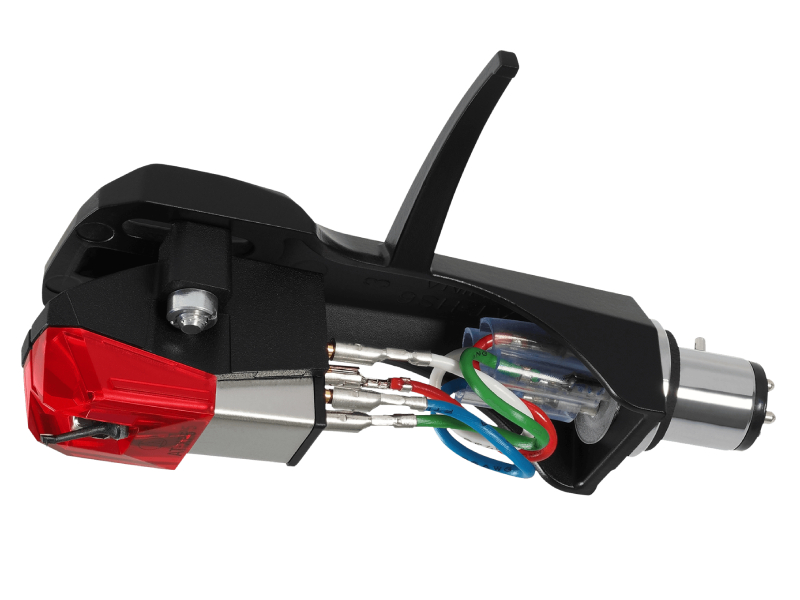

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.
Features
| Specifications | |
|---|---|
| Frequency Response | 20-18,000 Hz |
| Weight | cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz) |
| Stylus Size | 0.3 x 0.7 mil |
| Replacement Stylus | ATN-XP5 |
| Recommended Load Capacitance | 100 to 200 pF |
| Mounting Feature | Half-inch mount |
| Model | AT-XP5/H |
| Accessories Included | Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver |
| Dimensions | cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D |
| Channel Separation | 20 (dB at 1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 2.0-4.0 g (3.0 g standard) |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 6.7 k ohms (1 kHz) |
| DC Resistance | 990 ohms |
| Coil Inductance | 1.0 H (1 kHz) |
| Output Voltage | 5.5 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 2.0 dB (1 kHz) |

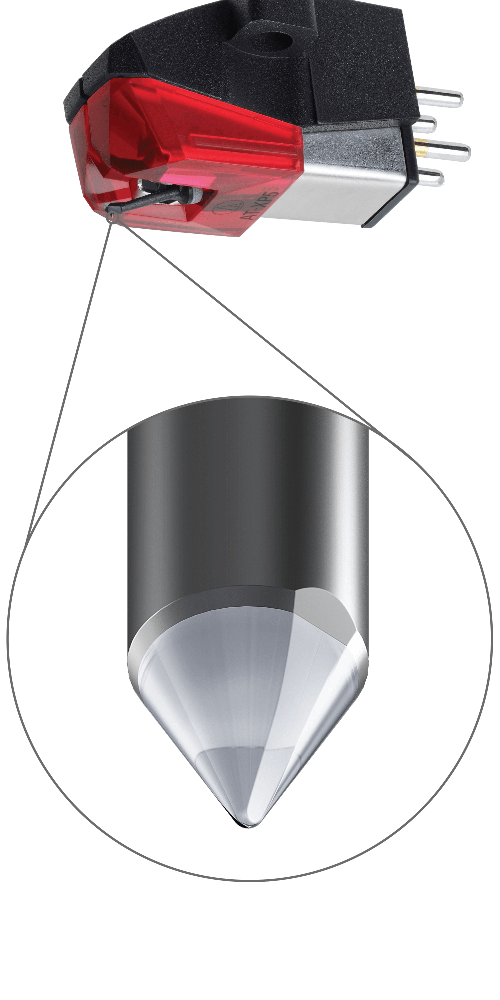

| Stylus Shape | 0.3 x 0.7 mil elliptical |
| Cantilever | Carbon fiber-reinforced ABS |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 6.0 x 10 – 6 cm / dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 15.6g |
