Hertz MPX165.3

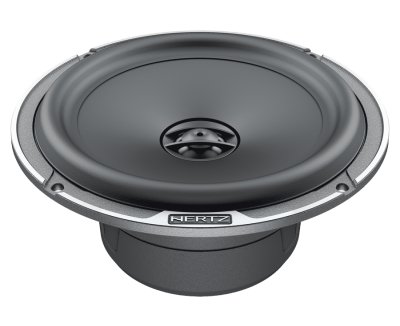

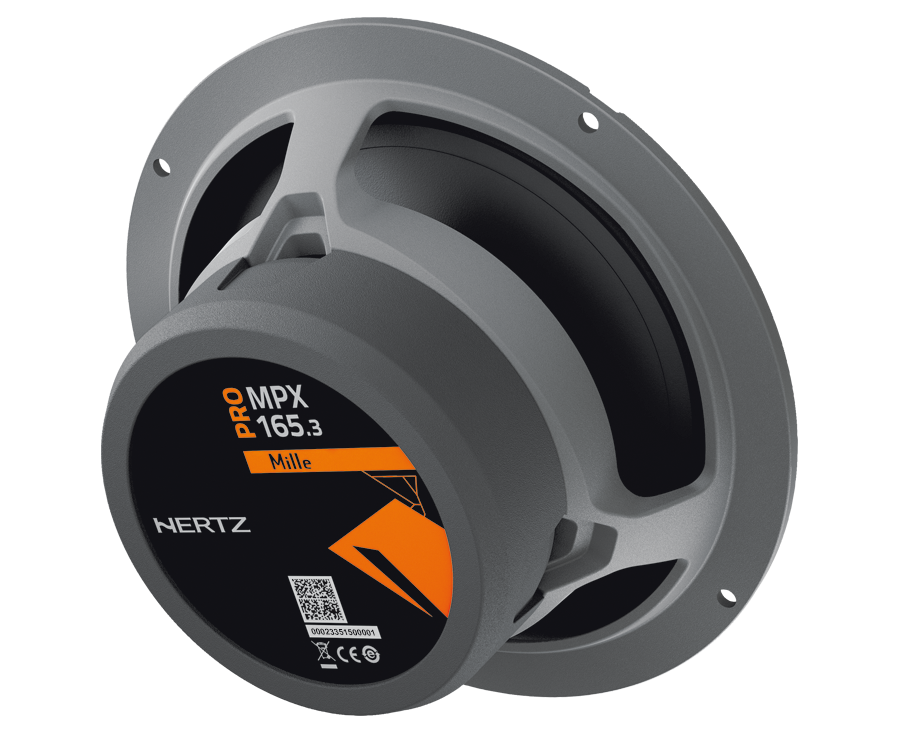

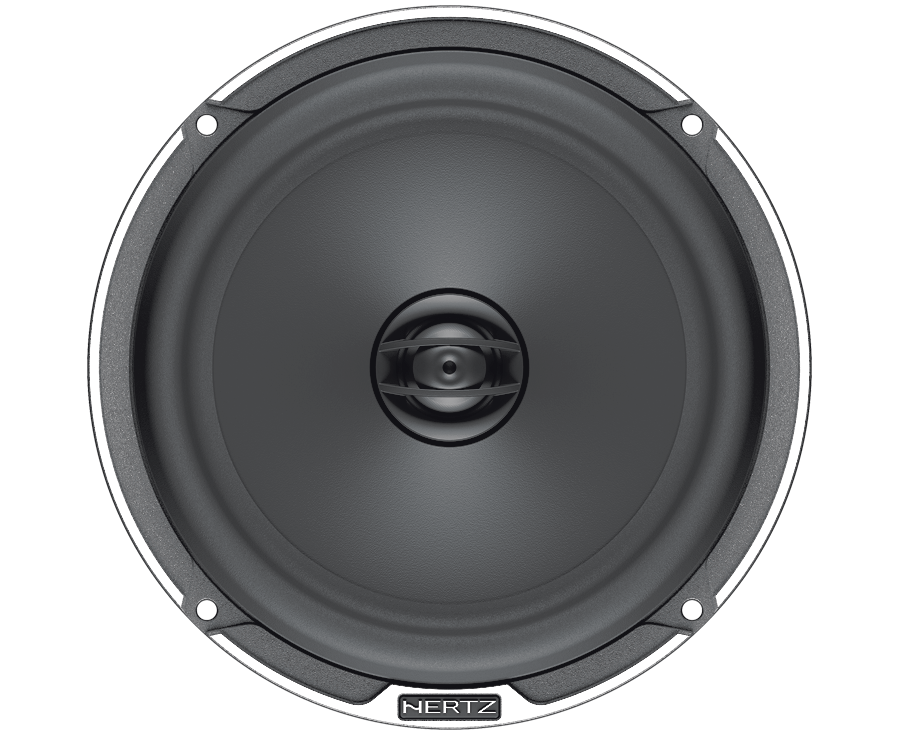

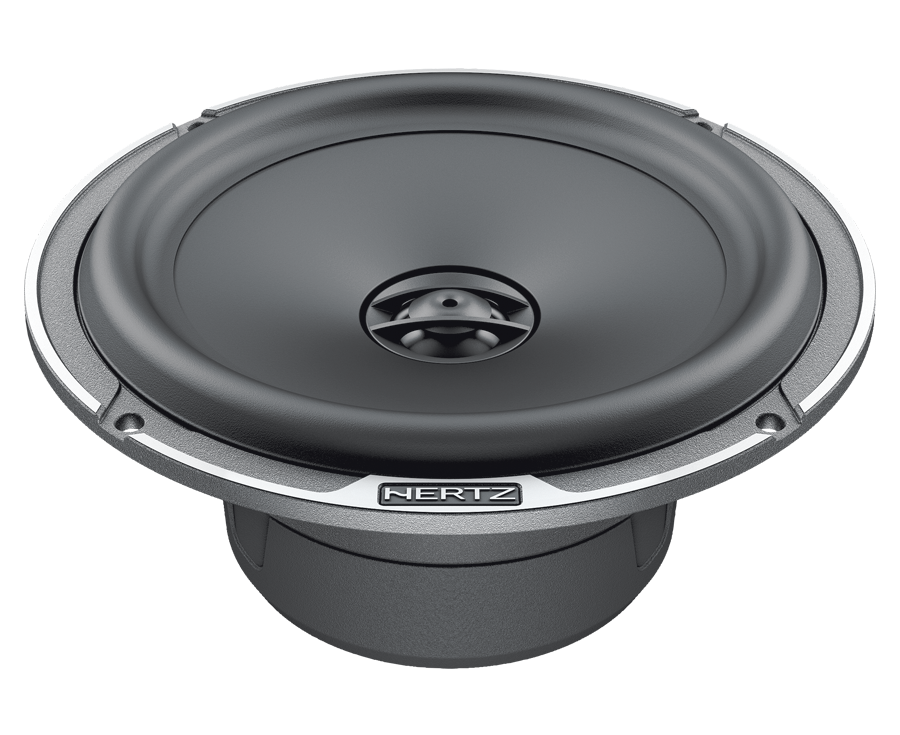

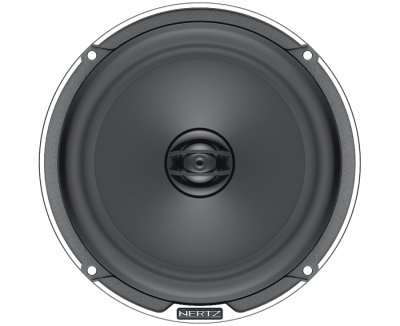

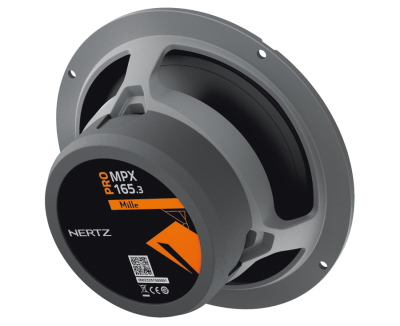

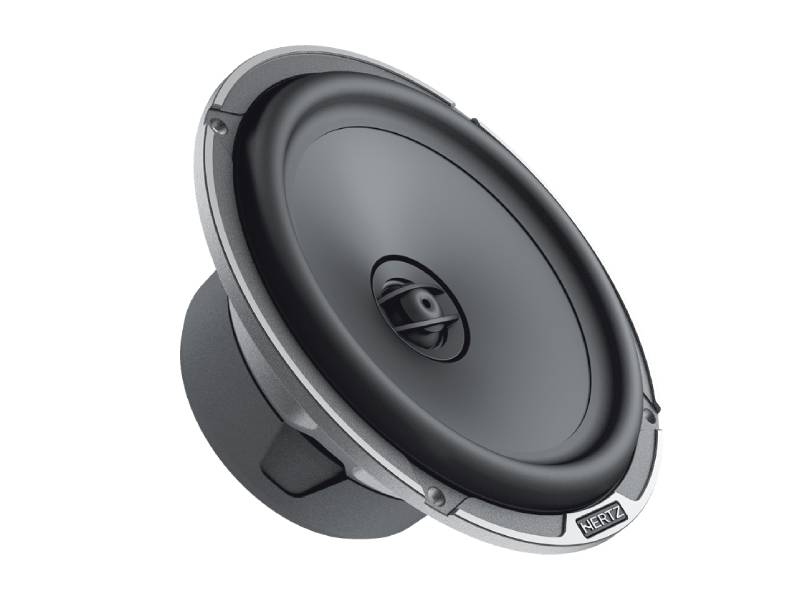

Hertz 4 Ohm Car Audio Coaxial Speaker - MPX165.3


Hertz 4 Ohm Car Audio Coaxial Speaker - MPX165.3
Hertz 4 Ohm Car Audio Coaxial Speaker - MPX165.3
Hertz 4 Ohm Car Audio Coaxial Speaker - MPX165.3
Hertz 4 Ohm Car Audio Coaxial Speaker - MPX165.3
Hertz 4 Ohm Car Audio Coaxial Speaker - MPX165.3
Black Friday Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price$439.99
Savings$70.00
Our Price $369.99 CAD
Sale Ends : January 31, 2025
On Sale
Availability
Schedule Delivery
Literature

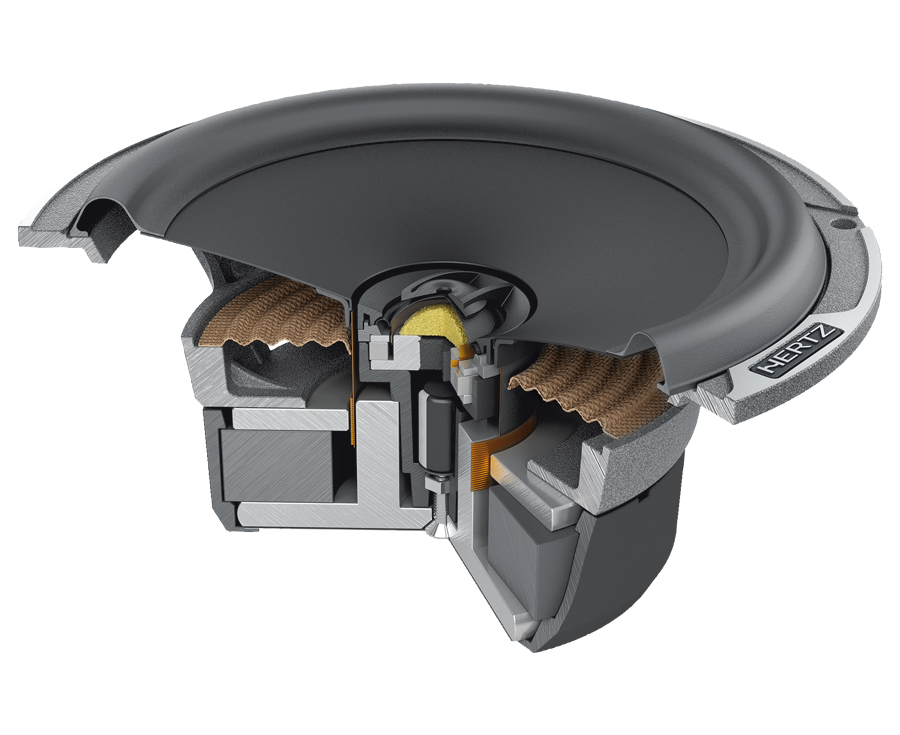

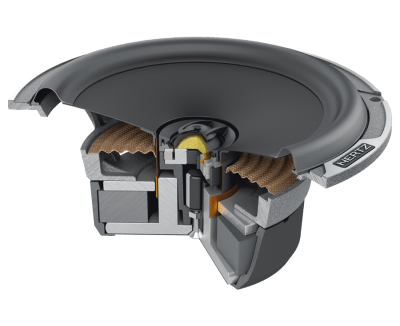

The  coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers  allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.

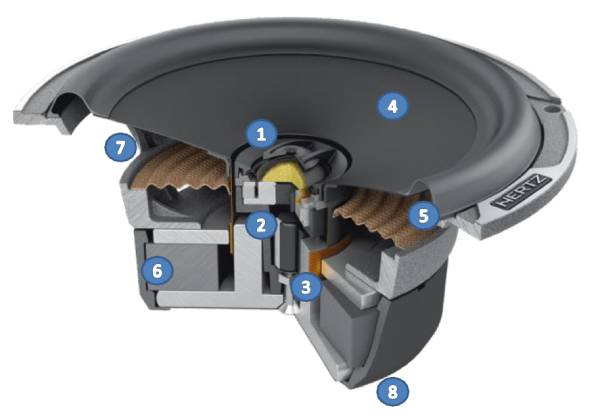

Features

  • CONCENTRIC COAXIAL TWEETER: built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
  • TWEETER SUPPORT WORKING AS A REAR CHAMBER: sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
  • 36 MM PURE COPPER WOOFER VOICE COIL: wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
  • PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
  • “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider midbass frequency. (Logo Boundary Free)
  • OVER-SIZED FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
  • BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
  • ANTI-VIBRATION RUBBER MAGNET COVER: to damp spurious vibrations.

Technologies

BOUNDARY FREE SURROUND

This technology provides the ability to achieve wider emission surface of the cone compared to speakers with same diameter; that way, the cone manages to move a bigger mass of air, so it produces more acoustic pressure. This special surround is built from highly pure IIR butyl rubber, ensuring extraordinary thermal and mechanical linearity.

Accessories

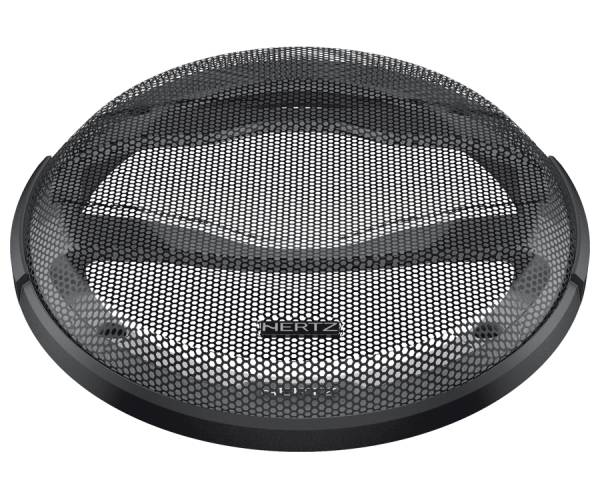

Grille Optional

Data table
Power Handling - Peak W 200
Power Handling - Continuous W 100
Impedance Ω 4
Frequency response Hz 45 ÷ 21,5k
Sensitivity dB SPL 92
Woofer size mm (in.) 165 (6.5)
Tweeter size mm (in.) 25 (1)
Woofer Voice Coil Ø mm (in.) 36 (1.42)
Tweeter voice coil Ø mm (in.) 20 (0.8)
Woofer magnet High density flux ferrite
Tweeter magnet Neodymium
Woofer cone Pressed-pulp cone with cotton fibers
Tweeter dome Tetolon
