Hertz X690

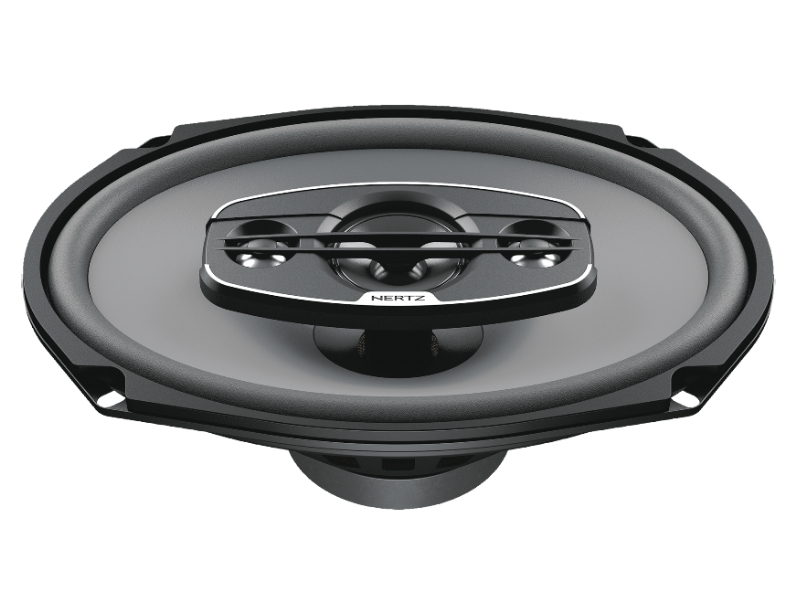

Hertz 6"x9" Uno Coaxial 4Way Speaker - X690


Hertz 6"x9" Uno Coaxial 4Way Speaker - X690
Black Friday Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price$89.99
Savings$20.00
Our Price $69.99 CAD
Sale Ends : January 31, 2025
On Sale
Availability
Schedule Delivery
Literature

Uno coaxials

For our fans seeking strong emotions who have a 6”x9” OEM setup, Hertz offers the X 690, a 4 way monster with a power handling of 340 W. The double 15 mm piezoelectric super-tweeter with PEI dome extends the frequency response above 20 kHz, maximizing the stereo image.

Features

  • Double 15 mm piezoelectric super-tweeter with PEI dome to extend the frequency response above 20 kHz.
  • 40 mm PEI tweeter with ferrite motor, for a brilliant reproduction of mid-high frequencies and compactness.
  • Tweeter and super-tweeter faceplate optimized for exceptional off-axis performance.
  • High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
  • Foam surround combining high sensitivity and deep bass response.
  • Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
  • High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
  • Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
Specifications
Power Handling - Peak W340
Power Handling - Continuous W85
Impedance Ω4
Frequency response Hz45 ÷ 22k
Sensitivity dB SPL 94
Woofer size mm (in.)6 x 9
Tweeter size mm (in.)40 (1.6)
Supertweeter size mm (in.)2 x 15 (0.6)
Woofer Voice Coil Ø mm (in.)25 (1)
Tweeter voice coil Ø mm (in.)20 (0.8)
Woofer magnetHigh density flux ferrite
Tweeter magnetFerrite
Woofer coneWater-repellent pressed paper
Tweeter domePEI
Supertweeter domePEI
