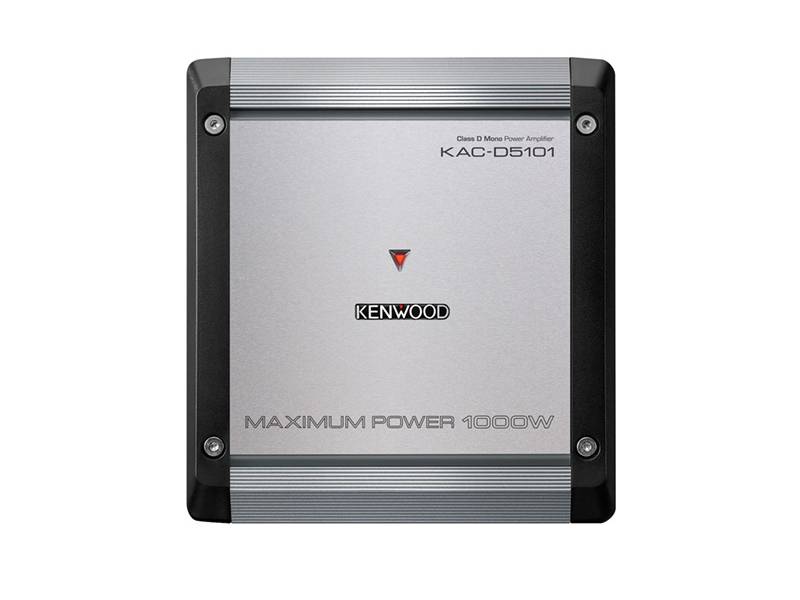

Kenwood KAC-D5101

Kenwood Class D Mono Power Amplifier - KAC-D5101


Kenwood Class D Mono Power Amplifier - KAC-D5101
Boxing Day Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Our Price $329.00 CAD
Buy Online
Availability
Schedule Delivery

  • Max Power 1000W

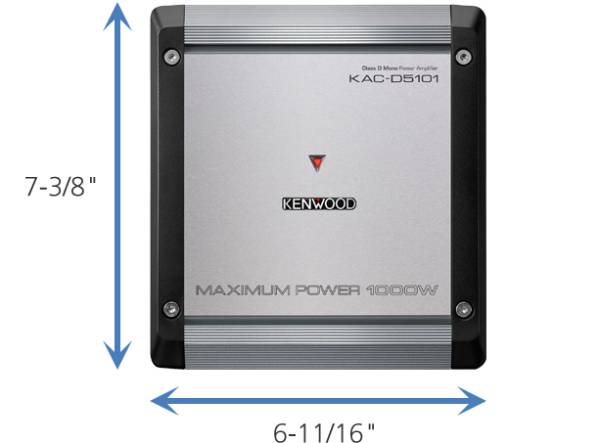

  • Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
  • Variable Low Pass Filter
  • Bass Boost

Key Features

  • CTA-2006 Compliant
  • 2 Ohms Load Capability
  • Speaker Level Input with Signal Sensing Turn-on
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

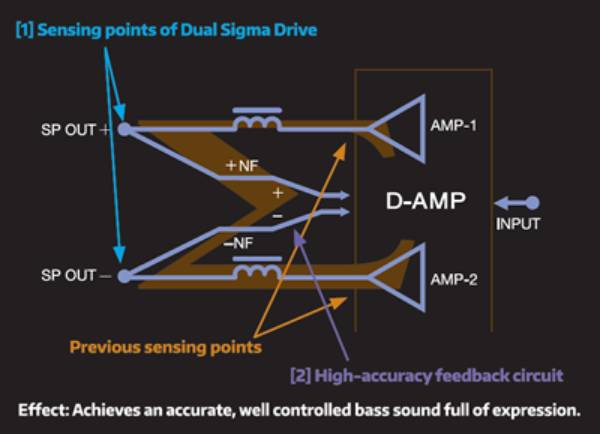

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Small Size Big Power

The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

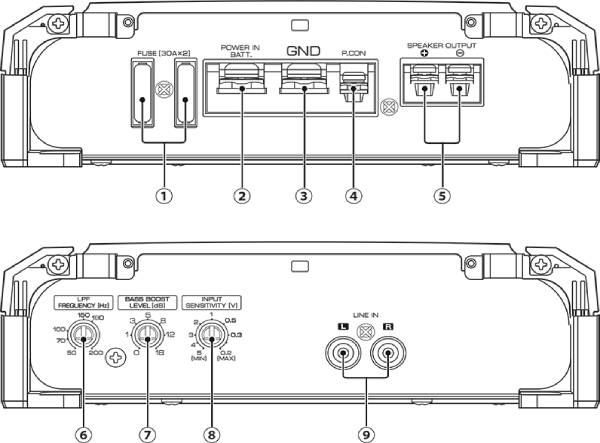

  1. Fuse (30A x 2)
  2. Battery Terminal (Power IN BATT.)
  3. Ground Terminal (GND)
  4. Power Control Terminal (P.CON)
  5. Speaker Output Terminals
  6. LPF Frequency Control
  7. Bass Boost Level Control
  8. Input Sensitivity Control
  9. Line In Terminal
CTA-2006 Primary Ratings
Power Output 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio 85dBA (Reference: 1Watt into 4Ohms)
Rated Power Output at 14.4V
SUB (4 Ohms) 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
SUB (2 Ohms) 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
Specifications
Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-200Hz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
AUDIO SECTION
Low-Pass Filter 50Hz-200Hz, -24dB/oct
Bass Boost 40Hz, 0dB - +18dB
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals
Battery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General
Dimensions(WxHxD) 6-11/16 x 2-3/16 x 7-3/8 [inch]
Operating Voltage 14.4V（11-16V allowable）
Current Consumption 34 [A]
Maximum Power Output
MAX POWER 1000W
Specifications
Bridged Connection -
AUDIO SECTION
High-Pass Filter -
