| Price | $449.00 |
| Savings | $51.00 |
| Our Price |
$398.00 CAD
Sale Ends : August 31, 2025 On Sale
|
Product Overview

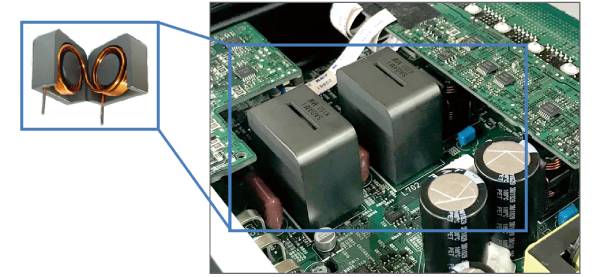

Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.

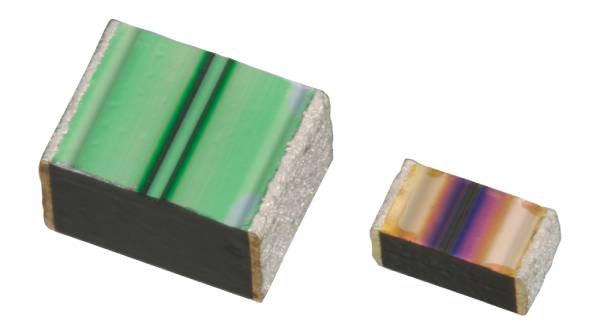

High Quality Capacitors
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

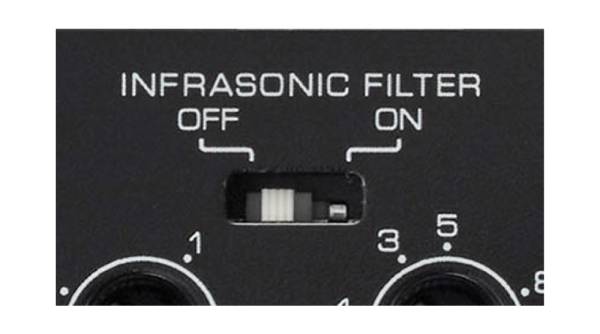

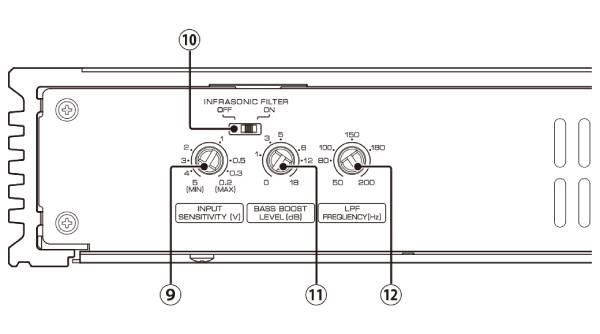

Infrasonic Filter (ISF)
When Infrasonic Filter Switch is turned on,the amplifier cuts off the low frequencies below 25Hz, which effects to make the amplifier’s power supply and output devices more efficient with clear bass sound.

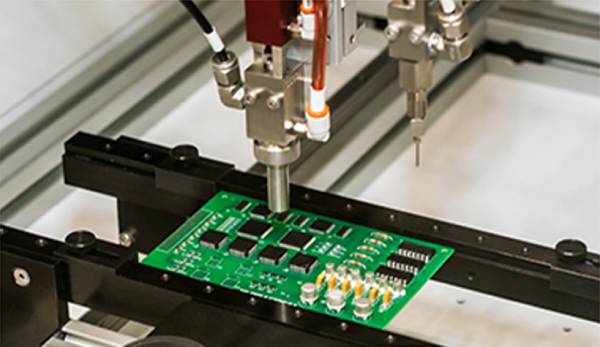

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.

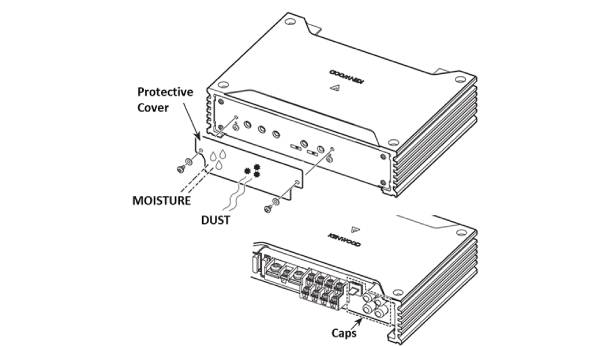

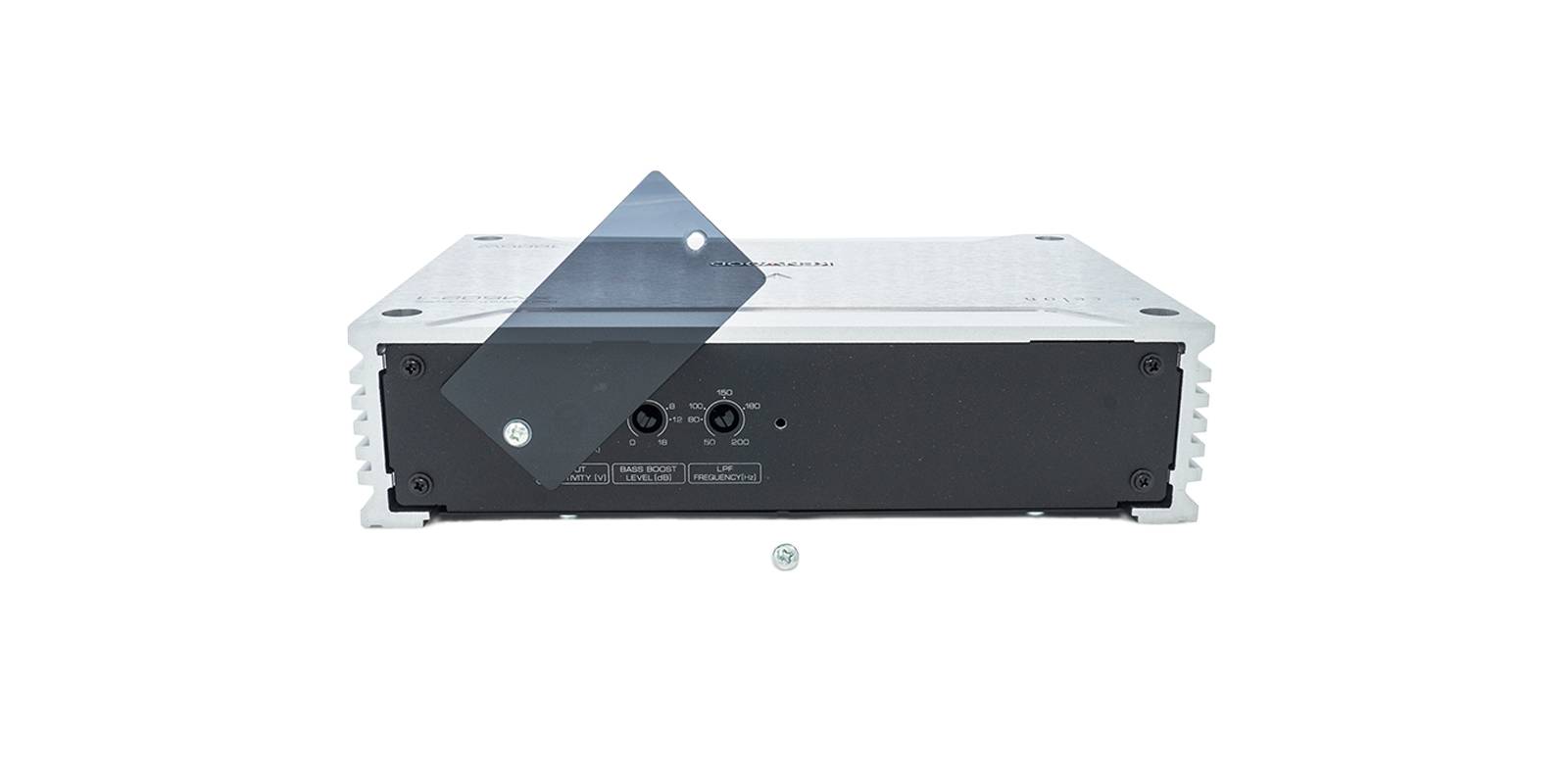

Protective Caps and Cover
All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.

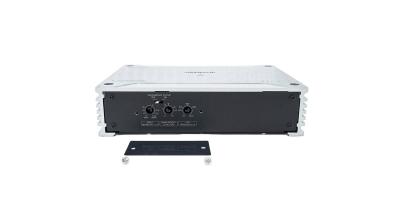

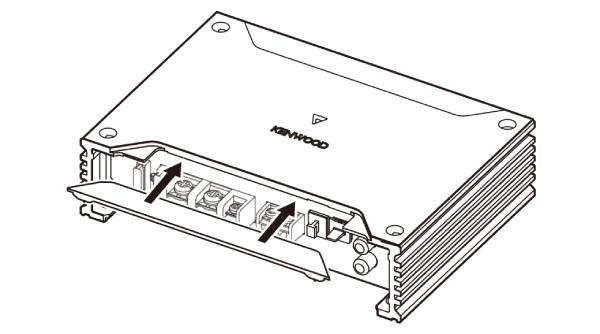

Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.
One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Variable Gain Circuit
Improved Signal to Noise Ratio

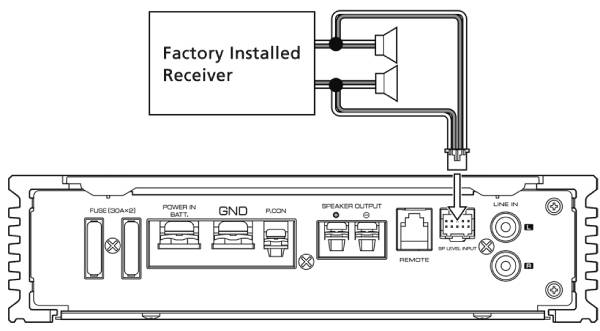

Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.

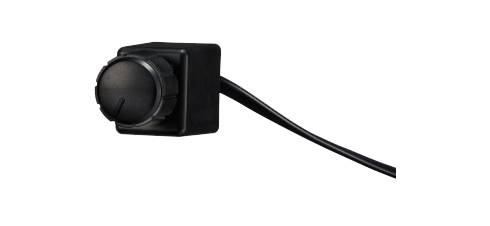

Optional Wired Level Control Ready
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
*Control unit does not support conformal coarting or water-proof.
Key Features
| Rated Power Output at 14.4V | |
|---|---|
| SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD) |
| A/B (Bridged 4Ohms) | - |
| Specifications | |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) |
| Frequency Response | - |
| Input Impedance | 10k ohm |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Bridged Connection | - |
| AUDIO SECTION | |
| Low-Pass Filter | 50Hz-200Hz, -24dB/oct |
| High-Pass Filter | - |
| Bass Boost | 40Hz, 0dB - +18dB |
| Infrasonic Filter | 25Hz, -24dB |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
| Terminals | |
| Battery & Ground | M6 Screw Type Terminal Block |
| Speaker Output | M4 Screw Type Terminal Block |
| General | |
| Operating Voltage | 14.4V（11-16V allowable） |
| Current Consumption | 25 [A] |
| Rated Power Output at 14.4V | |
| SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD) |
| A/B (2 Ohms) | - |
| A/B (4 Ohms) | - |
| Maximum Power Output | |
| MAX POWER | 1000W |
| CTA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 85dBA (Reference: 1Watt into 4Ohms) |
| Power Output | 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
| General | |
| Weight | 3.3 lbs ( 1.5kg) |
| Dimensions(WxHxD) | (W) 213mm x (H) 53mm x (D) 149mm |
| Dimensions(WxHxD) | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
