Authorized Dealer
Price Match Guarantee
| Our Price | $1,049.00 CAD |

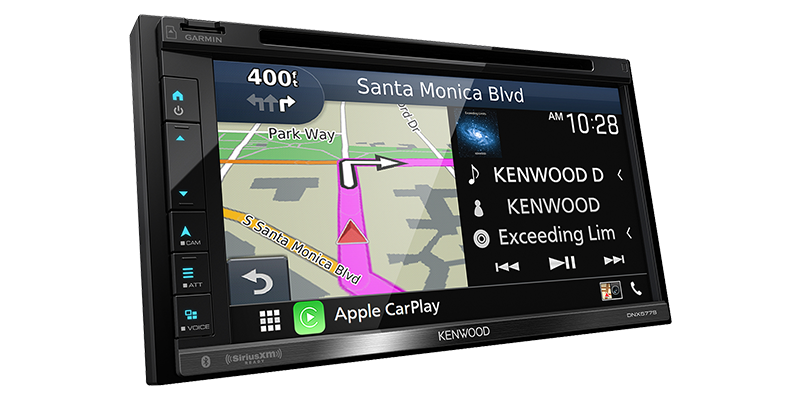

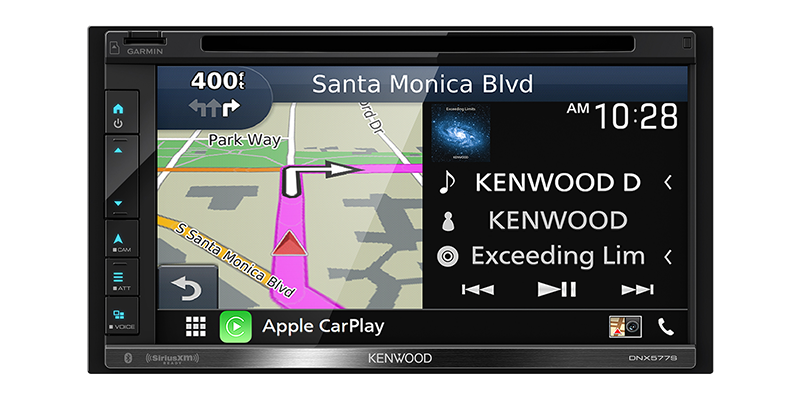

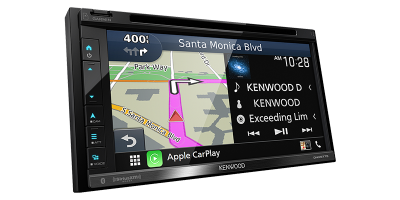

Advanced Navigation
Equipped with the industry leading Garmin navigation software,offering a variety of display options to make your driving easier.

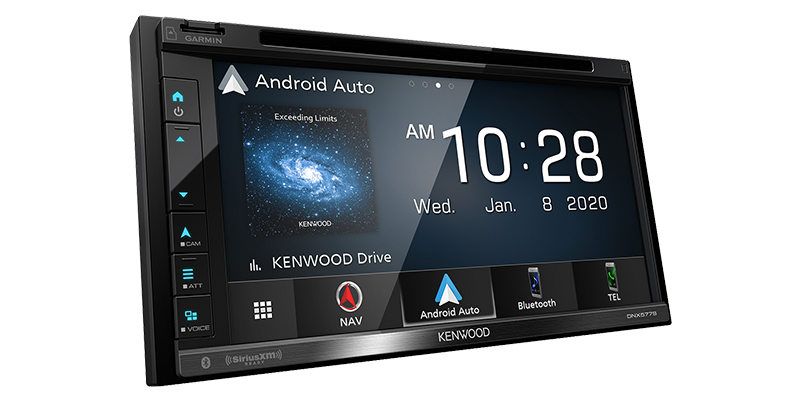

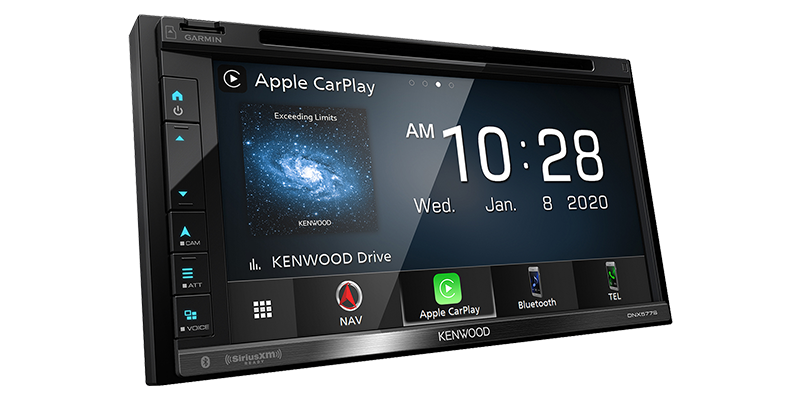

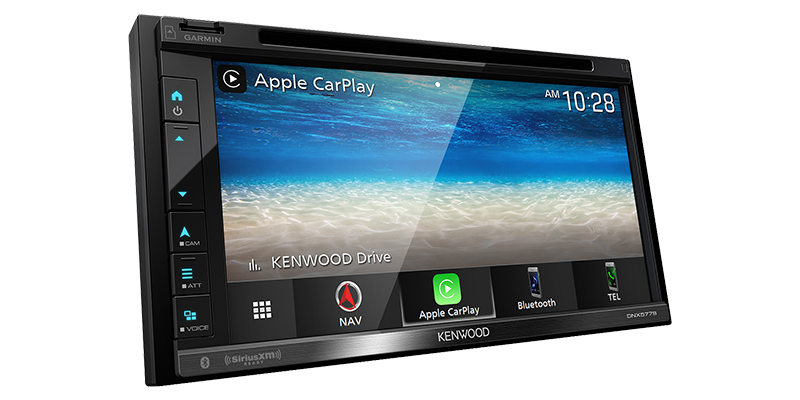

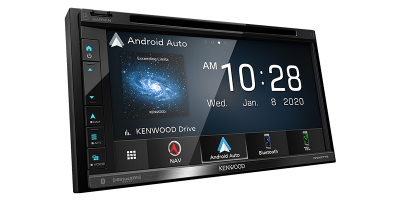

Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
Additional Features

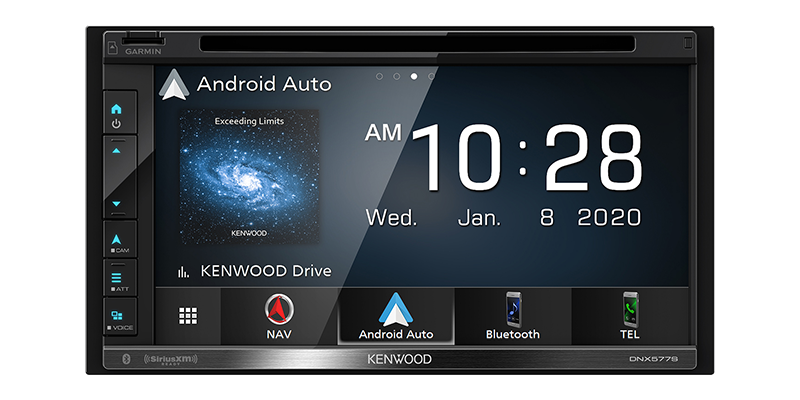

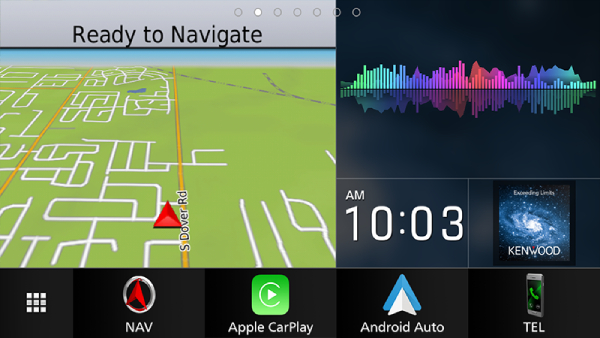

Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.

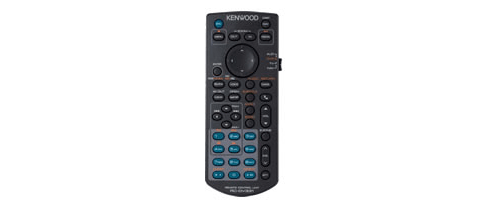

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
| Monitor Section | |
|---|---|
| Picture size | 6.75 inches(diagonal) wide |
| W x H | 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch |
| Display system | TN LCD panel |
| Drive system | TFT active matrix system |
| Number of pixels | 1,152,000 |
| Number of pixels | 800H x 480V x RGB |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB striped arrangement |
| Back lighting | LED |
| DVD Section | |
| D/A Converter | 24 / 32Bit |
| Audio Decoder | Linear PCM |
| Audio Decoder | Dolby Audio |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Wow & Flutter | Below Measurable Limit |
| Frequency response 96k Sampling | 20 - 44,000 Hz |
| 48k Sampling | 20 - 22,000 Hz |
| 44.1k Sampling | 20 - 20,000 Hz |
| Total harmonic distortion 1kHz | 0.010% |
| Signal to Noise ratio | 90.5dB (DVD-Video 96k) |
| Dynamic range | 89dB (DVD-Video 96k) |
| DISC Format | DVD-Video / VIDEO-CD / CD-DA |
| Quantifying bit number | 16 / 20 / 24bit |
| USB I/F Section | |
| USB Standard | USB2.0 High Speed |
| File System | FAT 16/32, exFAT, NTFS |
| Maximum Power Supply Current | DC5V=1.5A |
| D/A Converter | 24/32Bit |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| SD Section | |
| SD Standard | SD / SDHC / SDXC |
| Compatible File System | FAT 16/32, exFAT, NTFS |
| Capacity | Maximum 2T Byte |
| Data Transfer Rate | Maximum 25MB/sec |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
| Bluetooth Section | |
| Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 2.480 GHz |
| RF Output Power (E.I.R.P.) | 4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Audio Codec | SBC / AAC |
| Multi Profile Support | Multi Profile |
| Profile | HFP (V1.7) (Hands Free Profile) |
| Profile | SPP (Serial Port Profile) |
| Profile | A2DP (Advanced Audio Distribution Profile) |
| Profile | AVRCP (V1.6) (Audio/Video Remote Control Profile) |
| Profile | - |
| Profile | PBAP (Phonebook Access Profile) |
| DSP Section | Graphics equalizer |
| BAND | 13Band |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
| Gain | 2Way X'Over |
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| SLOPE | -6/-12/-18/-24[dB/Oct.] |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
| SLOPE | -6/-12/-18/-24[dB/Oct.] |
| SLOPE | Position |
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
| Gain | -8 to 0dB |
| Subwoofer Level | -50 to 10dB |
| FM | |
| Frequency Range | 87.9MHz - 107.9MHz |
| (Frequency step) | (200kHz) |
| Usable sensitivity | 9.3dBf |
| S/N30dB | 0.8V/75 |
| Quieting sensitivity | 10.2dBf |
| DIN S/N 46dB | 1.13V / 75Ohms |
| Frequency response | 30Hz - 15kHz |
| (±3.0dB) | 30Hz - 15kHz |
| S/N (dB) | 65dB (MONO) |
| Selectivity | Over 80dB (±400kHz) |
| Stereo separation | 45dB (1kHz) |
| AM | |
| Frequency Range | 530kHz - 1700kHz |
| (Frequency step) | (10kHz) |
| Usable sensitivity | 28dB |

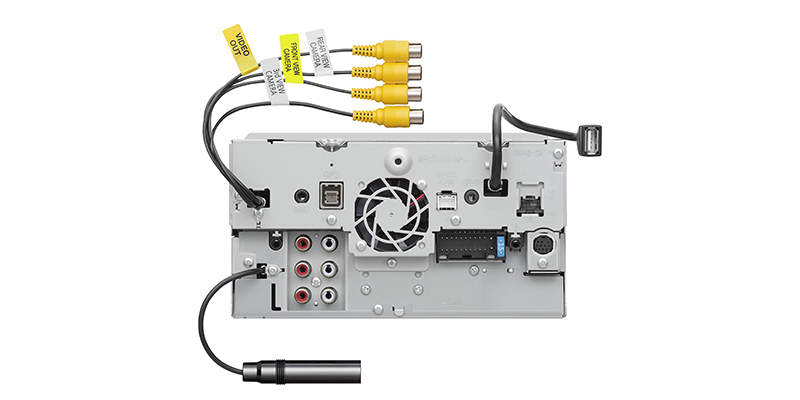

| Video | |
| Color system of external video input | NTSC/PAL |
| External video input level (RCA jacks) | - |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
| External audio max input level (RCA jacks) | - |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
| Audio Output level (RCA jacks) | - |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
| Analog RGB input | - |
| AUDIO | |
| Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power |
| Typical Power Output (Front&Rear) | (at less than 1%THD) |
| Typical Power Output (Front&Rear) | 22Wx4 |
| Output frequency band | 20 - 88,000Hz |
| Preout level (V) | 4V / 10kOhms |
| Preout impedance () | =< 300 Ohms |
| Speaker Impedance () | 4-8 Ohms |
| Navigation Section | |
| Receiver | High-sensitivity GPS receiver |
| Receiving frequency | 1575.42MHz (C/A code ) |
| Acquisition Times | Cold: 29 seconds(typ) |
| Acquisition Times | All satellites at -130dBm Without aiding |
| Update Rate | 1/second, continuous |
| Accuracy | Position: < 2.5meters,CEP, at -130dBm |
| Accuracy | Velocity: 0.1meter/sec |
| Positioning Method | GPS |
| Antenna | External GPS Antenna |
| Installation Dimensions WxHxD | 178mm x 100mm x 155mm |
| Installation Dimensions WxHxD | 7 x 3-15/16 x 6-1/8 inch |
| (with Sleeve) | 182mm x 112mm x 153mm |
| (with Sleeve) | 7-3/16 x 4-7/16 x 6 inch |
| Weight Main unit | 2.1 kg |
| Weight Main unit | 4.6 lb |
| Weight Main unit | (Excluding trim plate and sleeve) |
