| Price | $249.00 |
| Savings | $51.00 |
| Our Price |
$198.00 CAD
Sale Ends : February 28, 2026 On Sale
|

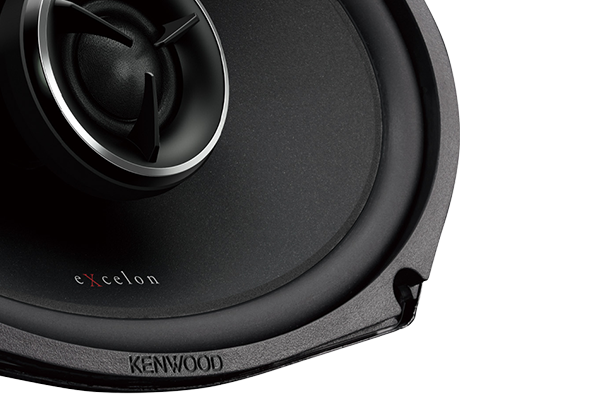

Enhanced Rigidity
Adjusting the composition of the materials used in the woofer cone, the rigidity of the diaphragm increases and realized the accurate sound signals.

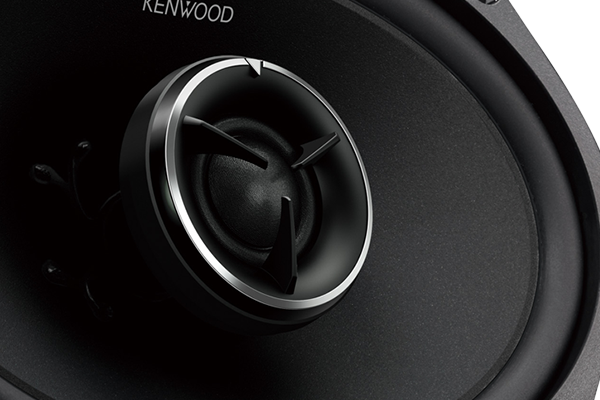

1-3/16" Tweeter
The large 1-3/16" Tweeter widens the sound field and controls interference, providing a rich vocal sound in front through the 6x9" speaker.

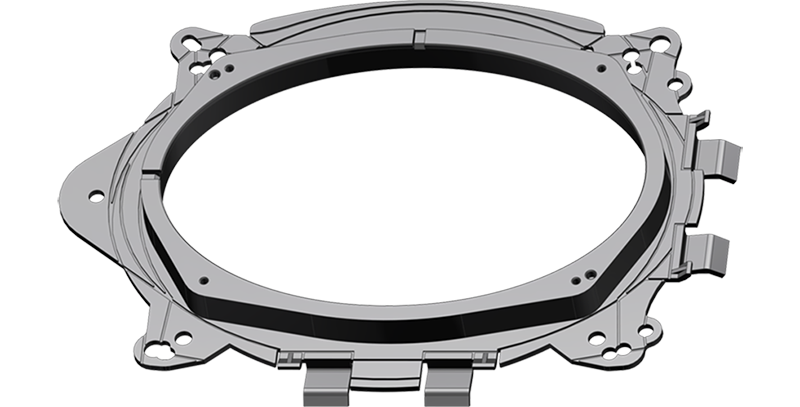

Woofer Multi-bracket
6x9" multi-bracket is included to make installation easier in a varierty of vehicle types.
| Dimension | |
|---|---|
| Depth | 98.5 mm , 3-7/8 inch |
| Height | 193.4mm , 7-5/8 inch |
| Width | 266.4mm , 10-1/2 inch |
| Tweeter | |
| Magnet | Nd |
| Size | 30 mm , 1-3/16 inch |
| Diaphragm | Soft Dome |
| Cosmetic | |
| Basket | Steel |
| Magnet | Ferrite |
| Surround | Rubber |
| Size | 153x229 mm , 6x9 inch |
| Diaphragm | P.P. Cone |
| CTA Spec (CTA-2031 Compliant) | |
| FREQUENCY RESPONSE | 46 Hz~21,000 Hz |
| SENSITIVITY | 84 dB/ W at 1 m |
| IMPEDANCE | 3 Ω |
| RMS POWER | 130 Watts RMS |
| ELECTRICAL | |
| PEAK INPUT POWER | 300 W |
| Accessory | |
| Spacer | Spacer |
| Spacer | 2 pcs |
| BRACKET | Multi Bracket |
| BRACKET | 2 pcs |
| GRILLE | 2 pcs |
| without Grille | |
| Mounting Depth | 70 mm , 2-3/4 inch |
| Tweeter Height | 19.5 mm , 3/4 inch |
| Cut-out Diameter | 217 x 145 mm , 8-9/16 x 5-11/16 inch |
| Depth | 89.5 mm , 3-1/2 inch |
| Height | 164 mm , 6-7/16 inch |
| Width | 236.4 mm , 9-5/16 inch |
| Screw sets | |
| Warranty Card | ○ , 1 pc |
| Instruction Manual with Template | ○ , 1 pc |
| Adhesive Tape | ○ , 1 set |
| Speaker Cord | 0.3 m , 1 set |
| Cushion | 10 x 680 x t15：PU , 1set |
| Cushion | 25 x 110 x t5：EPDM , 2pcs |
| Cushion | 10 x 800 x t3：EPDM , 1set |
| Cushion | 10 x 680 x t3：EPDM , 1set |
| Spring Washer | Φ4 , 8 pcs |
| Flat Washer | M4 , 8 pcs |
| Flat Washer | Φ4 , 8 pcs |
| Hexagon Nut | M4 , 8 pcs |
| Hexagon Head Bolt | M4 x 70 mm , 8 pcs |
| Binding Head Tapping Screw | Φ4 x 25 mm , 8 pcs |
| Binding Head Tapping Screw | Φ4 x 16 mm , 8 pcs |
| Binding Head Tapping Screw | Φ4 x 40 mm , 8 pcs |
