| Price | $219.00 |
| Savings | $51.00 |
| Our Price |
$168.00 CAD
Sale Ends : February 28, 2026 On Sale
|
Enhanced Rigidity
Adjusting the composition of the materials used in the woofer cone, the rigidity of the diaphragm increases and realized the accurate sound signals.
1" Tweeter
The 1" Tweeter widens the sound field and controls interference, providing a rich vocal sound in front through the 5-1/4" speaker.

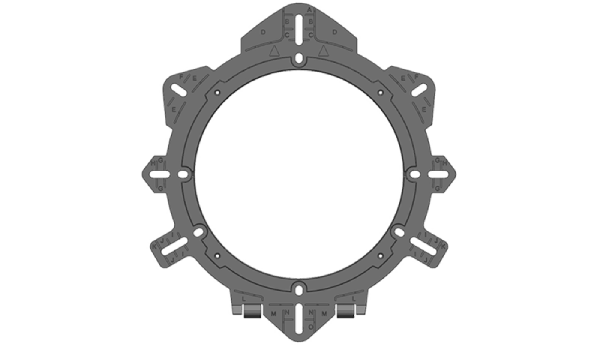

Woofer Multi-Bracket
Multi-bracket is included to make installation easier in a varierty of vehicle types.
| Screw sets | |
|---|---|
| Instruction Manual with Template | ○ , 1 pc |
| Warranty Card | ○ , 1 pc |
| Adhesive Tape | ○ , 1 set |
| Speaker Cord | 0.3 m , 1 set |
| Cushion | 10 x 680 x t15：PU , 1set |
| Cushion | 25 x 110 x t5：EPDM , 2pcs |
| Cushion | 10 x 800 x t3：EPDM , 1set |
| Cushion | 10 x 680 x t3：EPDM , 1set |
| Spring Washer | Φ4 , 8 pcs |
| Accessory | |
| Spacer | 2 pcs |
| BRACKET | Multi Bracket |
| BRACKET | 2 pcs |
| GRILLE | 2 pcs |
| without Grille | |
| Mounting Depth | 70 mm , 2-3/4 inch |
| Tweeter Height | 19.5 mm , 3/4 inch |
| Cut-out Diameter | 217 x 145 mm , 8-9/16 x 5-11/16 inch |
| Depth | 89.5 mm , 3-1/2 inch |
| Height | 164 mm , 6-7/16 inch |
| Width | 236.4 mm , 9-5/16 inch |
| Dimension | |
| Depth | 98.5 mm , 3-7/8 inch |
| Height | 193.4mm , 7-5/8 inch |
| Width | 266.4mm , 10-1/2 inch |
| Tweeter | |
| Magnet | Nd |
| Size | 30 mm , 1-3/16 inch |
| Diaphragm | Soft Dome |
| Cosmetic | |
| Magnet | Ferrite |
| Basket | Steel |
| Surround | Rubber |
| Size | 153x229 mm , 6x9 inch |
| Diaphragm | P.P. Cone |
| CTA Spec (CTA-2031 Compliant) | |
| FREQUENCY RESPONSE | 46 Hz~21,000 Hz |
| SENSITIVITY | 84 dB/ W at 1 m |
| IMPEDANCE | 3 Ω |
| RMS POWER | 130 Watts RMS |
| ELECTRICAL | |
| PEAK INPUT POWER | 300 W |
| Accessory | |
| Spacer | Spacer |
| Screw sets | |
| Binding Head Tapping Screw | Φ4 x 25 mm , 8 pcs |
| Binding Head Tapping Screw | Φ4 x 16 mm , 8 pcs |
| Binding Head Tapping Screw | Φ4 x 40 mm , 8 pcs |
| Hexagon Head Bolt | M4 x 70 mm , 8 pcs |
| Hexagon Nut | M4 , 8 pcs |
| Flat Washer | M4 , 8 pcs |
| Flat Washer | Φ4 , 8 pcs |
