| Our Price | $655.00 CAD |

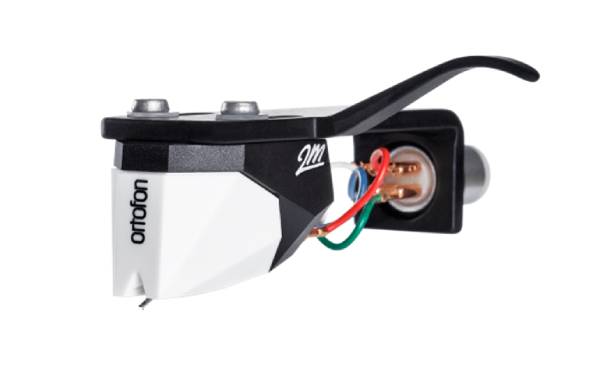

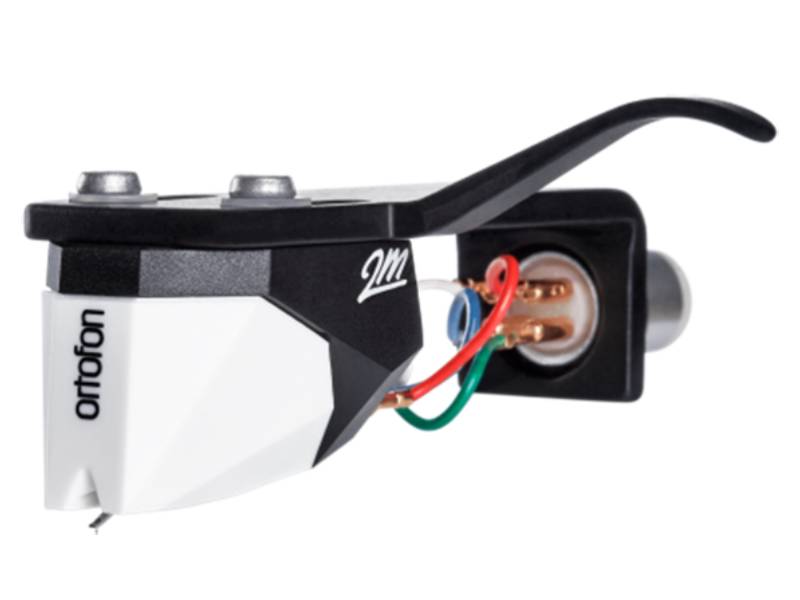

With the 2M Premounted, it’s never been easier to experience
The 2M Premounted is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm. The quality of the SH-4 headshell is sturdy and rigid, yet the design emphasizes a slim and delicate form factor. The strong, lightweight headshell has an ergonomic design with a long finger lift that is easy to pick up.
Features:
| Specifications | |
|---|---|
| 2M Premounted cartridge weight | 16.7 g |
| Cartridge colour, body/stylus | Black/White |
| Recommended load capacitance | 150-300 pF |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 350 mH |
| Internal impedance, DC resistance | 700 Ohm |
| Tracking angle | 20° |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking force range | 1.6-2.0 g (16-20 mN) |
| Stylus tip radius | R18 µm |
| Stylus type | Nude Spherical |
| Tracking ability at 315Hz at recommended tracking force | 70 µm Compliance, dynamic, lateral - 18 µm/mN |
| Frequency response | 20-20.000 Hz + 3 / - 1 dB |
| Output voltage | 1000 Hz, 5cm/sec. - 4 mV |
