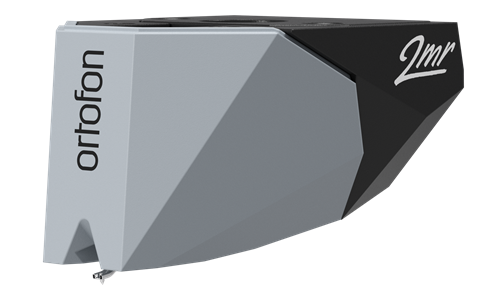

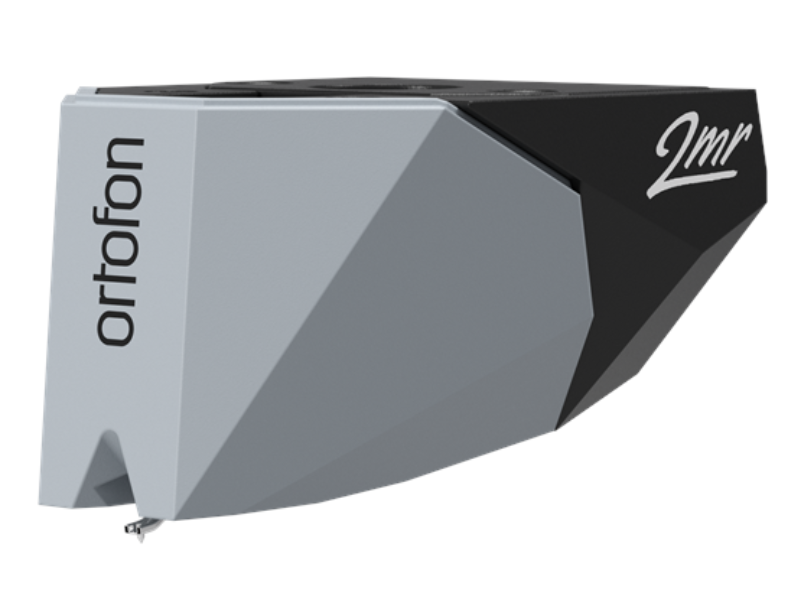

The 2MR for optimized fitting on low-profile turntables
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
2MR cartridge key features
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
Specifications | |
---|---|
Compliance, dynamic, lateral | 22 µm/mN |
Tracking ability at 315 Hz | 70 µm |
Output voltage at 1 kHz, 5 cm/sec. | 4 mV |
Cantilever material | Aluminium |
Stylus type | Spherical |
Recommended tracking force | 1.8 g |
Load resistance | 47 kOhm |
Load capacitance | 150 – 300 pF |
Cartridge weight | 6 g |
Cartridge height | 14 mm |
