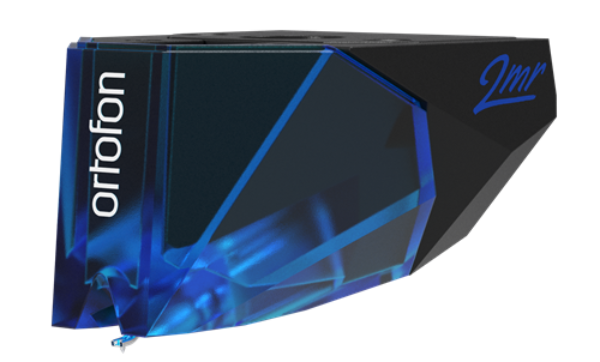

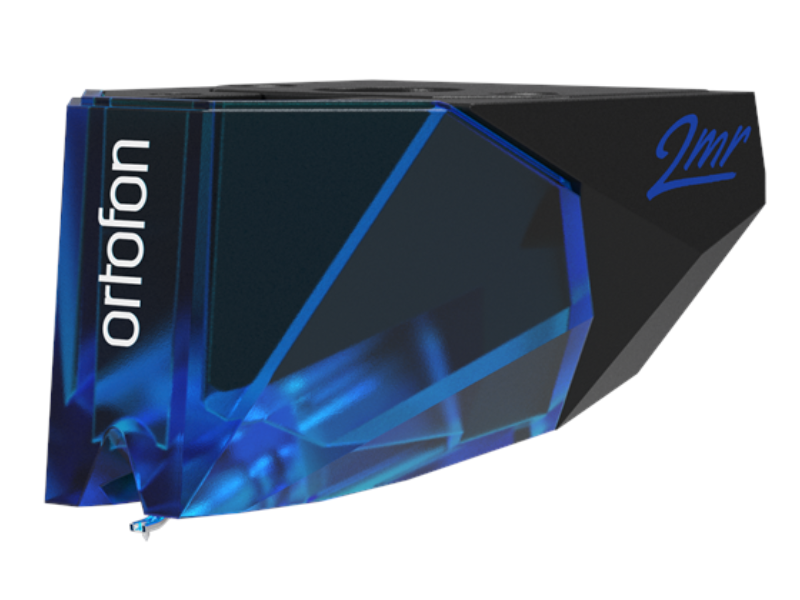

2MR: Designed for optimized fitting on low-profile turntables
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
2MR cartridge key features
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
Specifications | |
---|---|
Channel separation at 15 kHz | 15 dB |
Channel separation at 1 kHz | 25 dB |
Channel balance at 1 kHz | 1.5 dB |
Output voltage at 1000 Hz, 5cm/sec. | 5.5 mV |
Cartridge colour, body/stylus | Black/Blue |
Recommended load capacitance | 150-300 pF |
Recommended load resistance | 47 kOhm |
Internal inductance | 700 mH |
Internal impedance, DC resistance | 1.3 kOhm |
Tracking angle | 20° |
Tracking force, recommended | 1.8 g (18 mN) |
Tracking force range | 1.6-2.0 g (16-20 mN) |
Stylus tip radius | r/R 8/18 µm |
Stylus type | Nude Elliptical |
Compliance, dynamic, lateral | 20 µm/mN20 µm/mN |
Frequency response | 20-20.000 Hz + 2 / - 1 dB |
Tracking ability at 315Hz at recommended tracking force | 80 µm |
2MR cartridge weight | 6 g |
