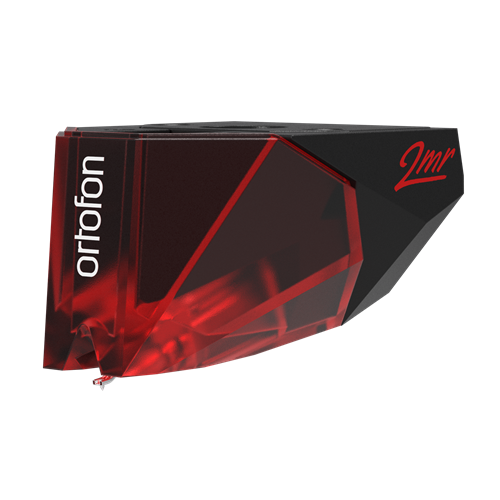

2MR: designed for optimized fitting on low-profile turntables
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.
2MR cartridge key features
- Slimline cartridge body effectively eliminates the need for tonearm spacers, shims or modifications on turntables needing a low form factor cartridge.
- High-performance motor system incorporating unique to Ortofon quad coils with split pole pins, delivering a clean detailed and true-to-life sound.
- 100% compatibility with the 2M styli Ortofon 2MR use the well-known 2M styli.
- Standard half inch mounting quick and easy mounting on the tonearms with just two screws.
- Full range setup 2MR ranges from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
Specifications | |
---|---|
Stylus tip radius | r/R 8/18 µm |
Stylus type | Elliptical |
Compliance, dynamic, lateral | 20 µm/mN |
Tracking ability at 315Hz at recommended tracking force | 70 µm |
Frequency response | 20-20.000 Hz + 3 / - 1 dB |
Channel separation at 15 kHz | 15 dB |
Channel separation at 1 kHz | 22 dB |
Channel balance at 1 kHz | 1.5 dB |
Output voltage at 1000 Hz, 5cm/sec. | 5.5 mV |
2MR cartridge weight | 6 g |
Cartridge colour, body/stylus | Black/Red |
Recommended load capacitance | 150-300 pF |
Recommended load resistance | 47 kOhm |
Internal inductance | 700 mH |
Internal impedance, DC resistance | 1.3 kOhm |
Tracking angle | 20° |
Tracking force, recommended | 1.8 g (18 mN) |
Tracking force range | 1.6-2.0 g (16-20 mN) |
