| Our Price | $1,430.00 CAD |

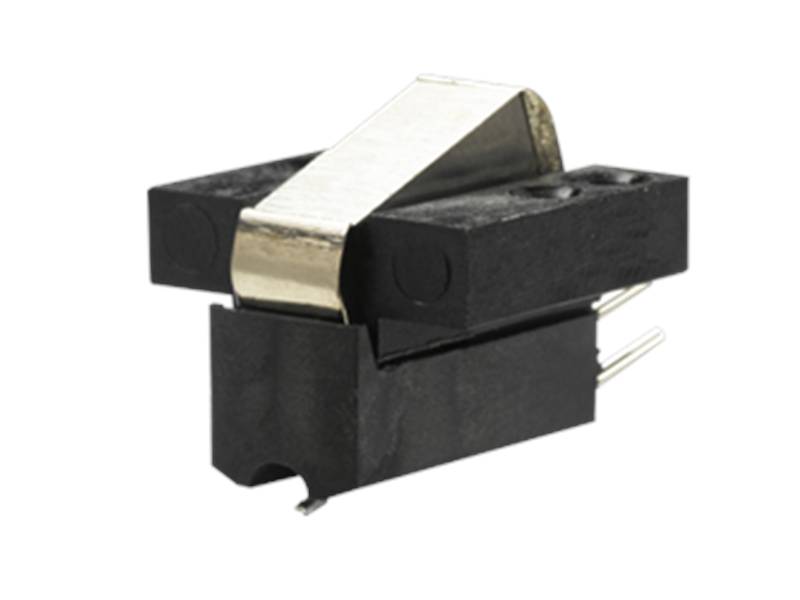

The SPU Classic NE is sold without the integrated headshell unit.
The SPU Classic NE is a Moving Coil (MC) cartridge with an elliptical stylus profile and provides more detailed sound reproduction and expansive imaging.
Listeners who wish to mount the SPU Classic NE on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Classic NE to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.
The ST-7 transformer is a perfect match for the SPU Classic NE cartridge.
| Specifications | |
|---|---|
| Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 20 dB |
| Channel separation at 15 kHz | > 10 dB |
| Frequency response | 20-20.000 Hz + 3/- 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 8 µm/mN |
| Stylus type | Nude elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 3.0-5.0 g (30-50 mN) |
| Tracking force, recommended | 4.0 g (40 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 2.0 ohm |
| Recommended load impedance | > 10 ohm |
| Coilwire material | High Purity Copper (OFC) |
| Cartridge colour | Black |
| Cartridge weight | 13 g |
