Pioneer TS-A693FH

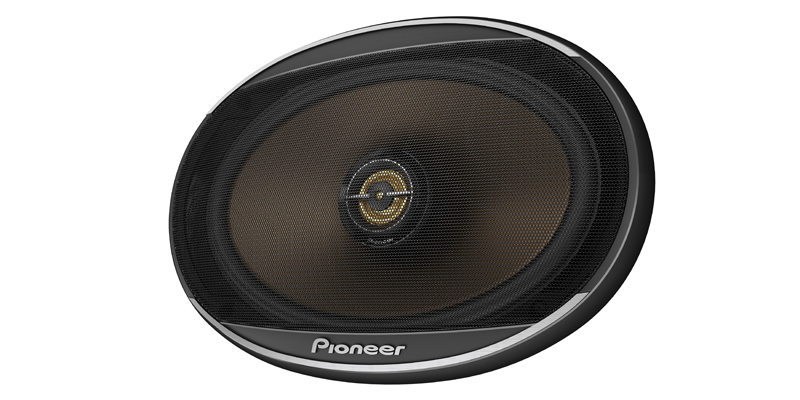

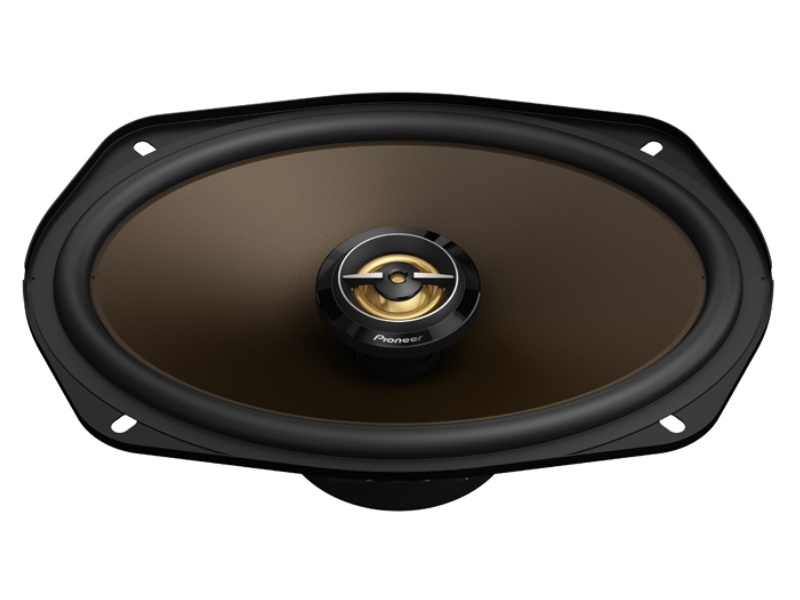

Pioneer 6" x 9" 2-way 460 W Max Power Coaxial Speakers - TS-A693FH


Pioneer 6" x 9" 2-way 460 W Max Power Coaxial Speakers - TS-A693FH
Pioneer 6" x 9" 2-way 460 W Max Power Coaxial Speakers - TS-A693FH
Pioneer 6" x 9" 2-way 460 W Max Power Coaxial Speakers - TS-A693FH
Black Friday Sale Now On
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Audiosource offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price$169.99
Savings$10.00
Our Price $159.99 CAD
Sale Ends : December 31, 2025
On Sale
Availability
Schedule Delivery
Literature

  • 460 Watts Max Power (95 Watts Nominal)
  • 18mm Polyetherimide (PEI) hard dome tweeter
  • 29 Hz to 49k Hz Frequency Range

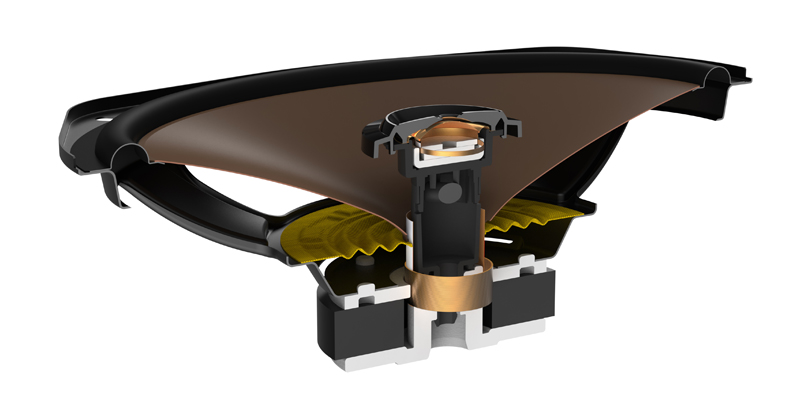

  • 6" x 9" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Pioneer patented P.F.S.S. (Progressive Flex Suspension System)(U.S. Patent 20,120,106,777)

What's in the Box

  • Two 6"x9" 2-way coaxial speakers
  • Two Pioneer Multi-Fit mounting brackets
  • Two protective Grilles
  • Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
  • Eight 1-1/8" Screws
  • Eight 3/8" Screws
  • Warranty information
Tweeter
Magnet Weight0.17
Warranty
Warranty (must be purchased from a Authorized Pioneer Dealer)1 year
Tweeter
Magnet MaterialNeodymium
Diaphragm MaterialFilm (PEI)
Diameter18 mm
TypeComponent Polyetherimide (PEI) hard dome tweeter
Woofer
Mounting Depth2-7/8" (Shallow basket)
Voice Coil wireCopper
Voice Coil BobbinGlass Imide
Magnet Weight11.39 oz
Magnet MaterialFerrite
Basket MaterialIron Plate Press
Surround MaterialElastic Polymer
Cone MaterialAramid fiber reinforced IMPP
Diameter6" x 9"
SYSTEM
Nominal Impedance4 ohms
Maximum Peak Power Handling460 Watts
Continuous Power Handling (RMS)95 Watts
Frequency Range29 Hz to 49k Hz
Sound Pressure Level (Sensitivity)92 dB (+- 1.5dB)
System TypeCoaxial 2-way
