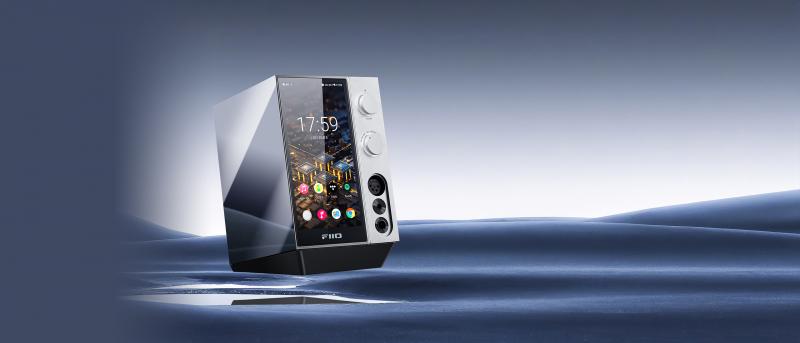

FiiO Flagship All-in-One Digital Media Streamer - R9

Flagship all-in-one digital media streamer

*Pictures are for reference only. The actual product may vary.

High-end 8-channel ES9038PRO*2 + 8-channel THX AAA 788+

7300mW power output | Fully-connected HiFi audio architecture

DC/AC dual power supply design | Separated analog and digital power supplies | Finely-divided analog portion | 6-inch FHD portrait display

Various inputs and outputs | Supports HDMI ARC/Roon Ready mode

FIIO R9 flagship debut

Flagship all-in-one digital media streamer R9

Integrates flagship-level transmission/decoding/headphone amp/jukebox/preamp functionality into one device

Equipped with an unimaginable level of inputs and outputs + ten operating modes

Featuring Android open OS + 6-inch FHD + Portrait screen

Using a classic metal bicolor design as in luxury cars

Thoroughly upgraded inside and out, to take your desktop HiFi

experience to the next level

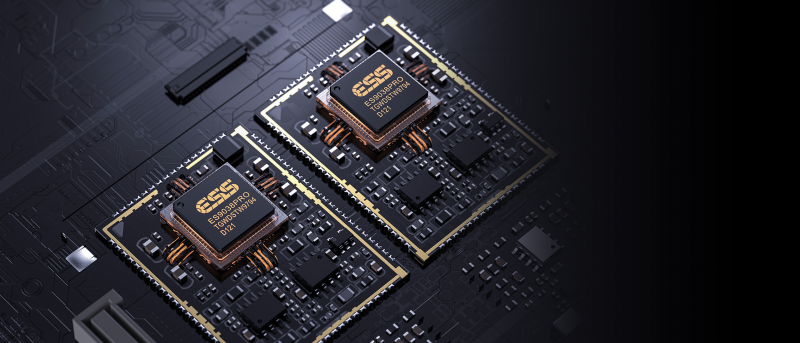

8-channel

ES9038PRO DAC*2

With the ES9038PRO having been featured in the M17, Q7, K9 Pro SS and M15S, we now have much experience with the chip to enable it to push audio quality to new heights.  The R9 employs two ES9038PRO DACs, one each for the left and right channels. Each DAC chip contains 8 independent D/A converters, and these 8 channels are connected in parallel for a fully differential output. The result is precise, clear yet full sound.

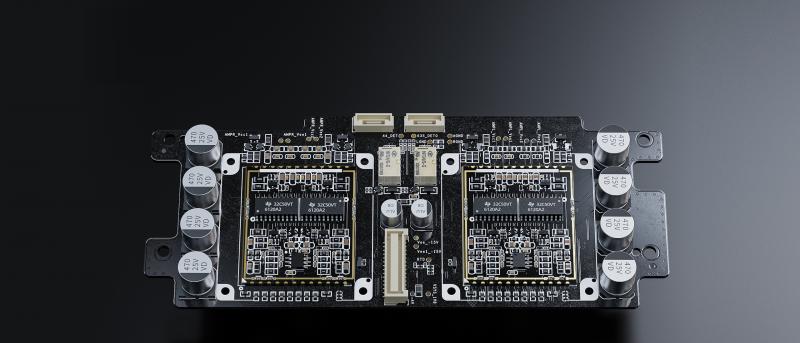

Next-gen THX AAA 788+ headphone amplifier

Inside the R9 is an 8-channel THX AAA 788+ headphone amplifier design. These headphone amps, fed by a high-voltage power supply, are connected in parallel via 2×2 groups for a four-way fully balanced design, greatly enhancing transient performance. The comb-shaped heat sinks and optimized circuit layout dissipate heat efficiently, ensuring the R9 is capable of continuous and stable high-power output. The result is that the R9 is capable of outputting 7300mW per channel at 32Ω, 102% higher than that of R7.

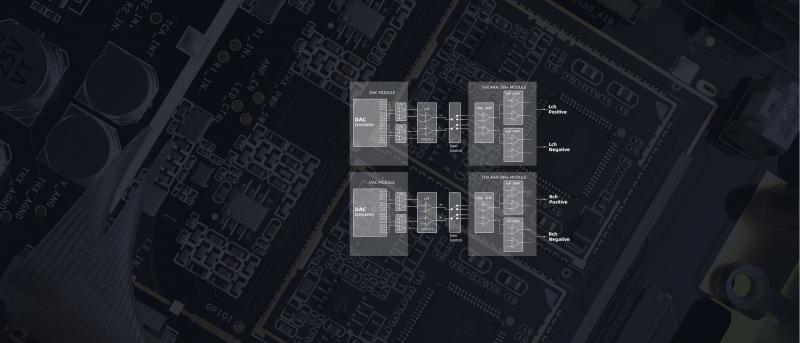

Fully-connected HiFi audio architecture

Five gain levels

The R9 boasts impressive audio performance thanks to its five-stage audio architecture with carefully-crafted IV, LPF, gain, pre-amplification, and current expansion stages. An important part of the audio circuit is the OPA2211 op-amps, which are made through the silicon-germanium (SiGe) CMOS manufacturing process that ensures the chip’s excellent performance. The variable gain and variable power supply voltage design result in 5 levels of gain, allowing you to exactly dial in your desired listening volume. No matter if you are using IEMs or hard-to-drive headphones, you will get a great listening experience.

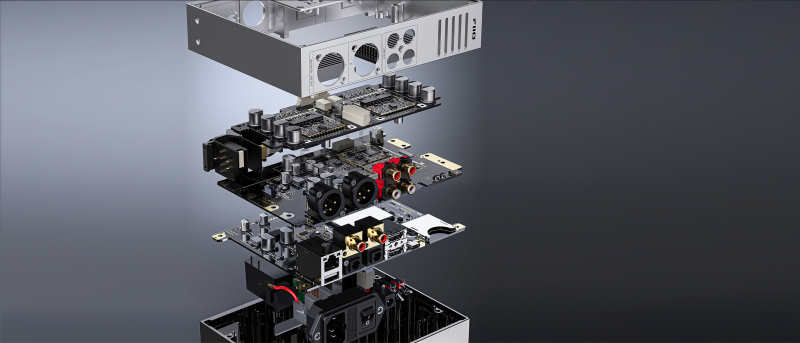

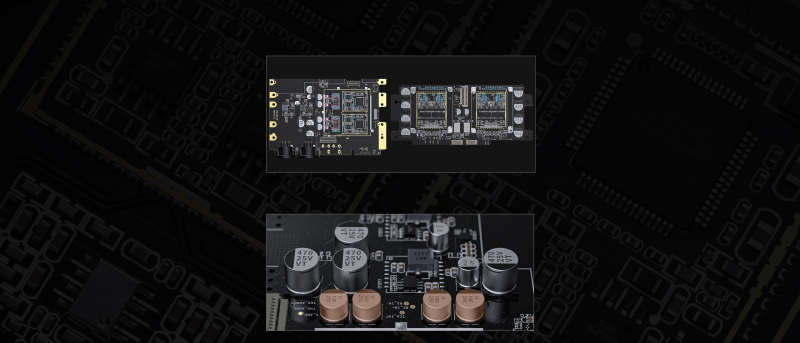

Carefully-designed PCB Every inch considered

The R9’s internal power supply, digital portions, DAC, and headphone amplifier all reside on separate boards. Additionally, there are metal shields to fully isolate the DAC and THX headphone amp sections. These four major parts of the audio circuit are separated into independent boards to avoid crosstalk, which further ensures that the audio signals being processed and their output are accurate, clean, and retain their dynamics.

Finely tuned power supply circuit

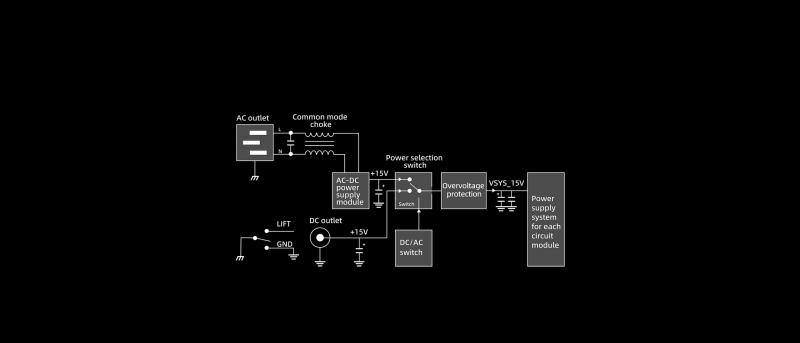

DC/AC dual power supplies

Built into the R9 is a new 40W low-noise, high-efficiency, long-lasting industrial-grade power supply, supporting an ultra-wide range of input voltages (85~305VAC) and capable of operating under a wide range of temperatures (-40℃~85℃) as well as rated for lasting 500,000 hours. The R9 can also be powered by an external DC power supply*, allowing you to pair the R9 with a high-performance linear power supply that offers its own sound. Additionally, when the R9 is paired with an external AC power supply, you can choose to enable the “Ground Lift” functionality to reduce crosstalk for purer sound.

*15V-3A external DC power supplies are supported

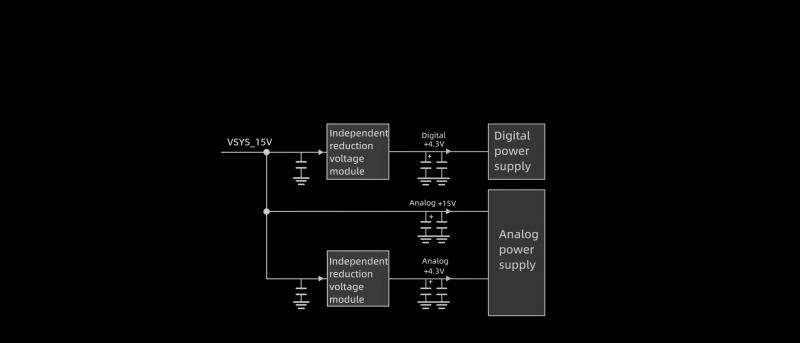

Separate analog and digital power supplies

The R9 features separate power supplies for the digital and analog portions of the audio circuit, avoiding crosstalk between the digital/analog parts and achieving better isolation and shielding between the two portions.

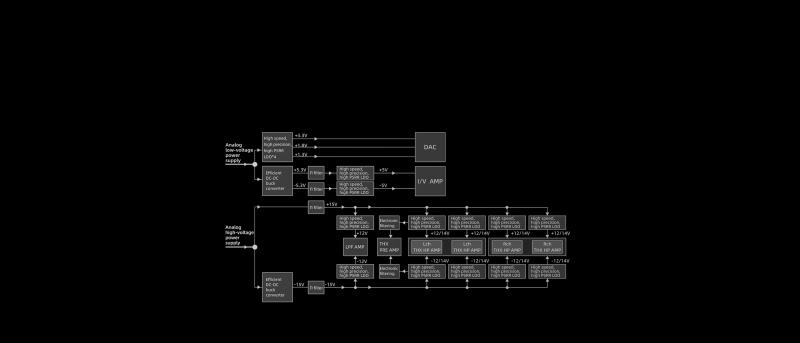

Finely-divided analog portion

The analog portion of the audio circuit features a finely-divided multiple-stage power supply, including digital-to-analog conversion, LPF, pre-stage processing, amplification drive and other power supply stages. Each power supply stage uses many precision LDOs for secondary voltage stabilization, further ensuring a clean and stable supply of power.

Industry-leading components

12 wide operating temperature low-loss metallized film capacitors + 70 high-precision low-noise film resistors

ELNA electrolytic capacitors

Low temperature drift and low noise regardless of temperature variations, ensure stable high-quality sound no matter in hot or cold environments

For improved soundstage and better overall sound quality

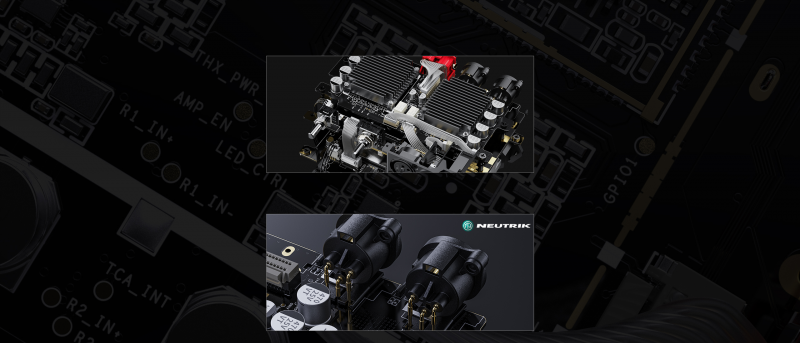

5 sets of connecting silver-plated oxygen-free copper wires

Neutrik gold-plated plug

Silver-plated oxygen-free copper wires are used to connect the various boards, ensuring high-fidelity signal transmission with minimal loss

Tulip-shaped design with anti-oxidation properties and is durable over many unplugs – allowing for reliable and stable connections

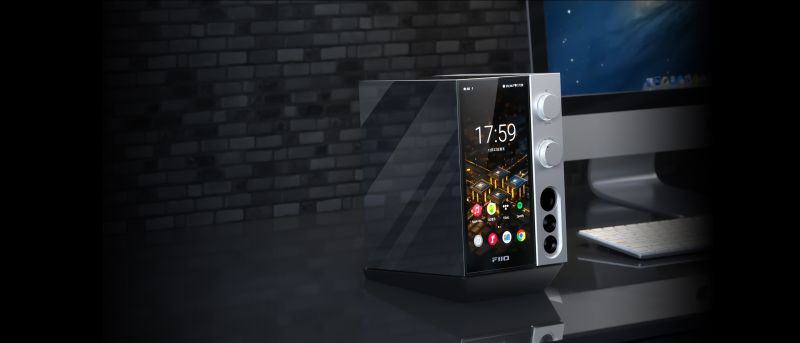

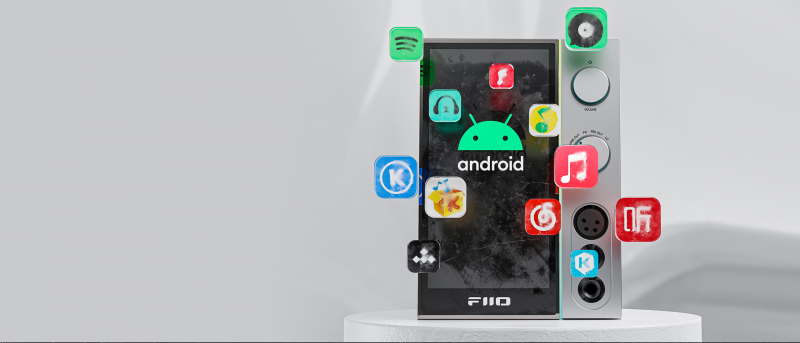

Large 6-inch HD screen

Taking your experience to new “heights”

The R9 features a tall 6-inch 2160*1080 vertical (portrait) screen combined with the open Android OS for a thoroughly intuitive experience. The open Android OS not only allows the user to freely install and use third-party streaming music and other apps, it is also thoroughly refined so that the user does not have to worry about app compatibility problems.

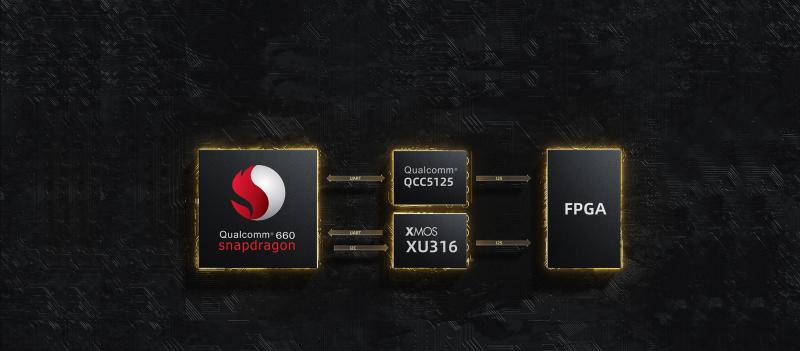

High-end digital core

Globally high resolution

Modular design Three synergistic components

Not only does the analog portion of the R9 come with a fully-connected HiFi audio architecture, but the digital signal processing also reaches the global HD level.

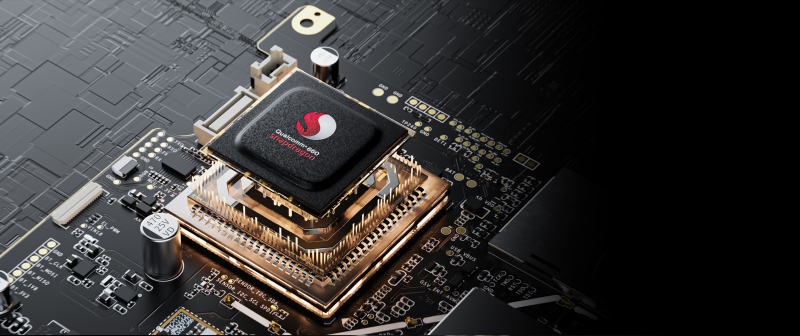

Qualcomm

Snapdragon 660

 With several years’ worth of experience in fine-tuning this “core” combined with the open Android system, FIIO offers a silky-smooth experience on the R9.

*FIIO is planning to upgrade the OS to Android 12 in Q1 2024

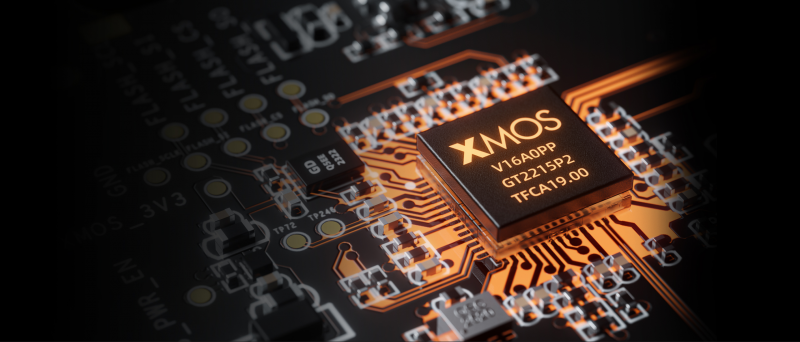

XMOS 16 core XU316

High performance, low latency, supports 768kHz/32bit and DSD512

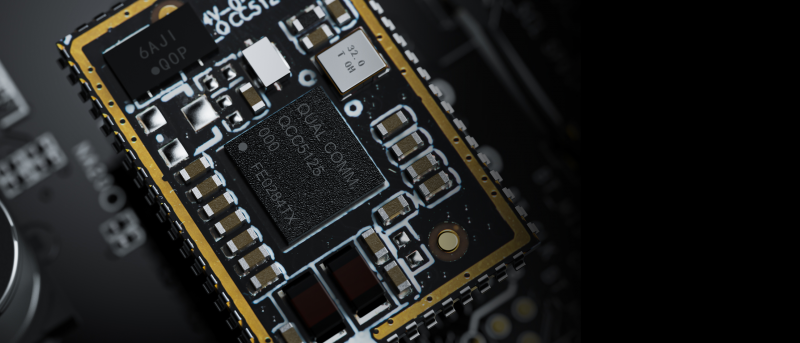

Qualcomm QCC5125

Many codecs supported, Bluetooth reception supports LDAC/aptX Adaptive/aptX LL/aptX HD/aptX/AAC/SBC

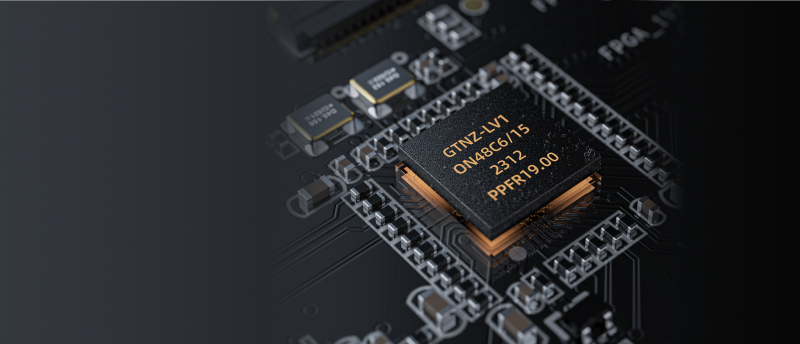

4th-gen phase-locked loop FPGA + dual low phase noise femtosecond crystal oscillators

The high-precision, low-jitter unified clock ensures a purer and more stable audio signal chain.

HDMI IN/OUT/ARC modes

For an exhilarating audiovisual experience

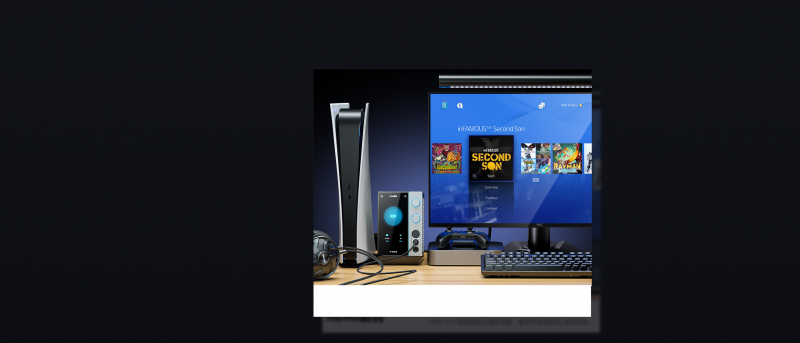

HDMI Decoding

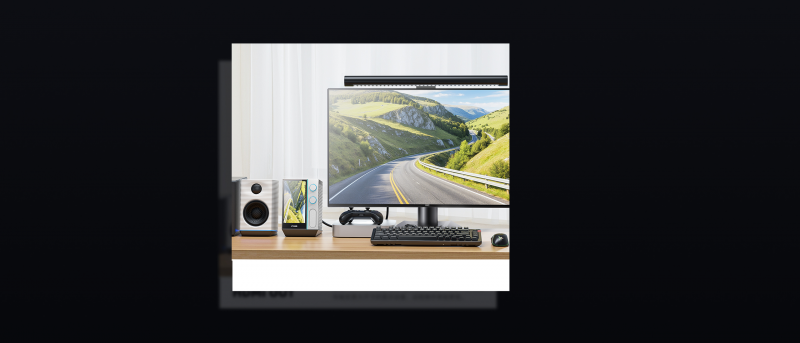

HDMI IN

Connect to computers/game consoles/Blu-ray machines and other devices through HDMI IN, and also connect to monitors and other devices through HDMI OUT to enjoy dual high-definition video/game experience.

Connect to computers/game consoles/Blu-ray players and other devices through HDMI IN, and connect to monitors and other similar devices through HDMI OUT for a high-resolution audio and high-definition visual experience.

HDMI OUT

Connect to an external TV/monitor through HDMI OUT for a better remote-control experience on a larger screen.

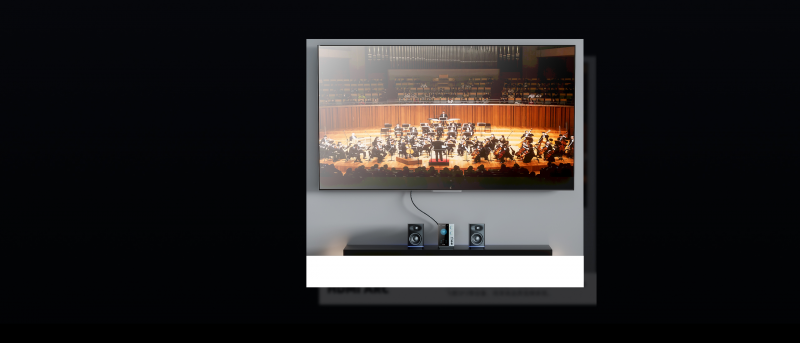

HDMI ARC

Allows you to connect devices such as TVs and Blu-ray players, and then connect to the FIIO SP3 and other similar sound equipment through the RCA or XLR outputs for high-quality audio.

The unimaginable, sheer number of inputs and outputs allow the R9 to become the new center of your desktop HiFi setup.

All kinds of connectors

Almighty HiFi audiovisual

center

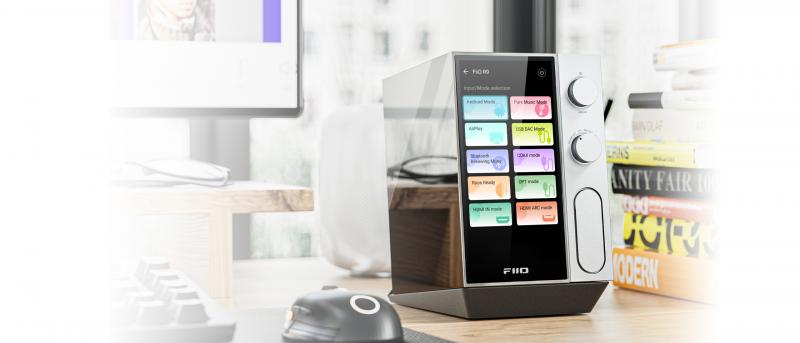

Ten operating modes

Ten out of ten experience

Android mode:

pure tone mode:

USB DAC mode:

Bluetooth receiver mode:

AirPlay mode:

Roon Ready mode:

Coaxial/optical input modes:

HDMI input mode:

HDMI ARC Mode:

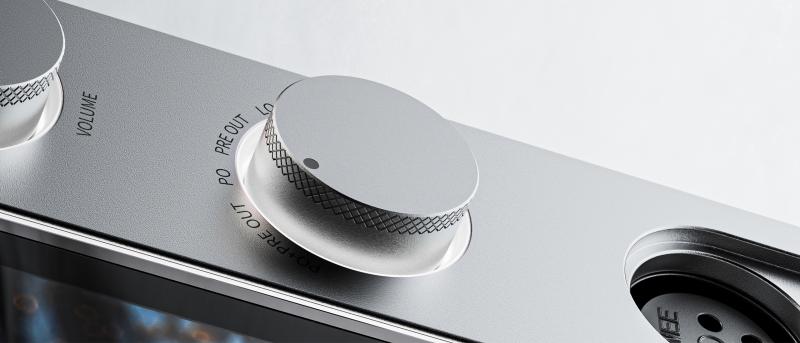

Four output modes

All within reach of one knob

PO+PRE OUT (default setting):

PO:

PRE OUT:

LO:

Let the R9 become the center of your HiFi desktop setup, connecting to both headphones and speakers simultaneously. You can seamlessly switch between headphones for speaker outputs with just a twist of a knob, making it more convenient for you to listen to whichever is more comfortable.

Classic metallic bicolor scheme as in luxury cars Befitting of a flagship

The R9 adopts a unique metallic dual color scheme inspired by luxury cars, presenting an extraordinary flagship texture. The body-colored 4H PET is attached to its body as a protective layer that also helps to prevent fingerprints and scratches from building up on it. Additionally, the high-density metal body is more robust and stable, helping to effectively reduce deformation and minimize degradation in sound performance caused by vibrations, thus ensuring stable delivery of high-quality music.

More ways to control

More convenience

App control

Supports operating mode selection, volume adjustment, track selection and other functions all from your smartphone, and can also be controlled by third-party apps

Bluetooth remote RM3

Allows control over music playback from a distance through buttons and gestures, even for complex operations

Paired with multimedia

keypad KB1K

Pause and play music as well as switch between tracks, conveniently on your desk

Inside and out

All thoroughly upgraded

Digital jukebox

Serious preamp

DLNA/Airplay streaming + NAS LAN playback

Can be connected to external audio sources through optical/

coaxial/USB outputs

RCA+XLR balanced line outs, can be connected to multiple external amplifiers or active speakers simultaneously

Wireless streaming and LAN playback, two ways to listen

High-end decoder

Dual USB ports

3 Volume Curves

Supports optical/coaxial/USB/HDMI inputs, transforming it into a high-end audio decoder

Can be connected to USB hubs/portable drives/external audio decoders/keyboard and other devices

*The USB port can provide up to 1.5A output current

Suitable for various types of headphones from IEMs to hard-to-drive headphones

Overheating/over-voltage/

DC intelligent protection

Personalized screensaver

The device can intelligently detect abnormal operating conditions and automatically take action to avoid damage to the device itself and the connected headphones, allowing you to listen worry-free.

Analog clock, performance panel, space FIIO goat, digital clock

Dynamic light bar + dynamic RGB lights on knobs

5G+2.4G dual-band Wi-Fi

Independent 100 Mbps Ethernet port

The lights are an eye-catching part of your desktop, and can be set to custom lighting effects

Faster and more stable data transfers

Enjoy a fast and stable audiovisual experience

Included two stands with different elevation angles

Discreet WiFi/Bluetooth antenna

Included full dust cover + XLR, RCA dust cover plugs

Better suited for various usage needs

Simple and elegant, unobtrusive

Protection is as important as audio and visual experience

Side honeycomb heat dissipation vents + rear heat dissipation grille

A highly effective heat dissipation design that is eye-catching

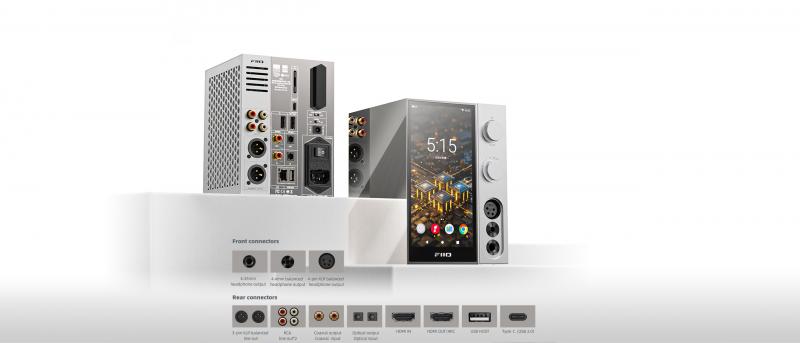

① 4-pin XLR output

② 4.4mm balanced headphone output

③ 6.35mm headphone output

④ RCA line out*2

⑤ 3-pin XLR balanced line out

⑥ Coaxial output

⑦ Coaxial intput

⑧ Optical output

⑨ Optical intput

⑩ RJ45 Ethernet port

⑪ USB HOST

⑫ Type-C（USB 3.0）

⑬ HDMI IN

⑭ HDMI OUT/ARC

⑮ Micro-SD card slot

⑯ GND switch

⑰ AC/DC power switch

⑱ DC power input

⑲ AC power input

⑳ AC power switch

㉑ WiFi/Bluetooth antenna

Quality accessories

①--------AC power cord*1

②--------Base*2

③--------Silicone double-sided tape*4

④--------RM3 Bluetooth remote*1

⑤--------Quick start guide*1

⑥--------RM3 tips card*1

⑦--------MicroSD card holder*1 (pre-installed)

⑧--------USB cable*1

⑨--------Headphone adapter*1

⑩--------Warranty card*1

⑪--------Cleaning cloth*1

⑫--------Dust cover plug*1

⑬--------Fuse*1

⑭--------PET electroplated film*2 (pre-installed)

⑮--------Tempered film*1 (pre-installed)
